Keyless Entry Receiver: Service and Repair

KEYLESS RECEIVER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear scuff plate (LH) Rear Scuff Plate Removal/Installation

b. Sub-trunk Sub-Trunk Removal/Installation

c. Trunk end trim Trunk End Trim Removal/Installation

d. Third-row seat Rear - Third-Row Seat Removal/Installation

e. Third-row seat belt lower anchor installation bolt (LH) Third-Row Seat Belt Removal/Installation

f. Trunk side trim (LH)

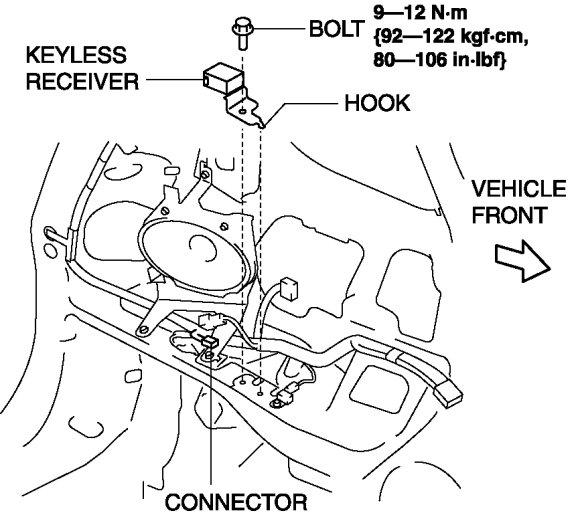

3. Remove the bolt.






4. Disconnect the connector.

5. Remove the keyless receiver.

6. Install in the reverse order of removal.
