Outer Mirror Glass Installation





OUTER MIRROR GLASS INSTALLATION

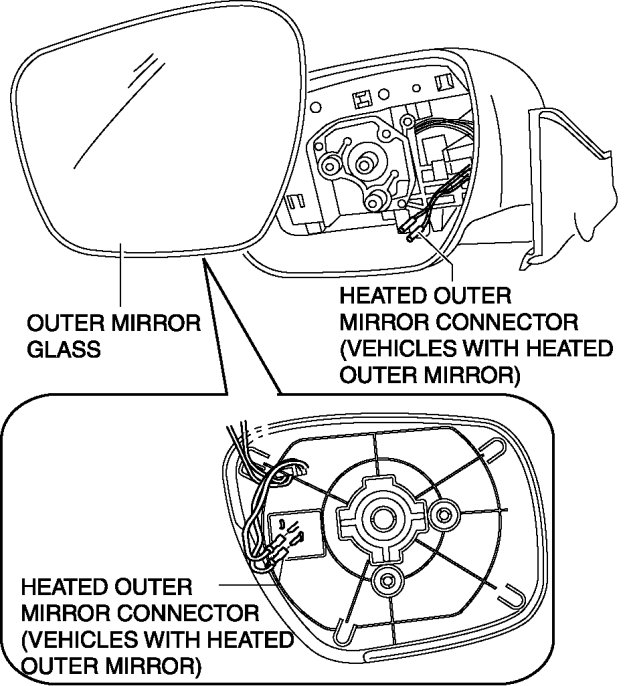

1. Connect the heated outer mirror connector (vehicles with heated outer mirror).

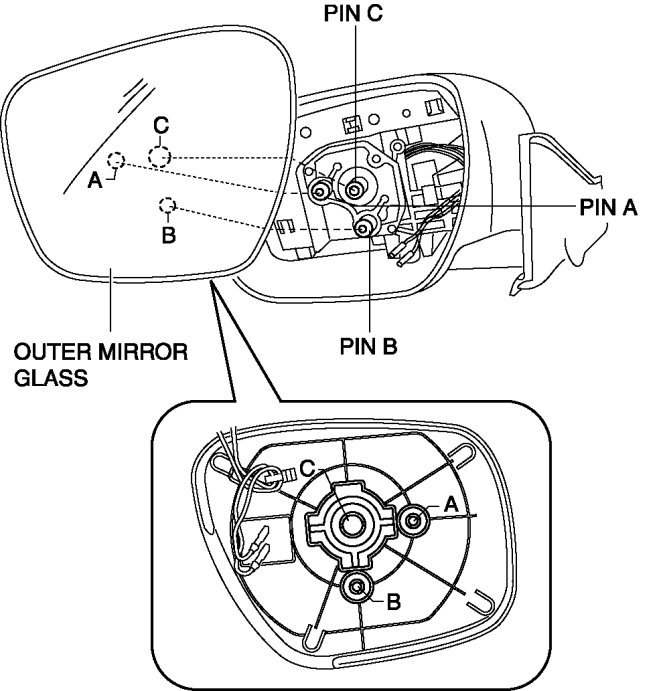

2. Press part C on the outer mirror glass and install pin C.






3. Press part A on the outer mirror glass and install pin A.

4. Press part B on the outer mirror glass and install pins B.

5. Connect the negative battery cable.
