Power Outer Mirror Removal/Installation

POWER OUTER MIRROR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the inner garnish. Inner Garnish Removal/Installation

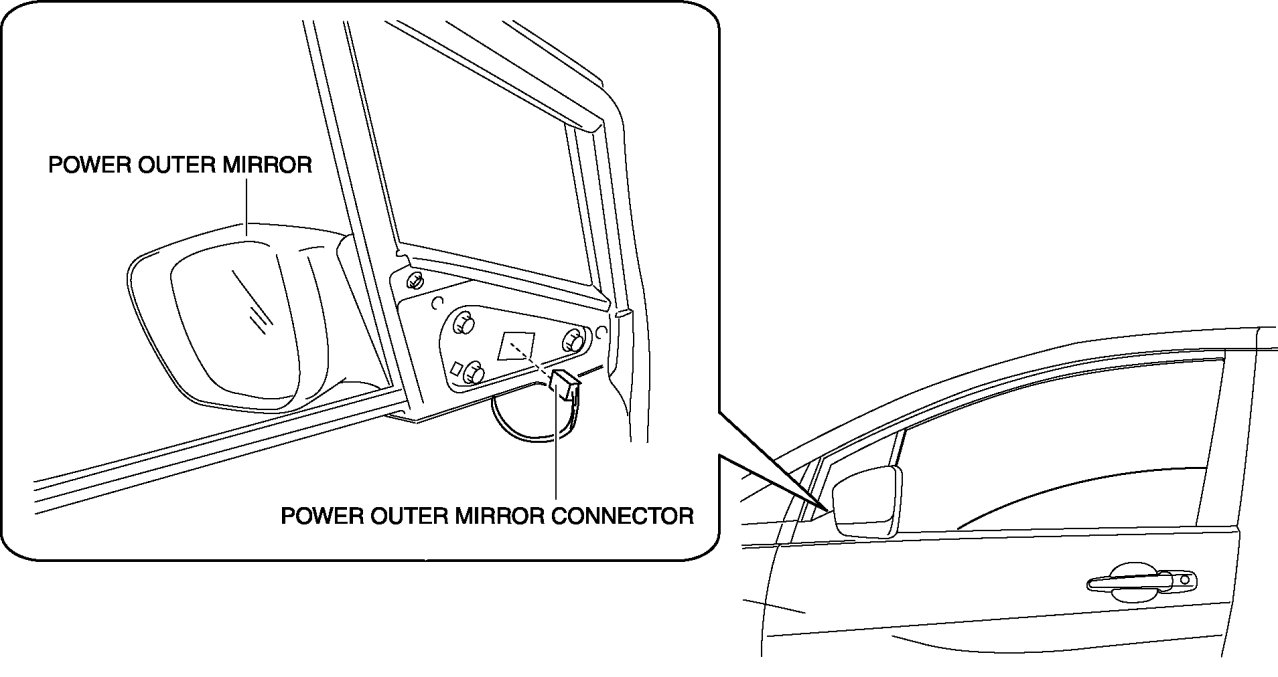

3. Disconnect the power outer mirror connector.

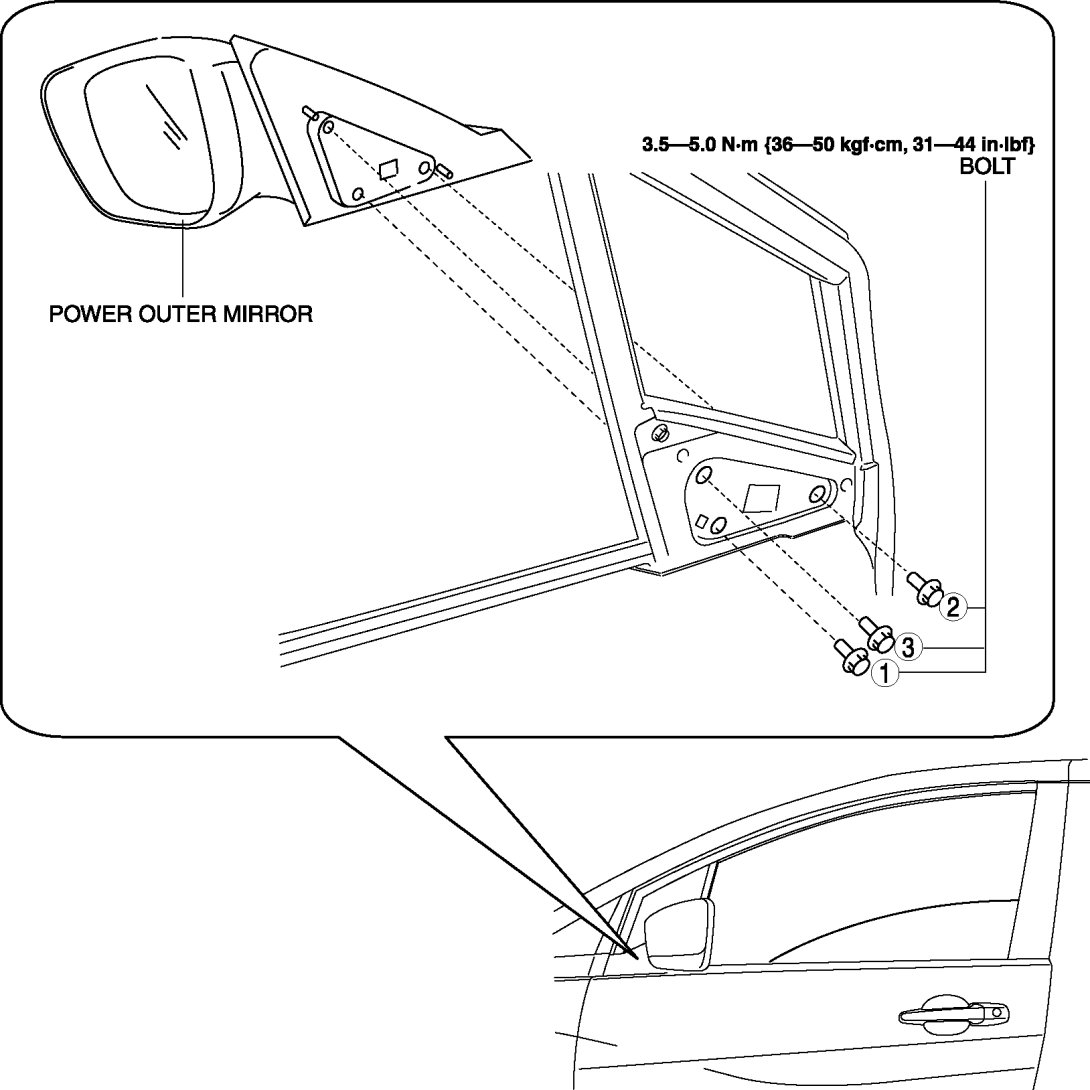

4. Remove the bolts in the order shown in the figure.






CAUTION:
- Always install the bolts in the reverse order of removal.

5. Remove the power outer mirror.

6. Install in the reverse order of removal.
