Cruise Control Switch: Testing and Inspection

CRUISE CONTROL SWITCH INSPECTION [MZR 2.5]

Standard Deployment Control System

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable and wait for 1 min or more.

3. Remove the driver-side air bag module. Standard Deployment Control System

4. Disconnect the clock spring connector (part wiring harness-side).

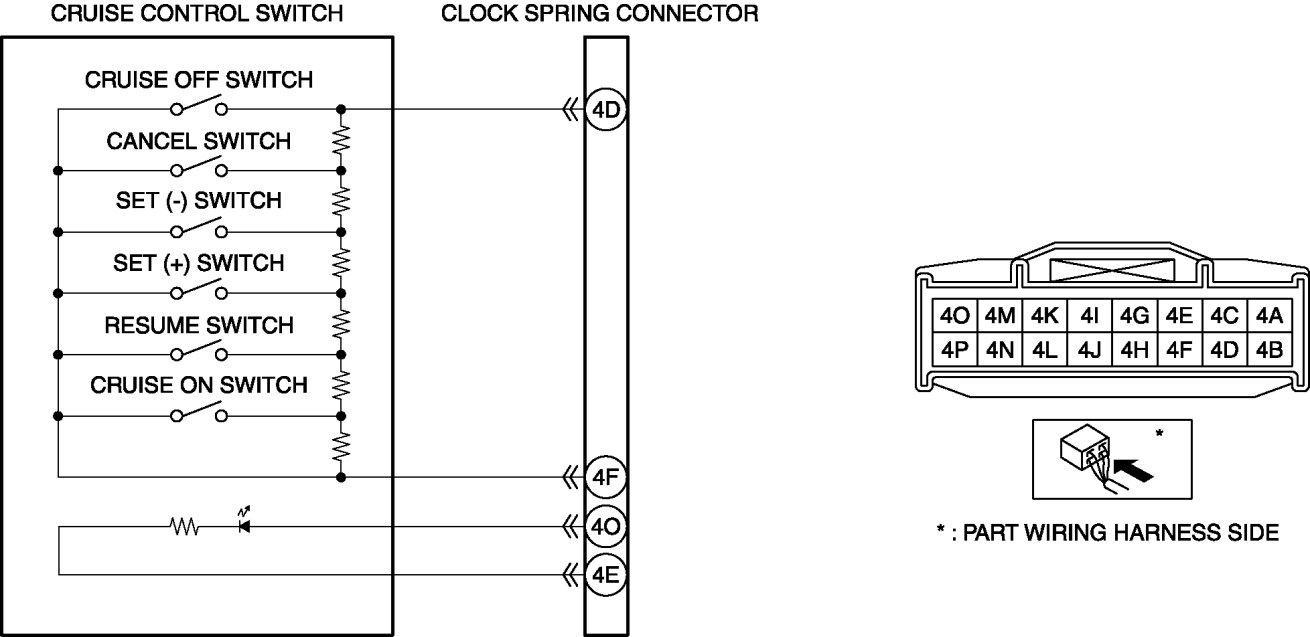

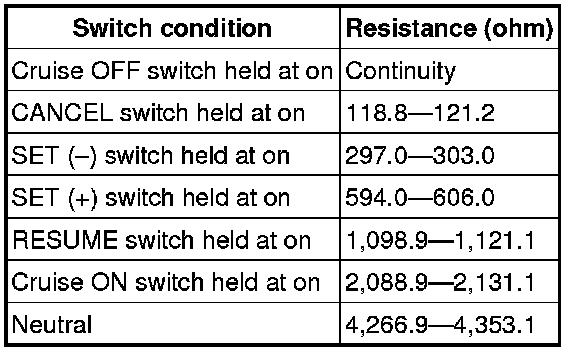

5. Inspect for resistance and continuity between clock spring connector terminals 4D and 4F (part wiring harness-side) using a tester.






- If not as specified, replace the steering switch. Service and Repair

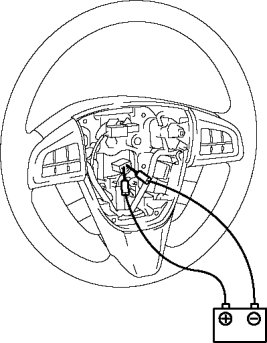

6. Apply battery positive voltage to clock spring terminal 4O (part wiring harness-side) and terminal 4E (part wiring harness-side) to ground.






7. Verify that the LED illuminates.

- If the LED does not illuminate, replace the steering switch. Service and Repair

Two-step Deployment Control System

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable and wait for 1 min or more.

3. Remove the driver-side air bag module. Two-Step Deployment Control System

4. Disconnect the clock spring connector (part wiring harness-side).

5. Inspect for resistance and continuity between clock spring connector terminals 5D and 5F (part wiring harness-side) using a tester.






- If not as specified, replace the steering switch. Service and Repair





6. Apply battery positive voltage to clock spring terminal 5O (part wiring harness-side) and terminal 5E (part wiring harness-side) to ground.






7. Verify that the LED illuminates.

- If the LED does not illuminate, replace the steering switch. Service and Repair
