Power Locks

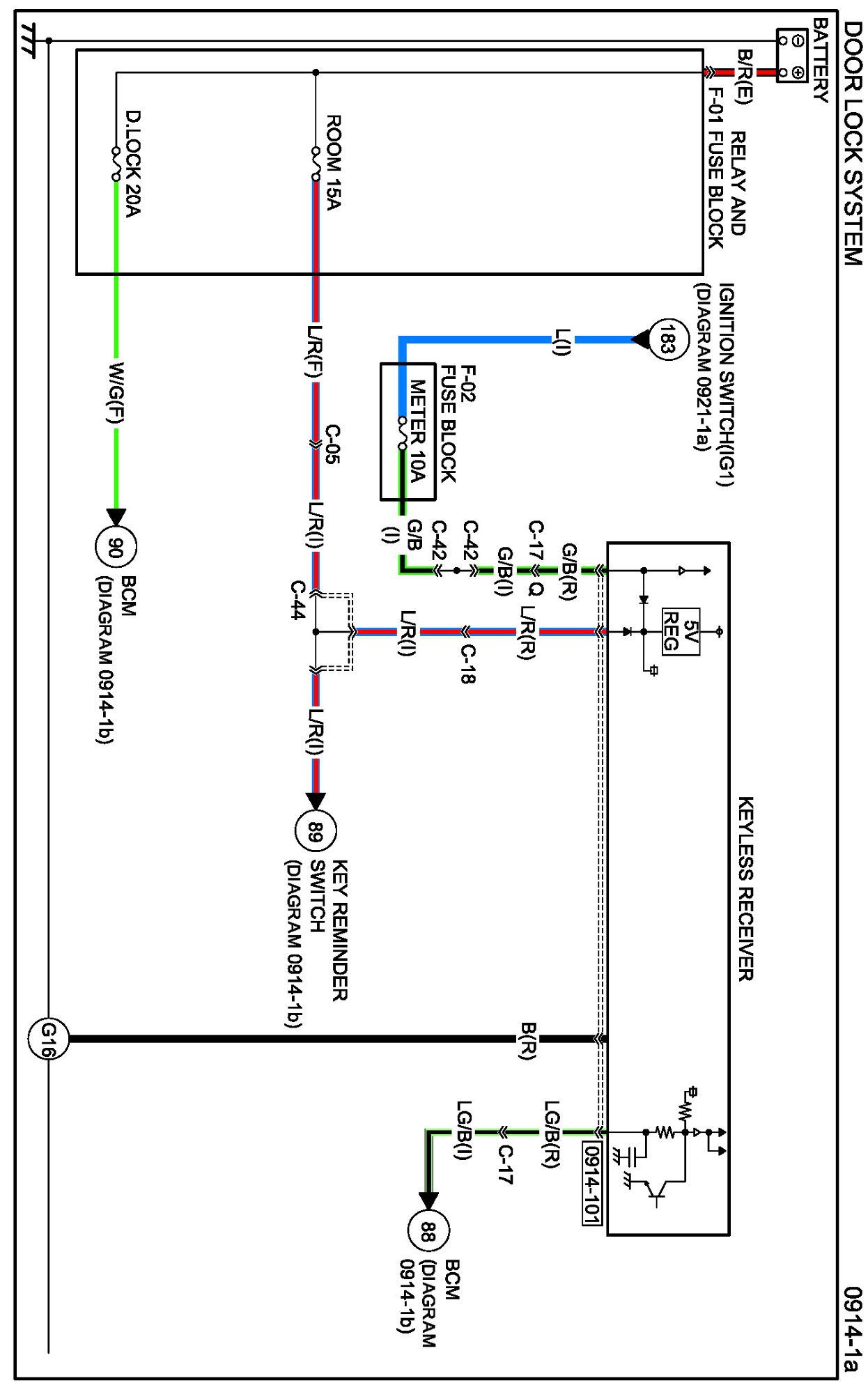

Diagram 0914-1a:

Connectors 0914-1a:

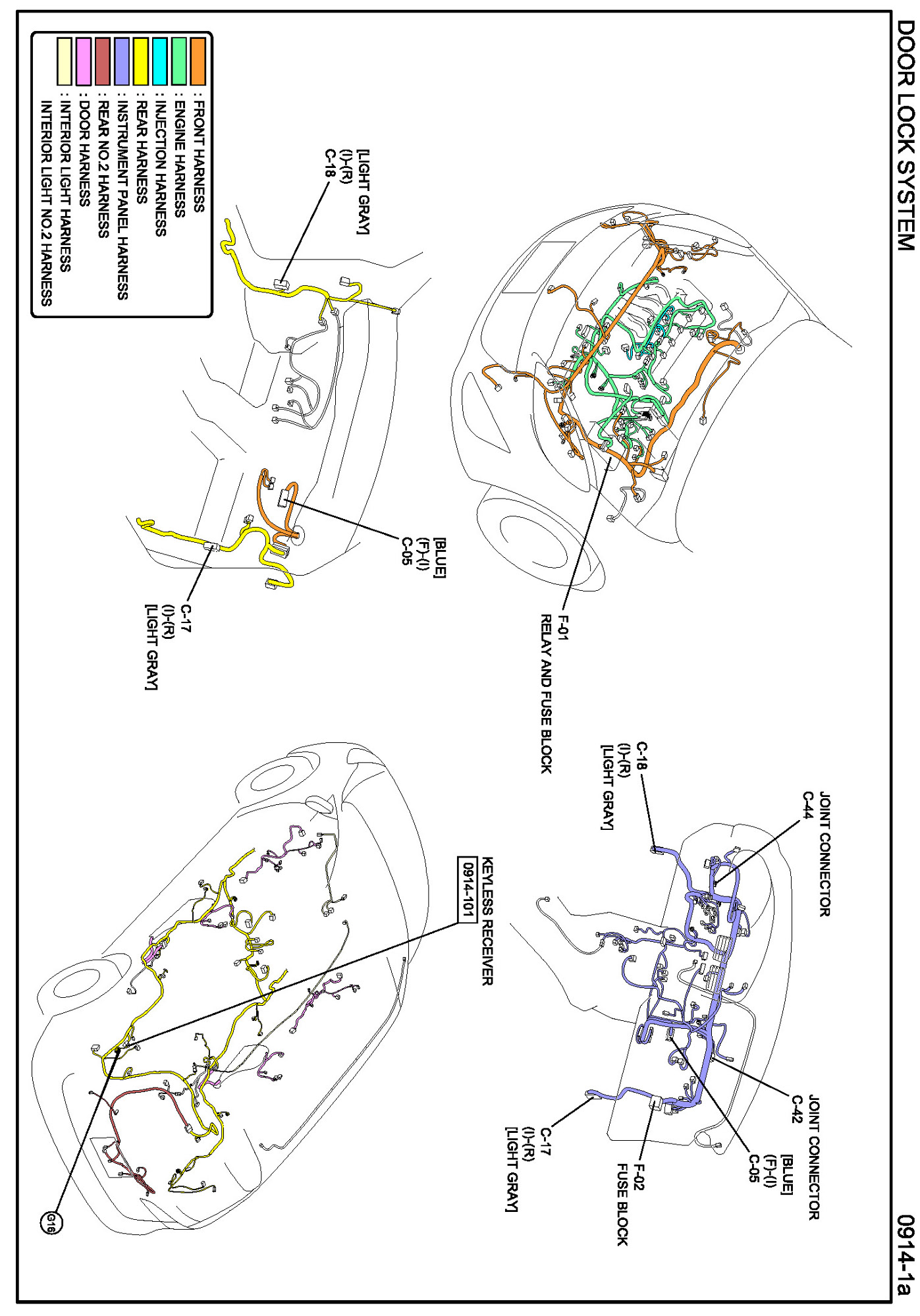

Routing View 0914-1a:

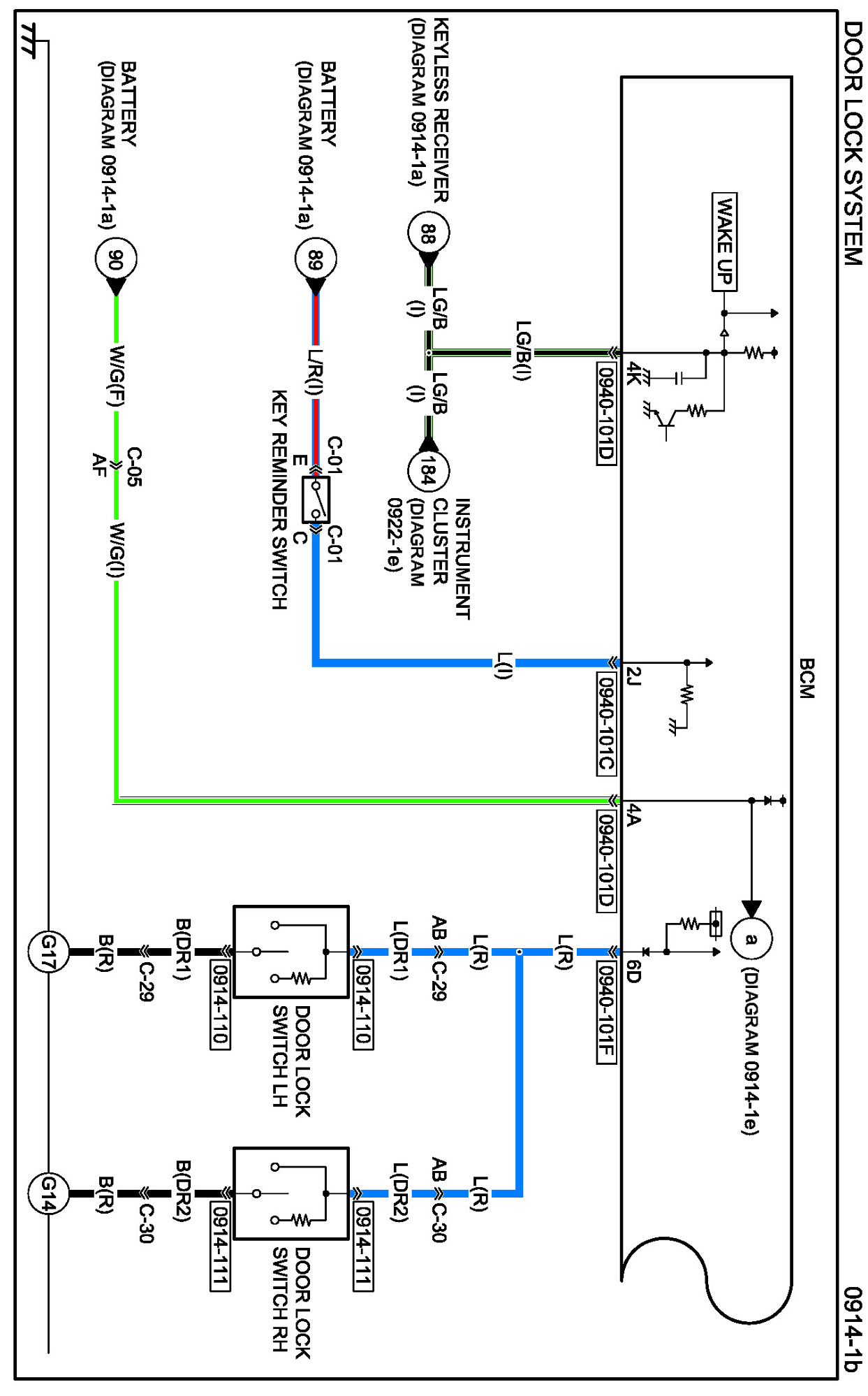

Diagram 0914-1b:

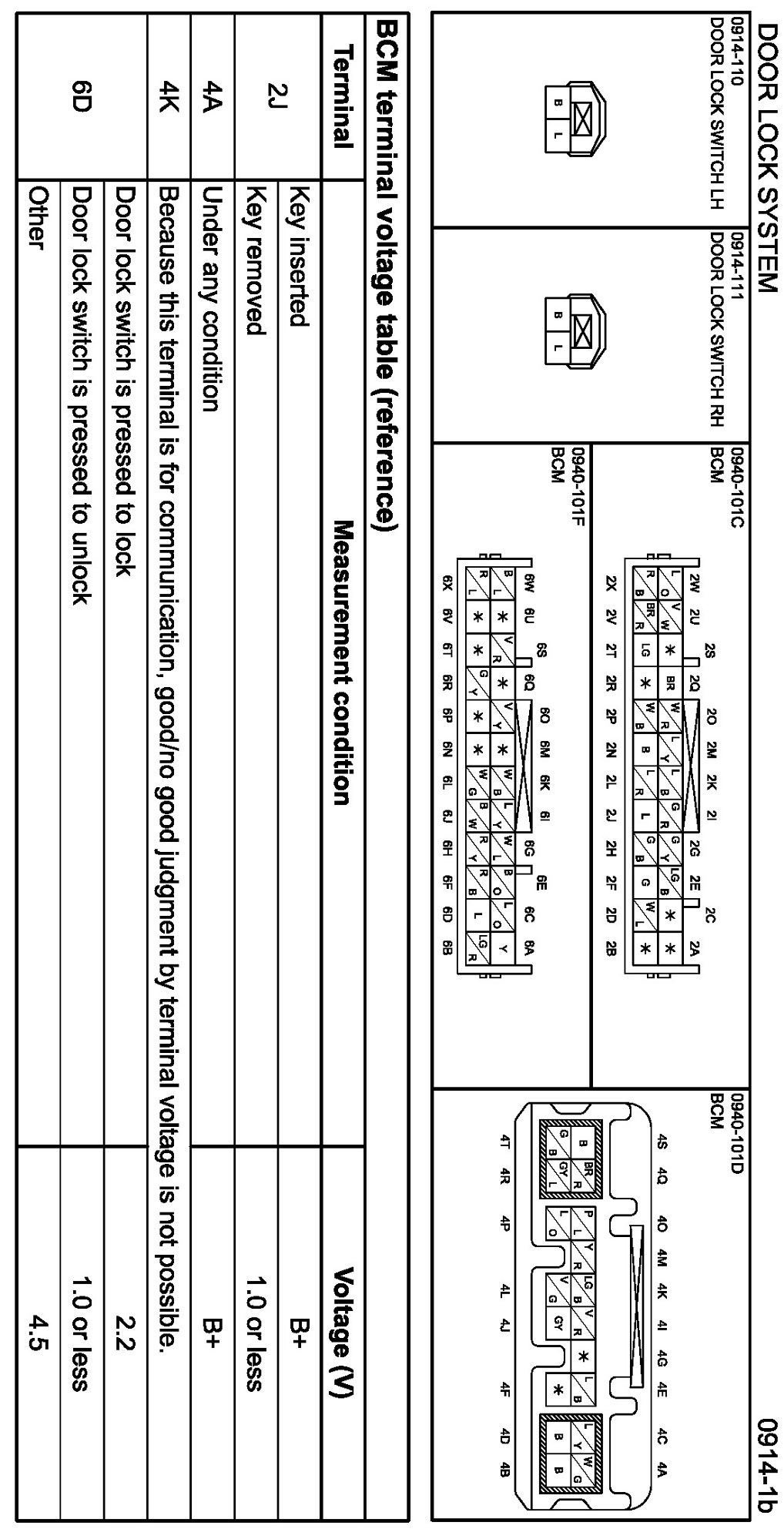

Connectors 0914-1b:

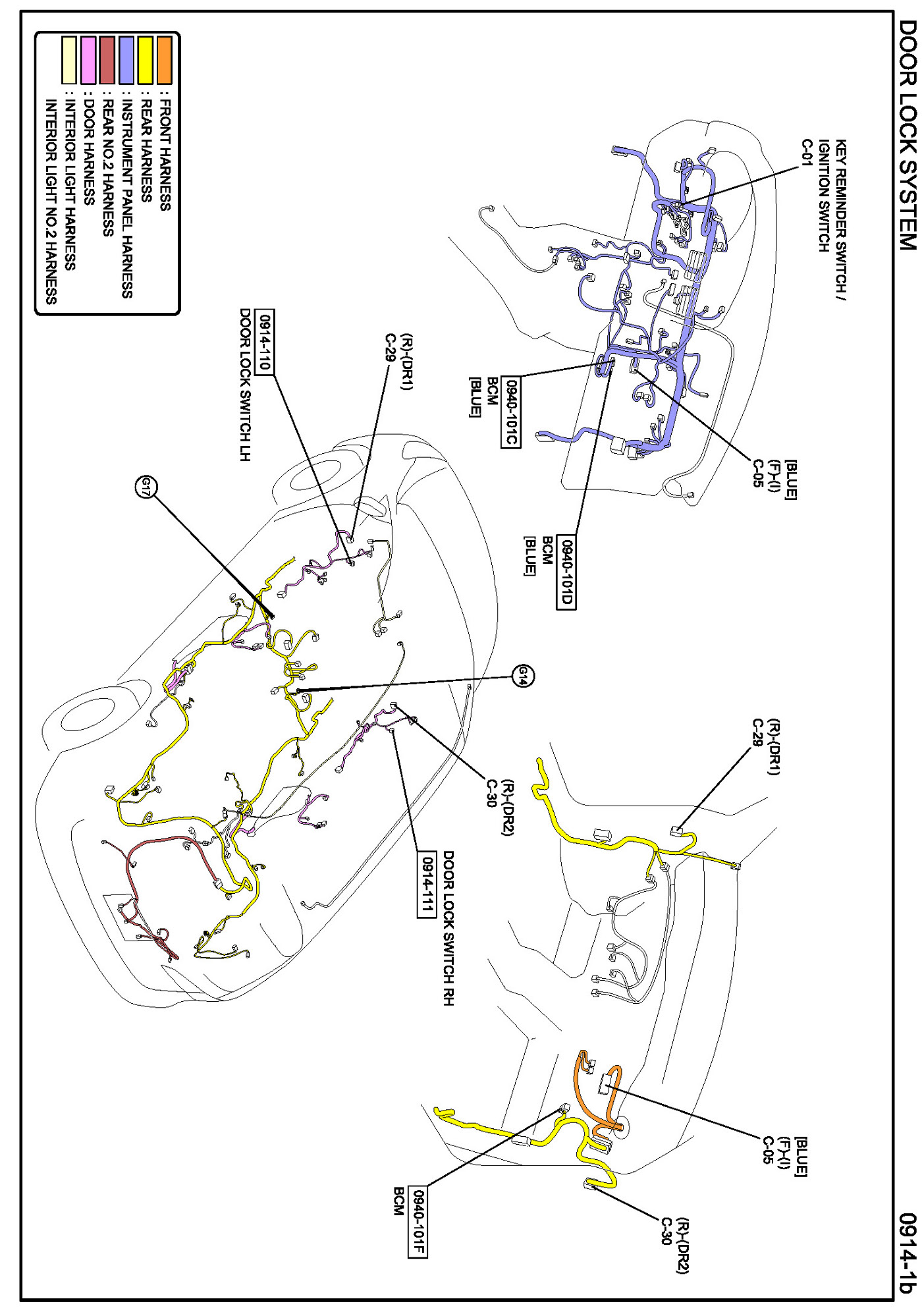

Routing View 0914-1b:

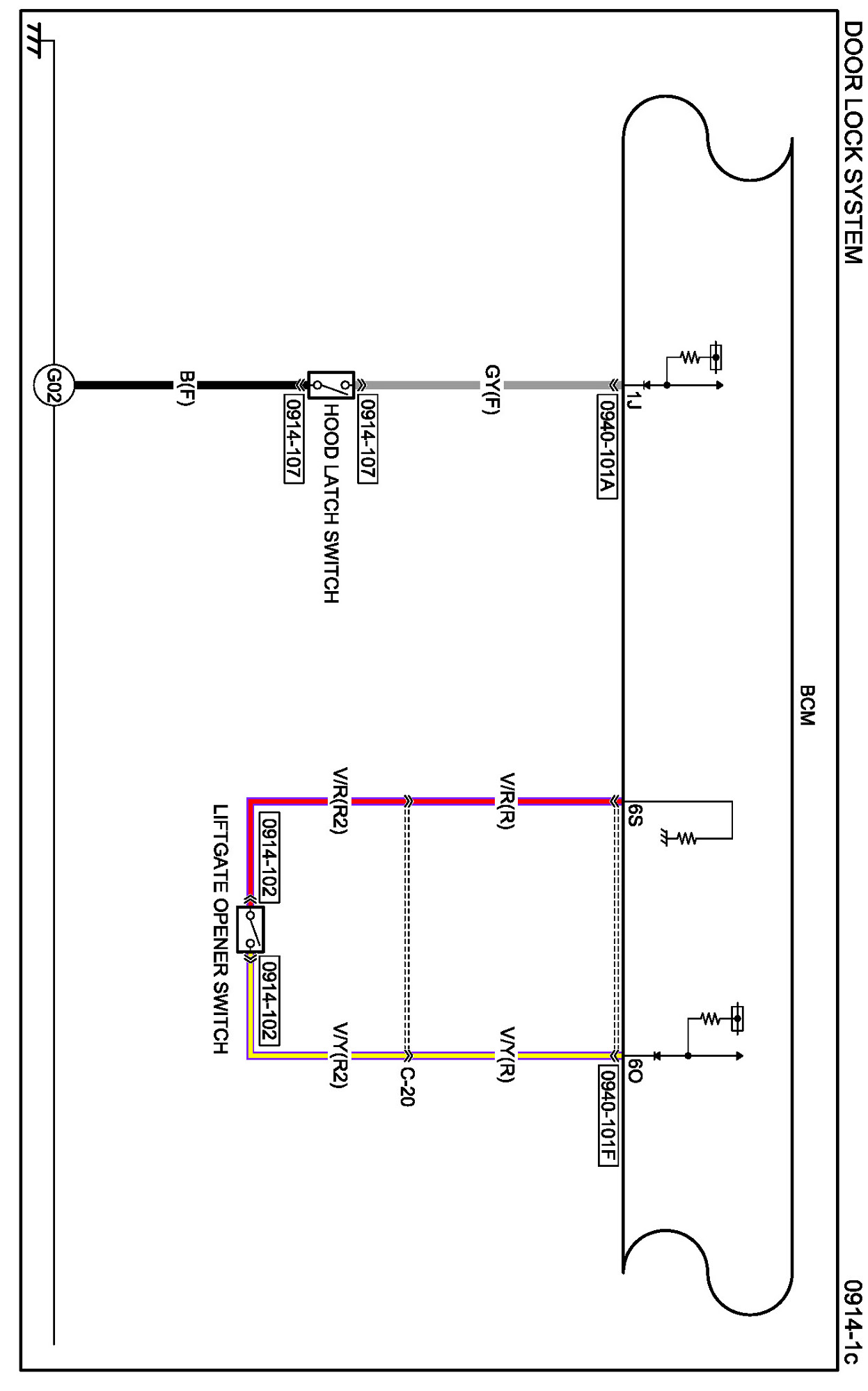

Diagram 0914-1c:

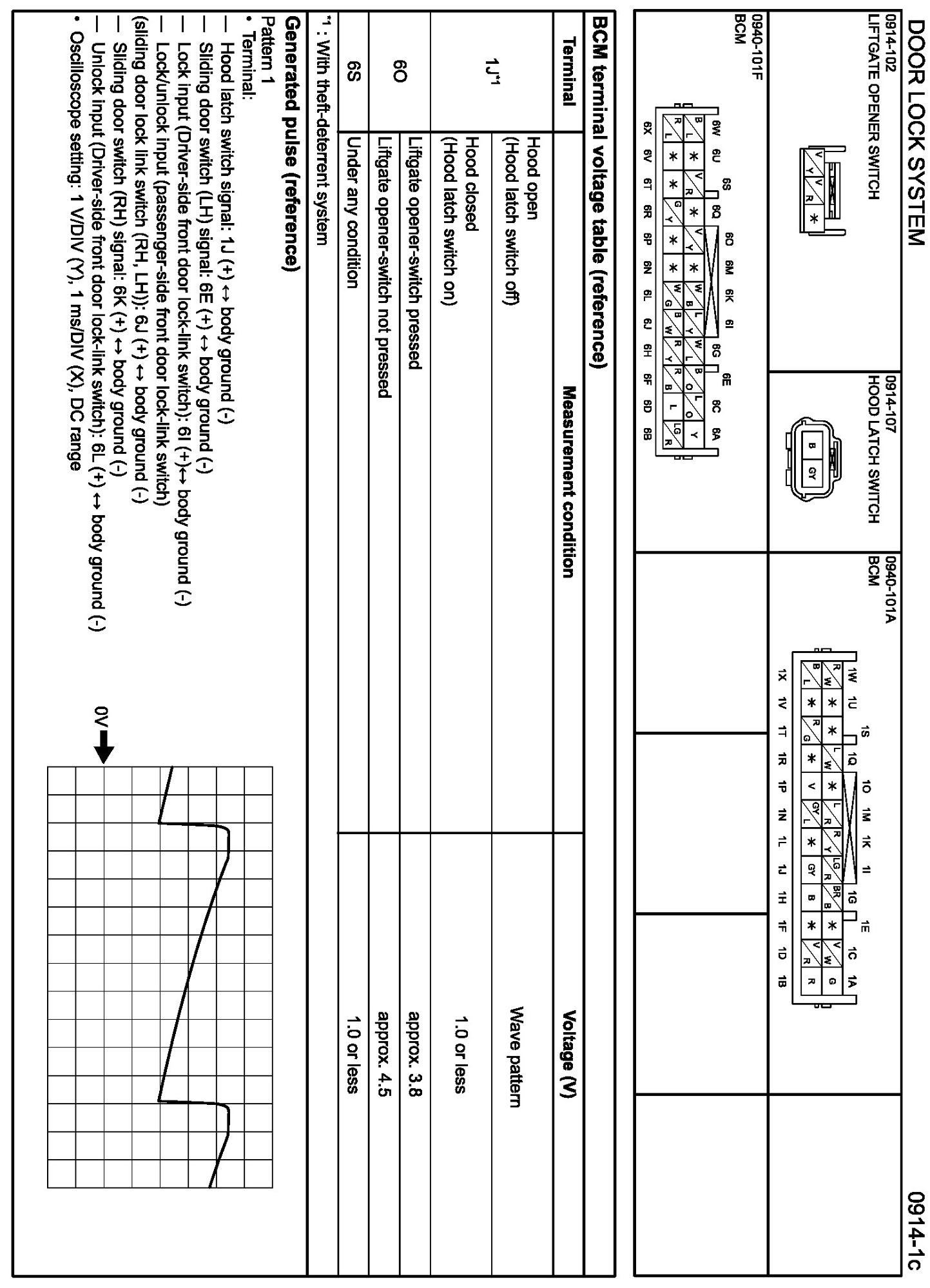

Connectors 0914-1c:

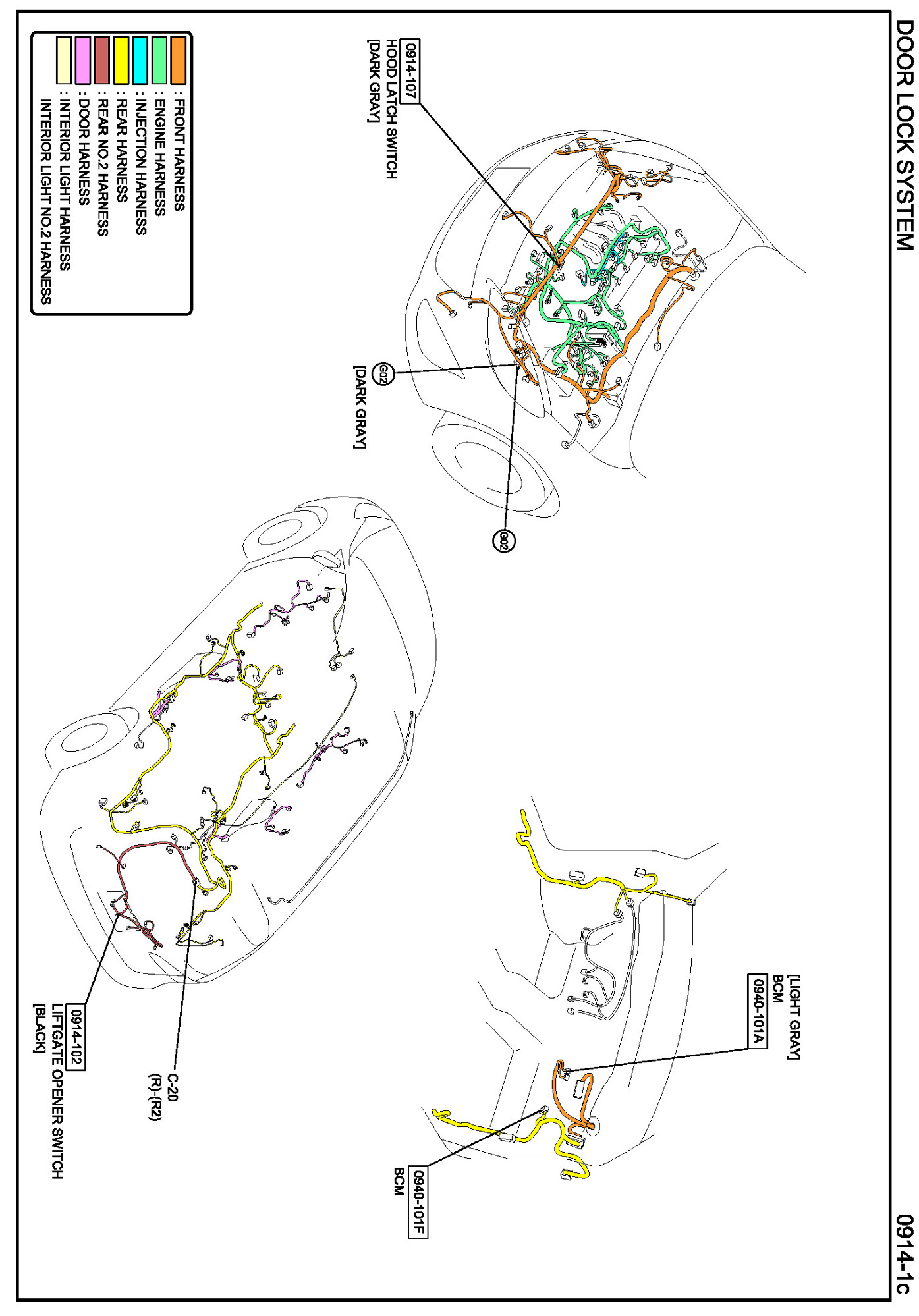

Routing View 0914-1c:

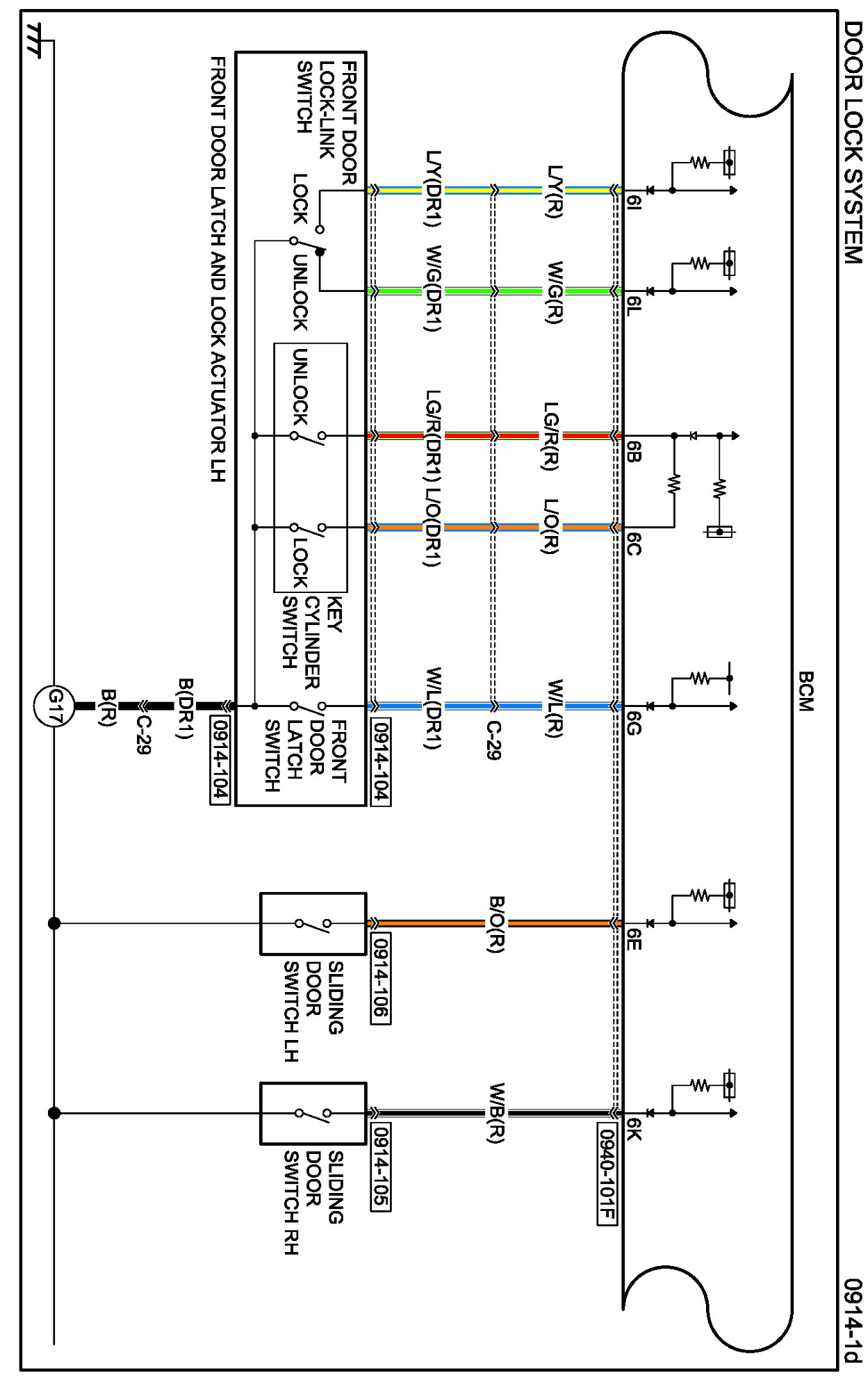

Diagram 0914-1d:

Connectors 0914-1d:

Routing View 0914-1d:

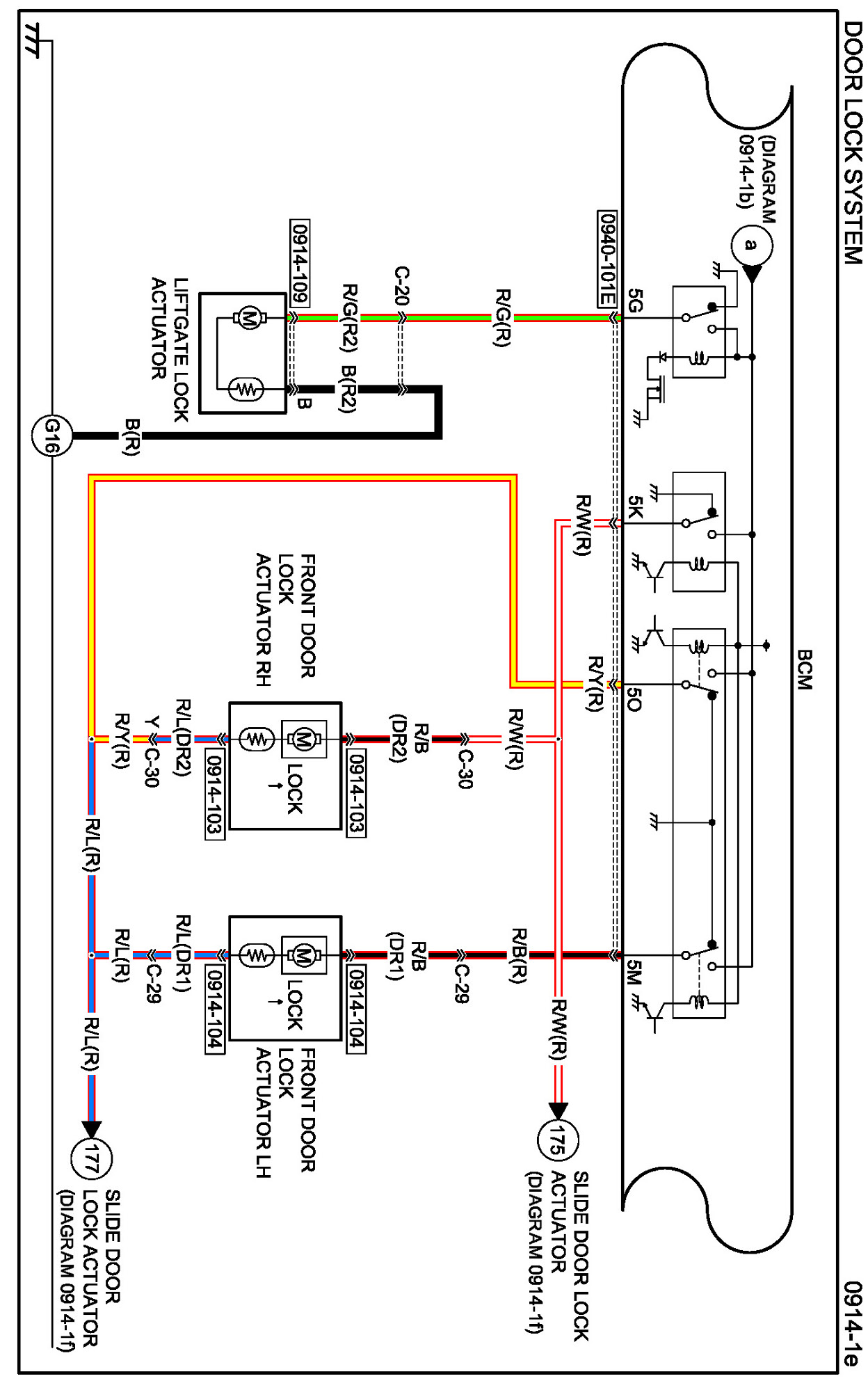

Diagram 0914-1e:

Connectors 0914-1e:

Routing View 0914-1e:

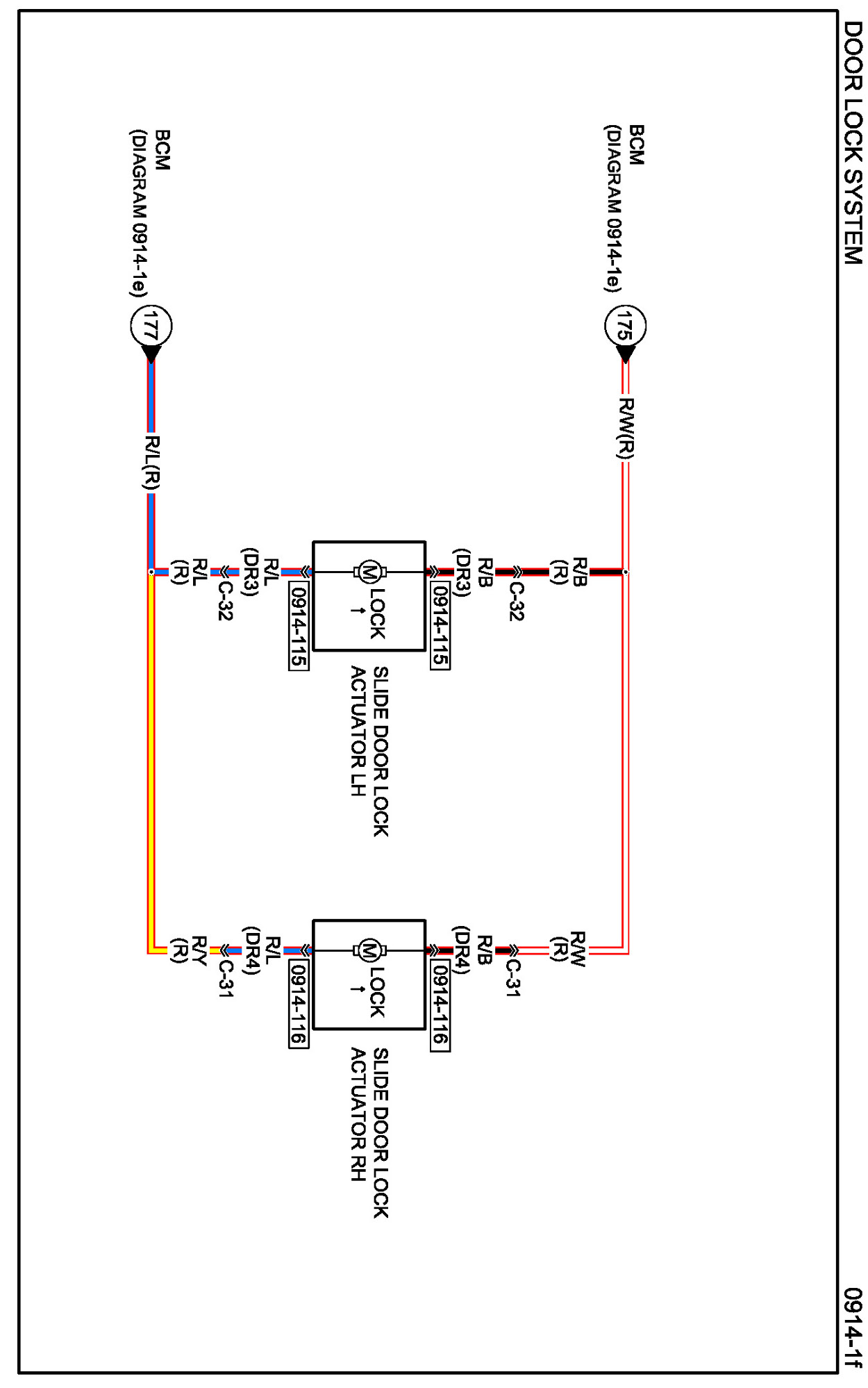

Diagram 0914-1f:

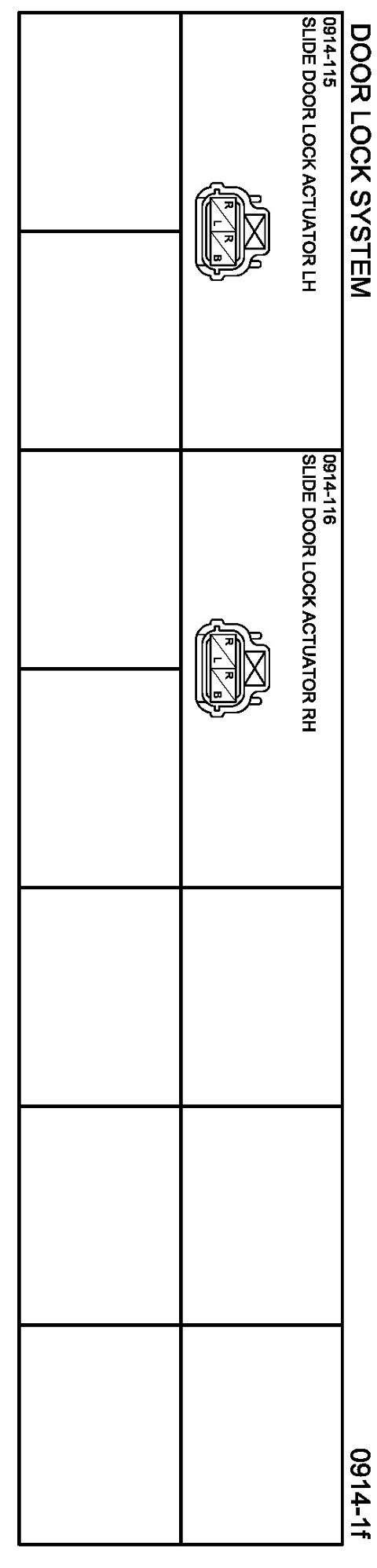

Connectors 0914-1f:

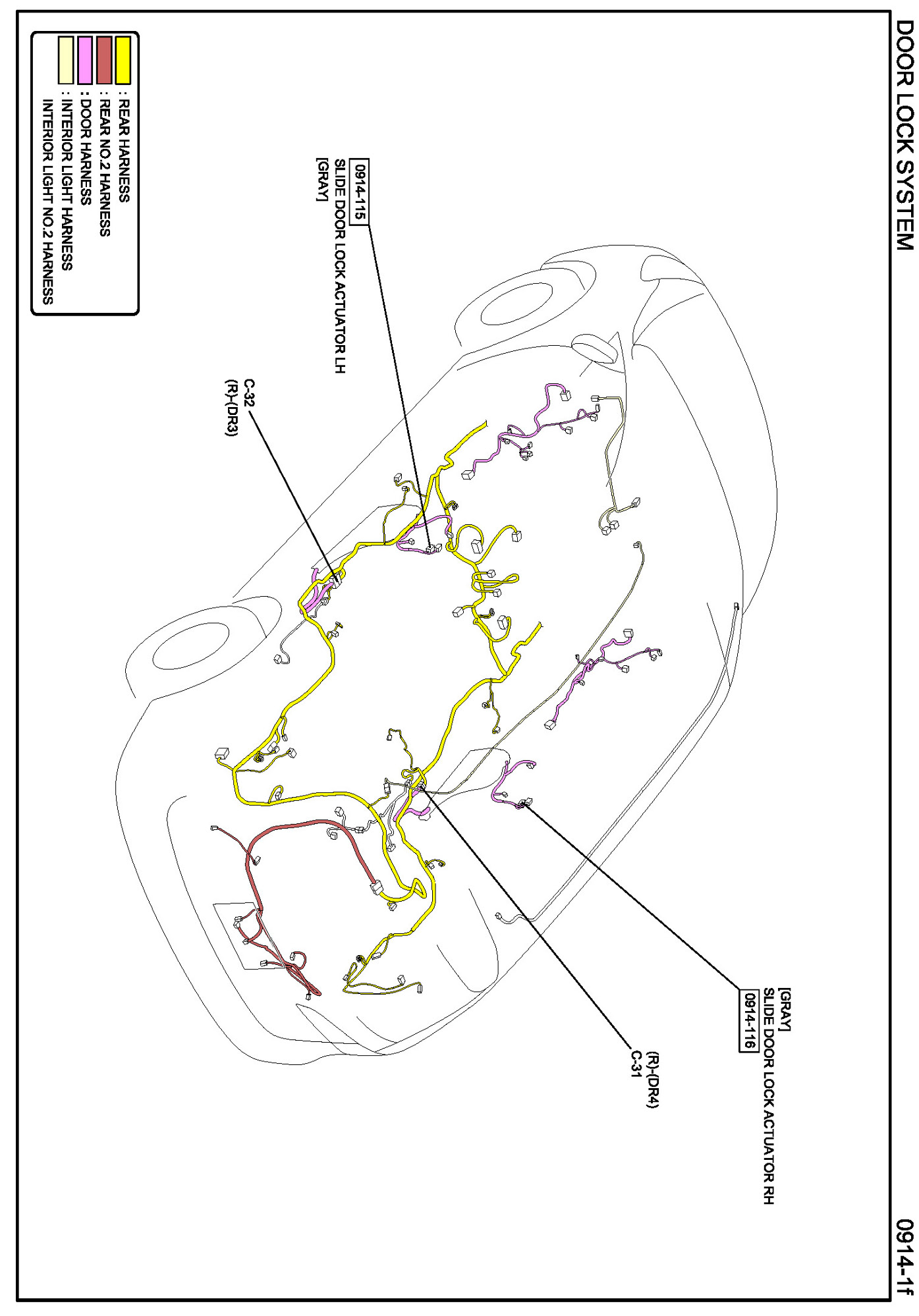

Routing View 0914-1f:

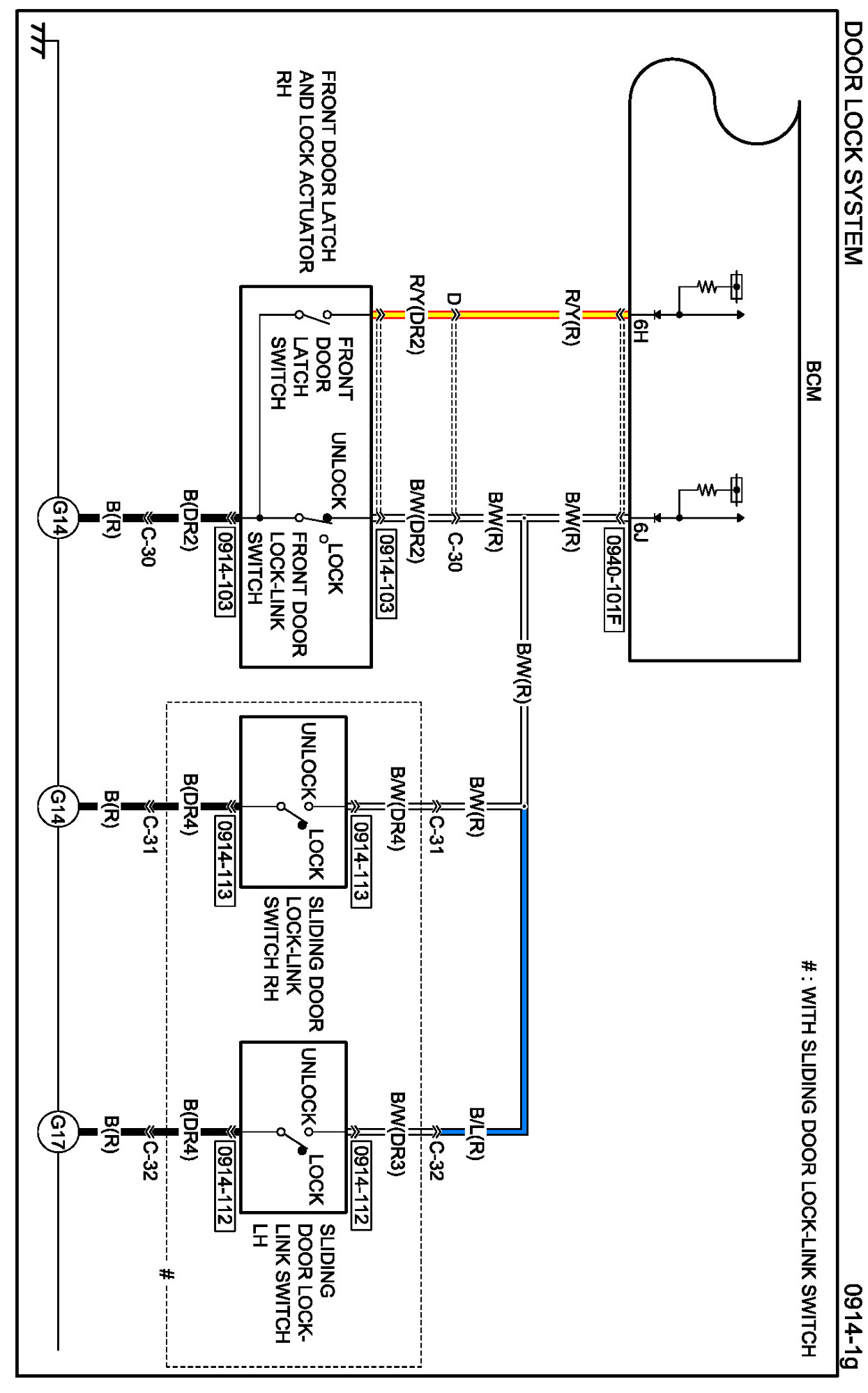

Diagram 0914-1g:

Connectors 0914-1g:

Routing View 0914-1g:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
