Windows

Diagram 0912-2a:

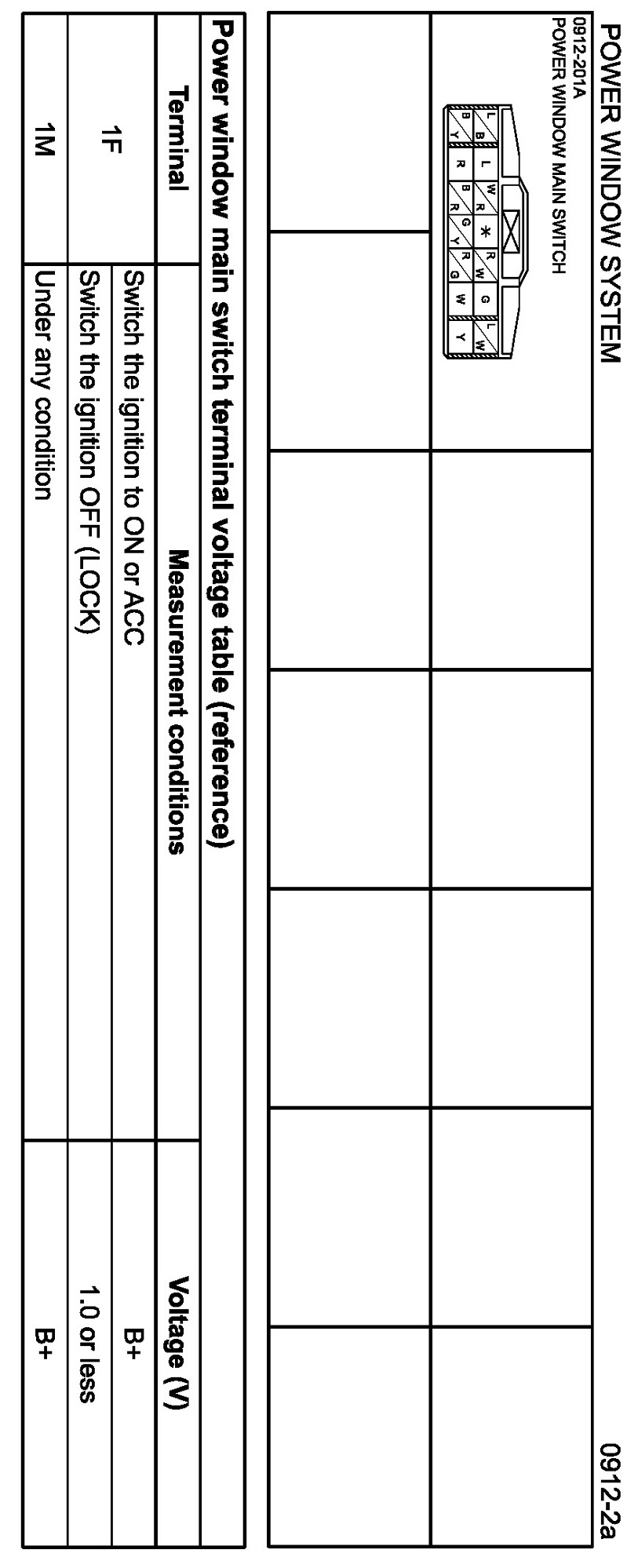

Connectors 0912-2a:

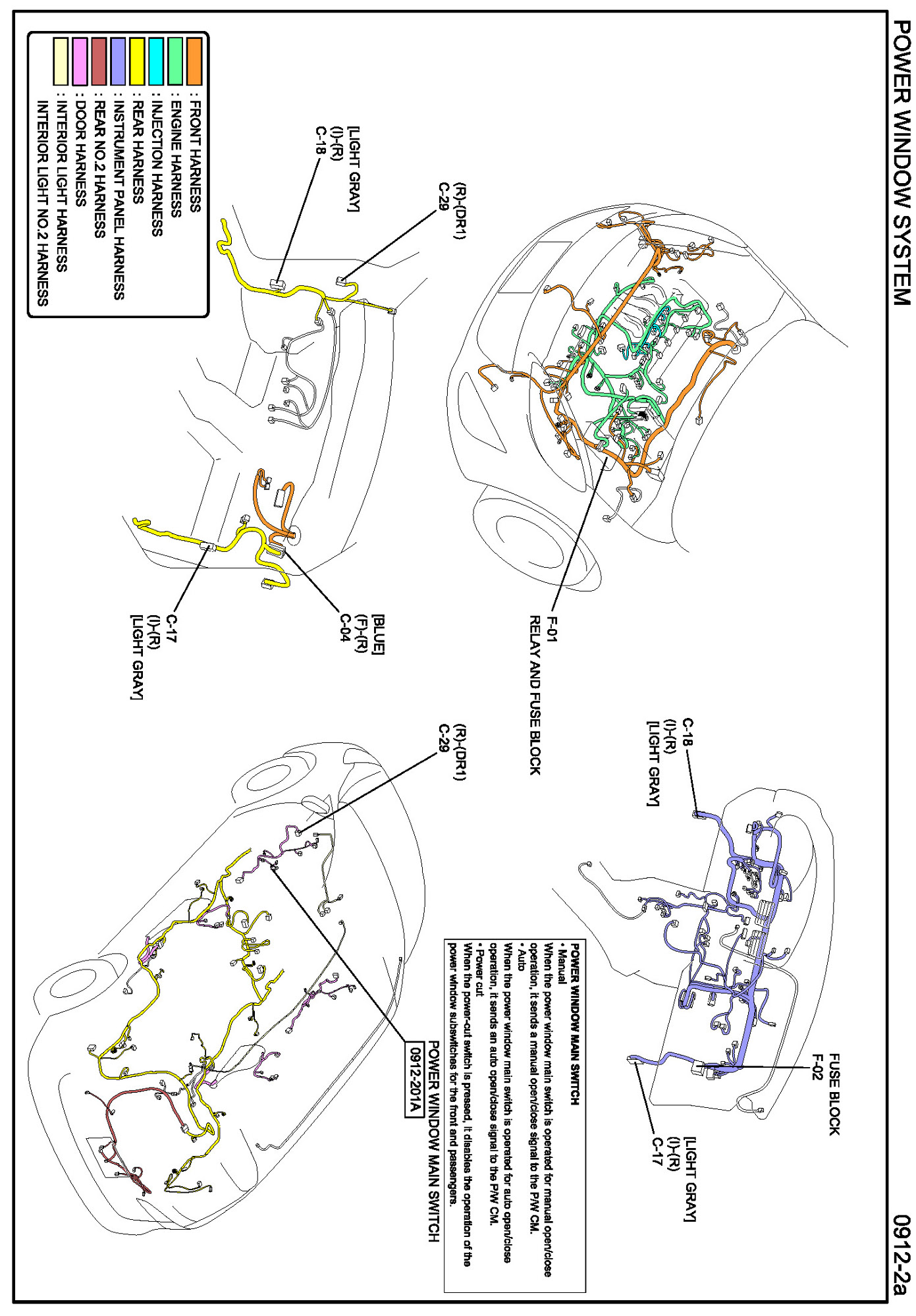

Routing View 0912-2a:

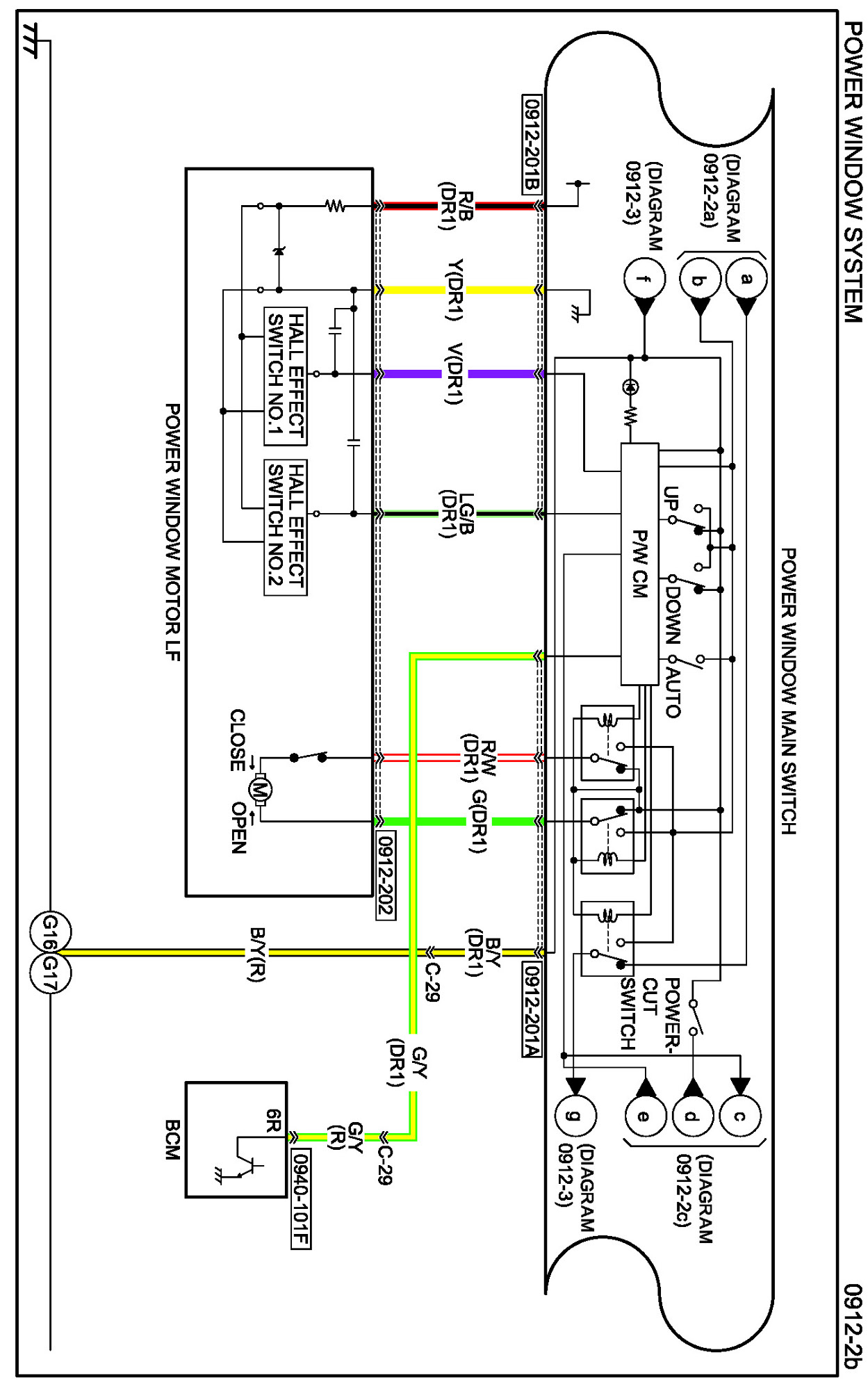

Diagram 0912-2b:

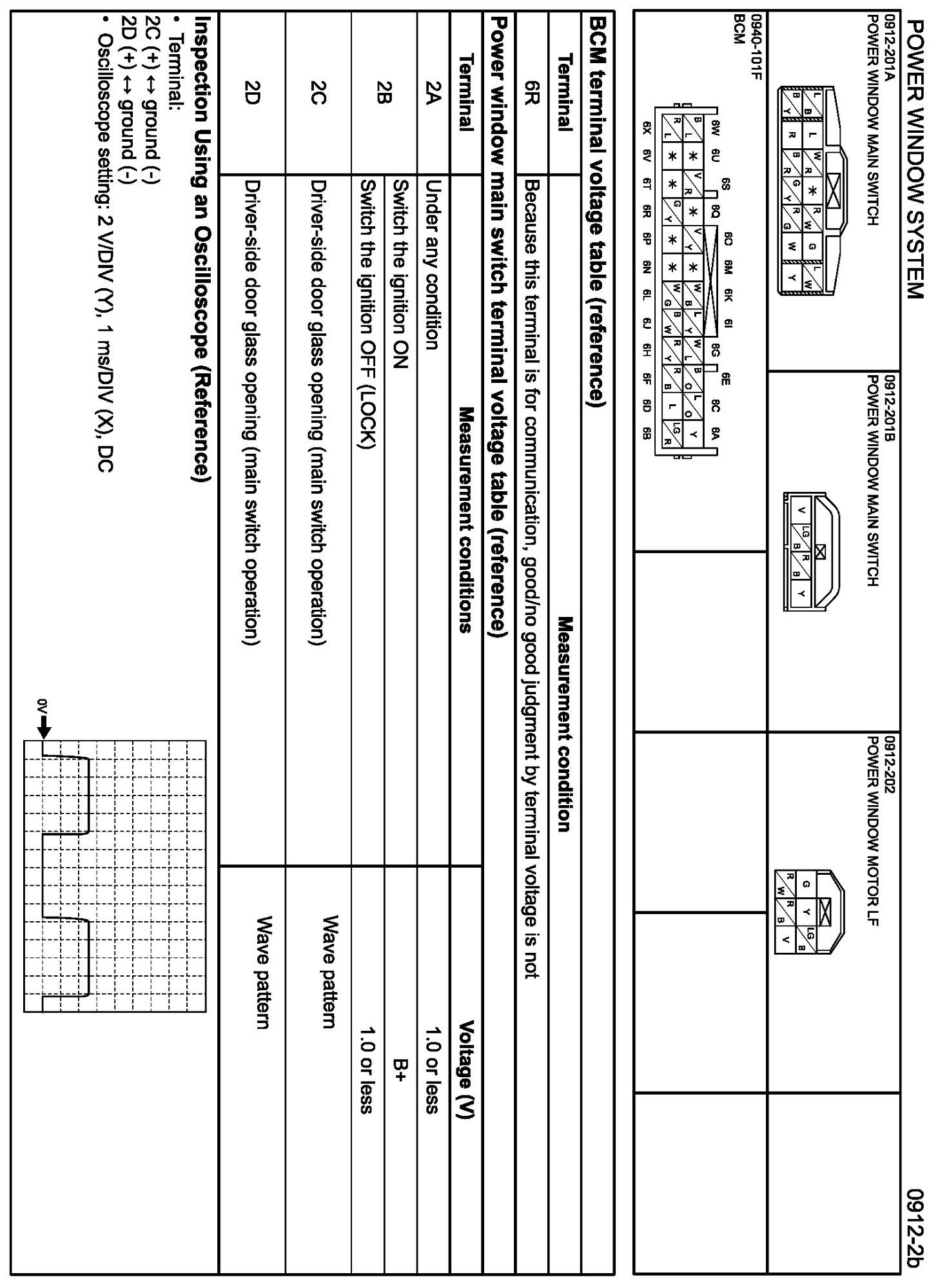

Connectors 0912-2b:

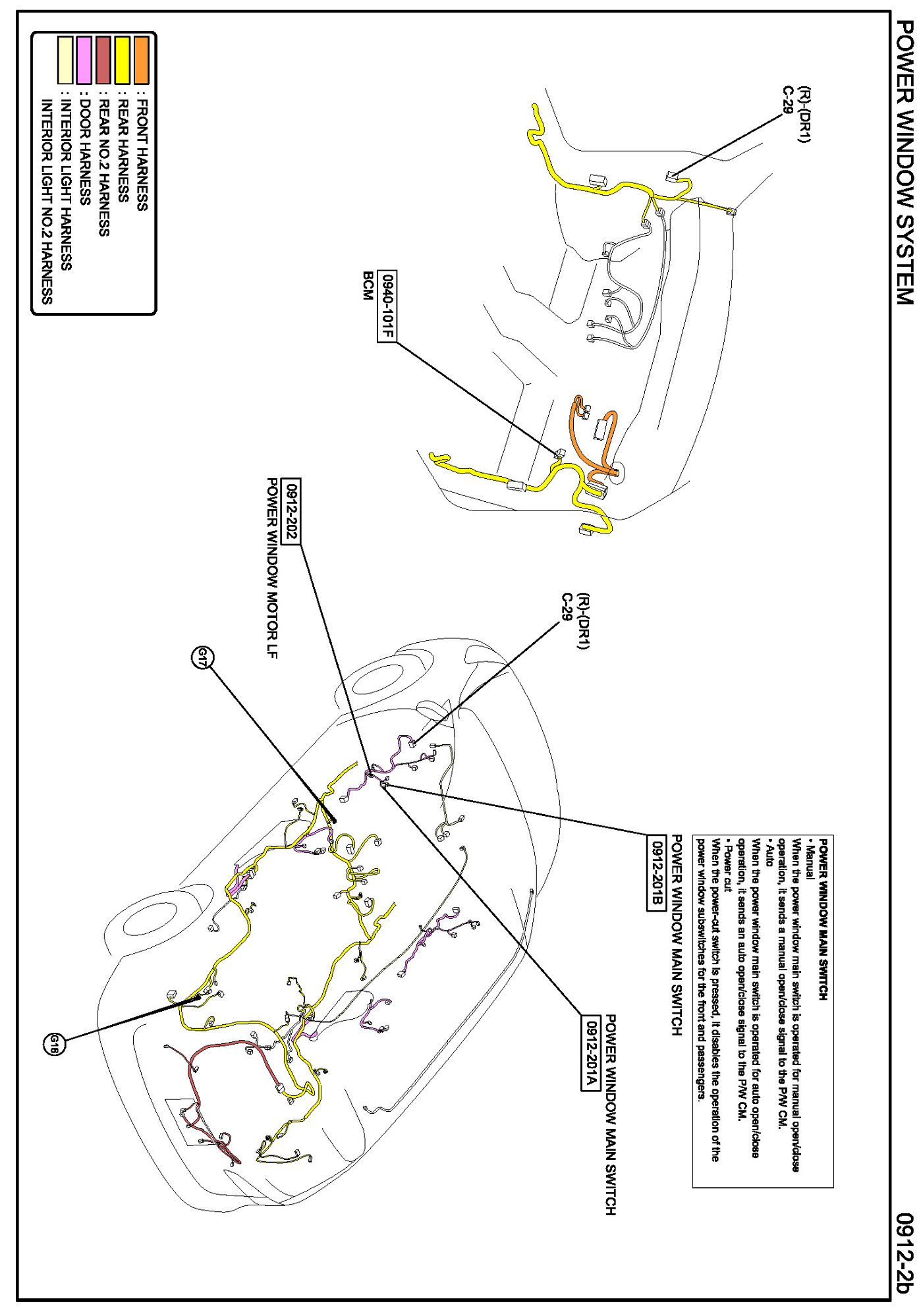

Routing View 0912-2b:

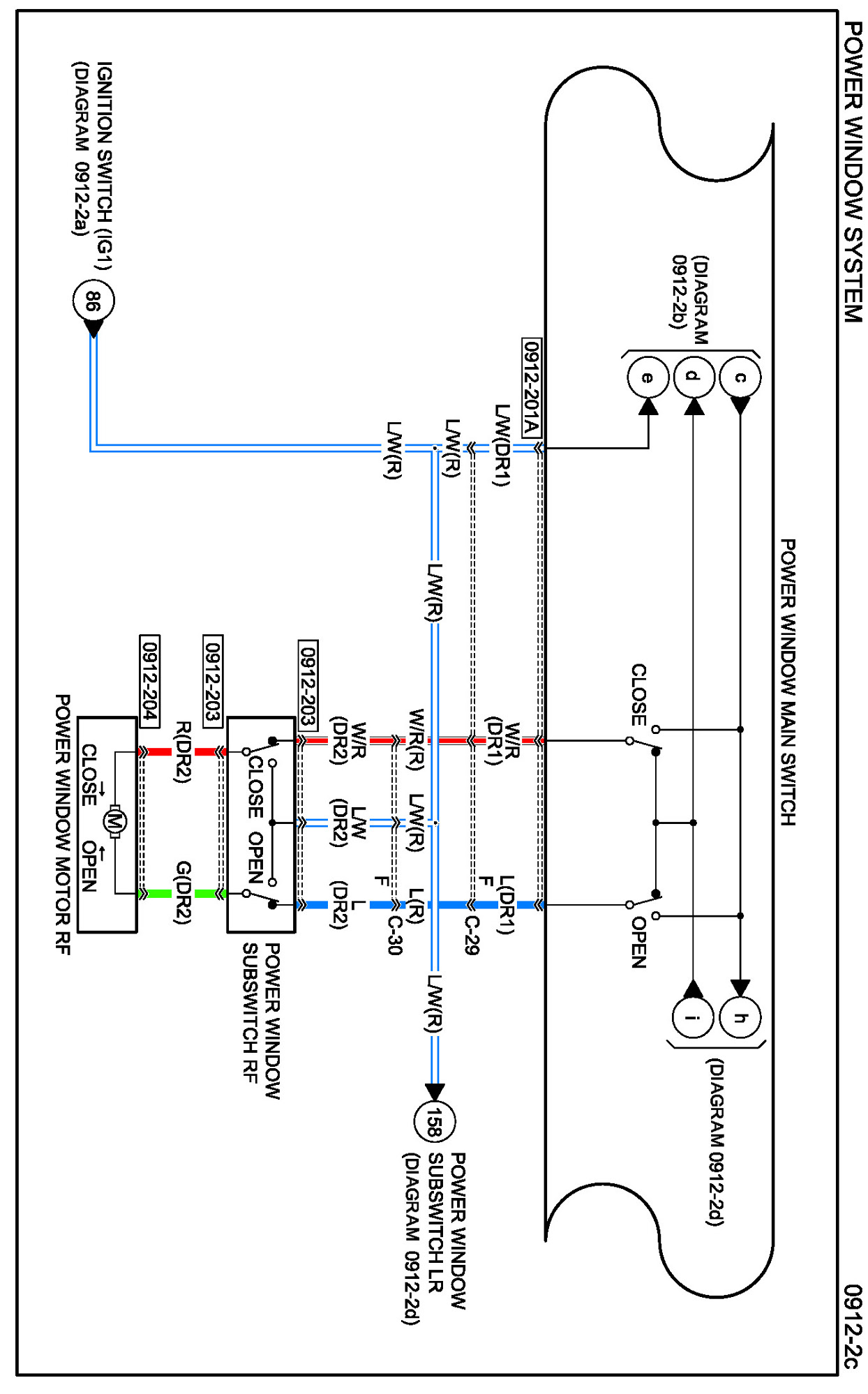

Diagram 0912-2c:

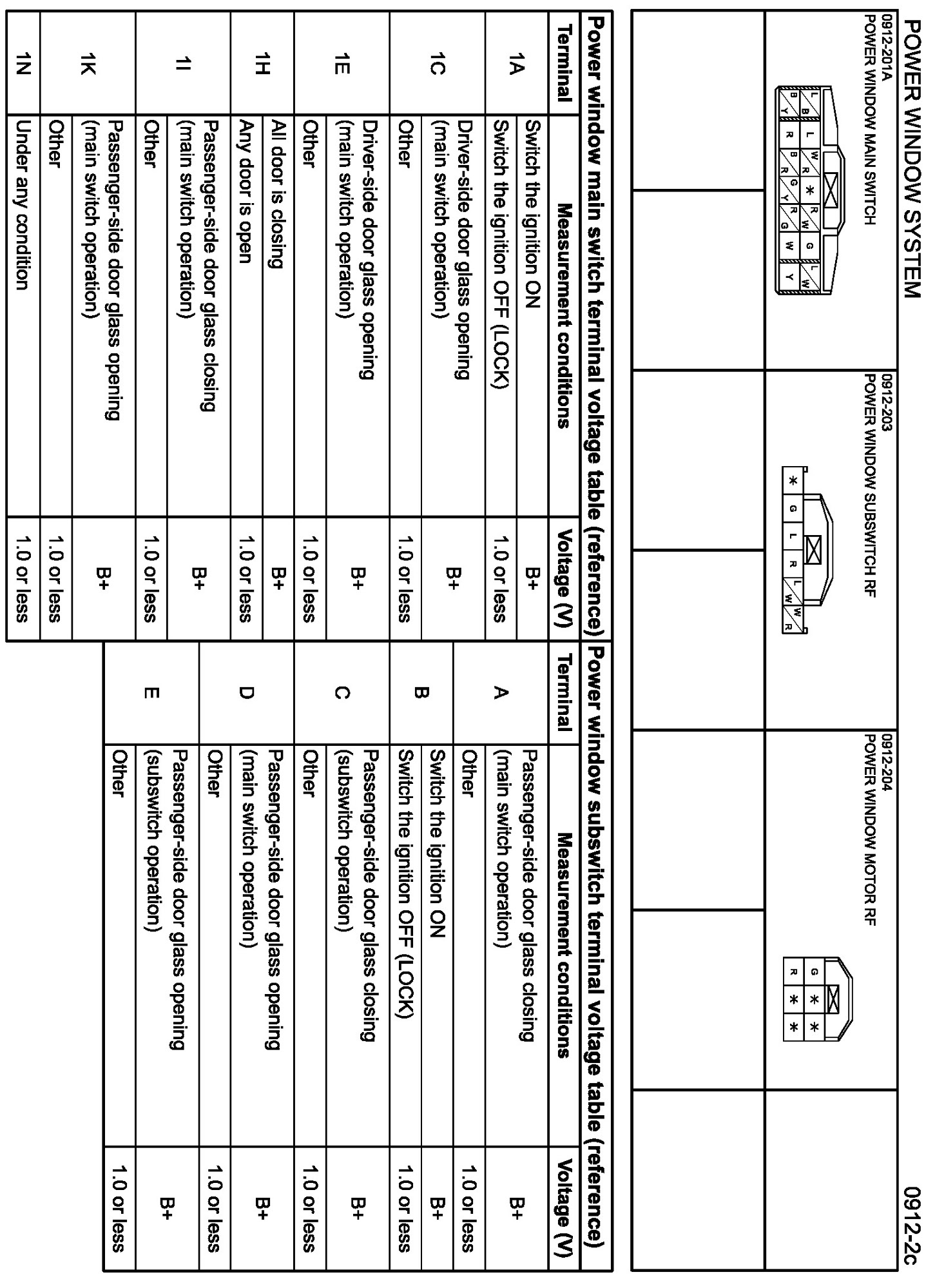

Connectors 0912-2c:

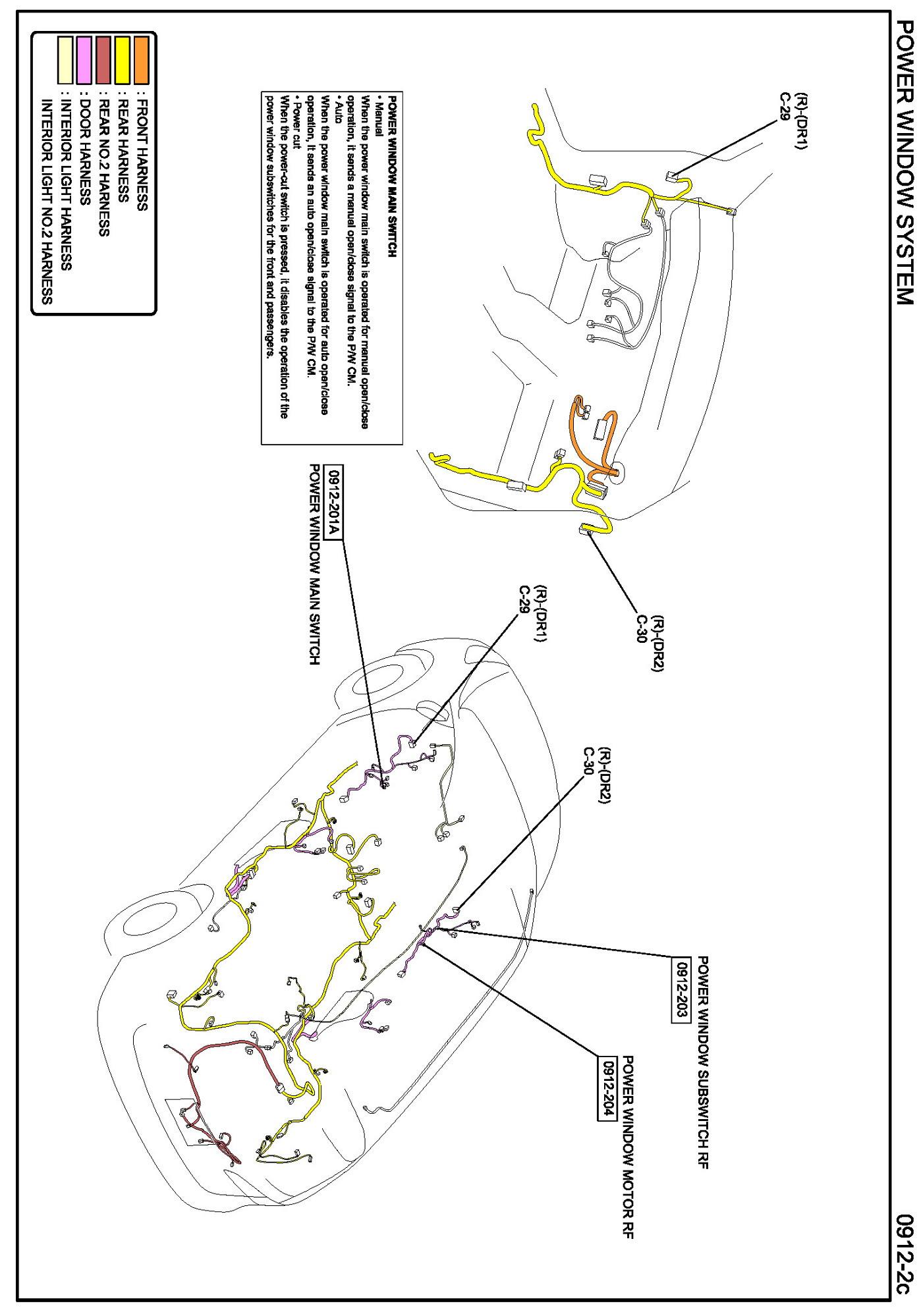

Routing View 0912-2c:

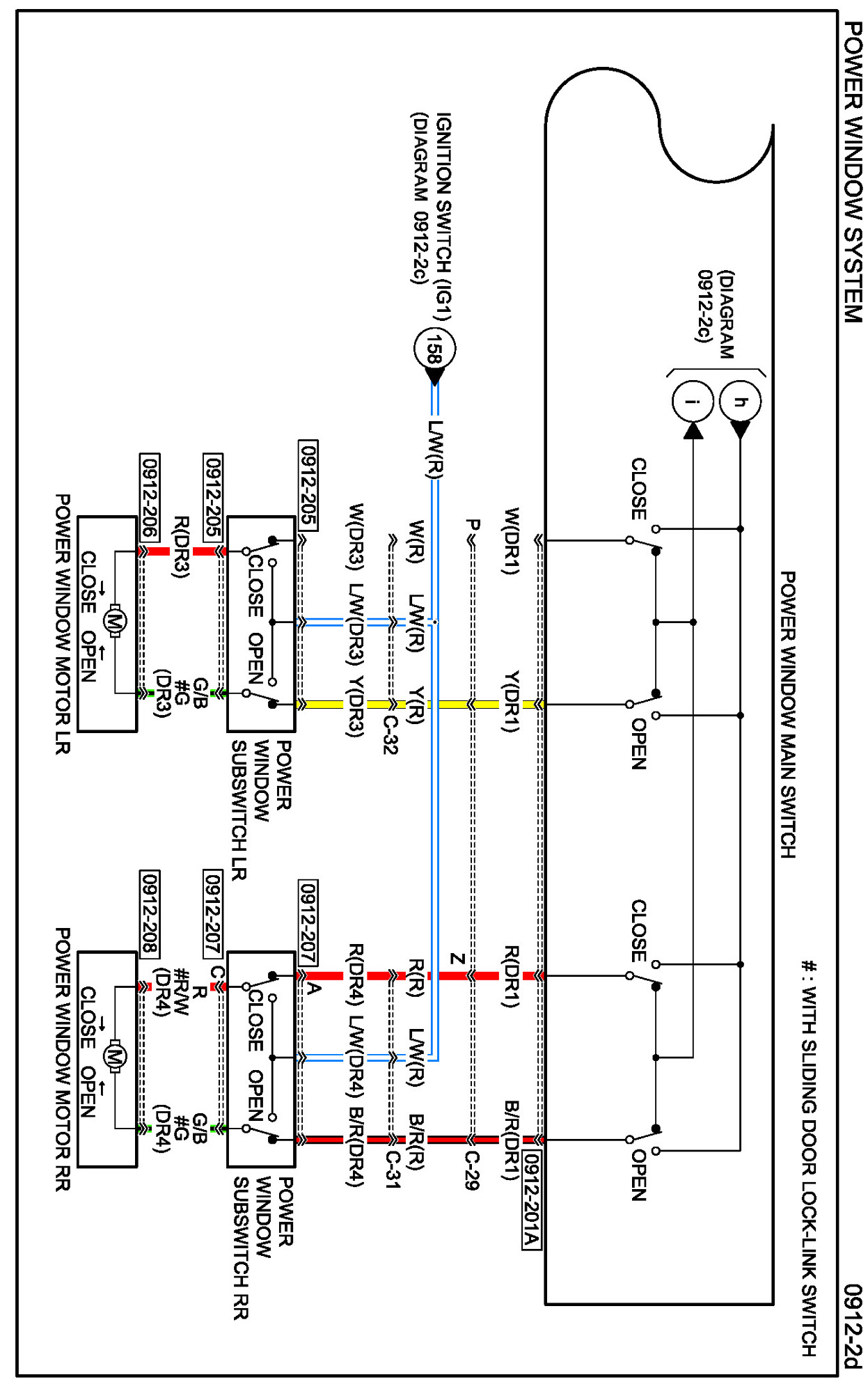

Diagram 0912-2d:

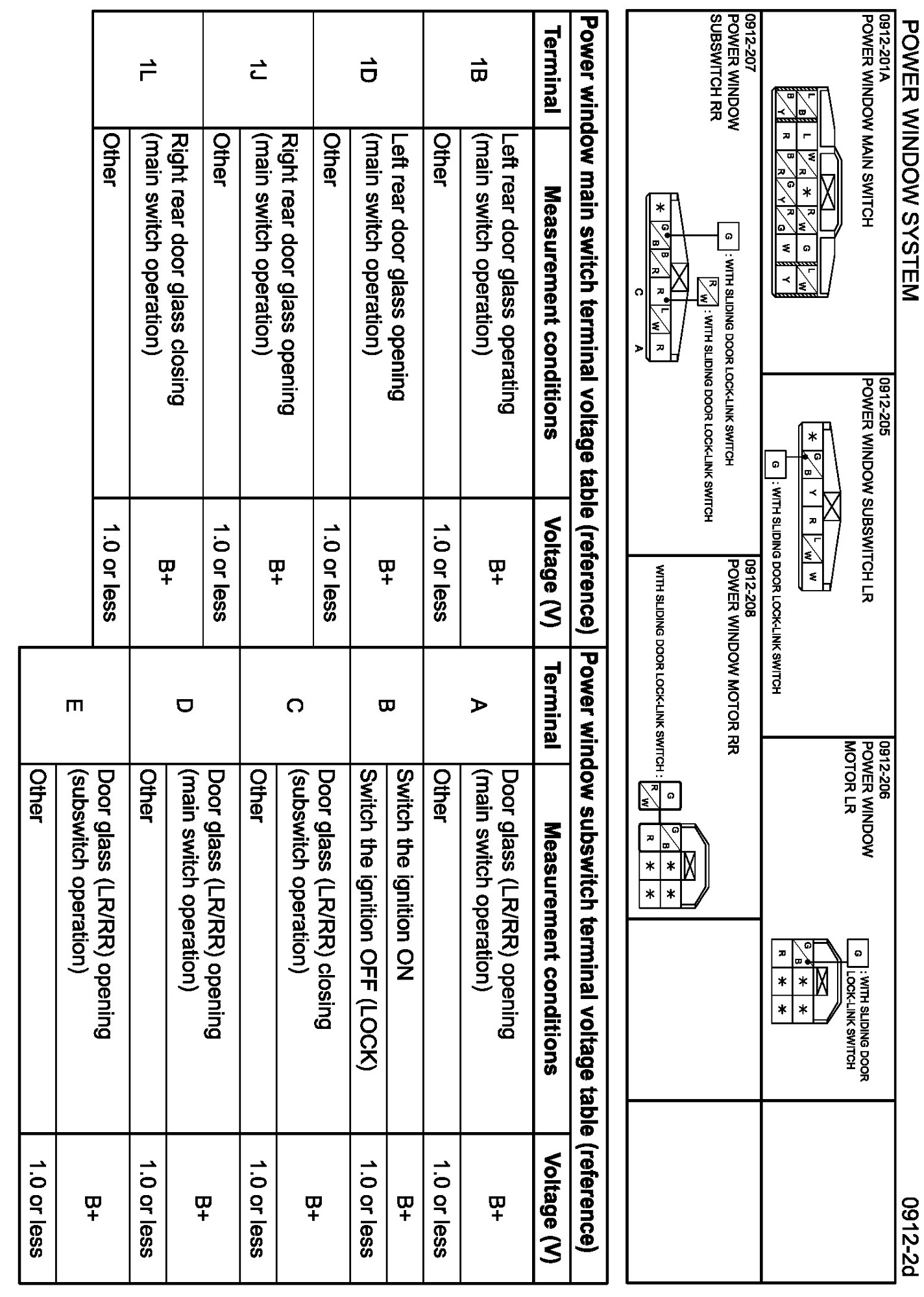

Connectors 0912-2d:

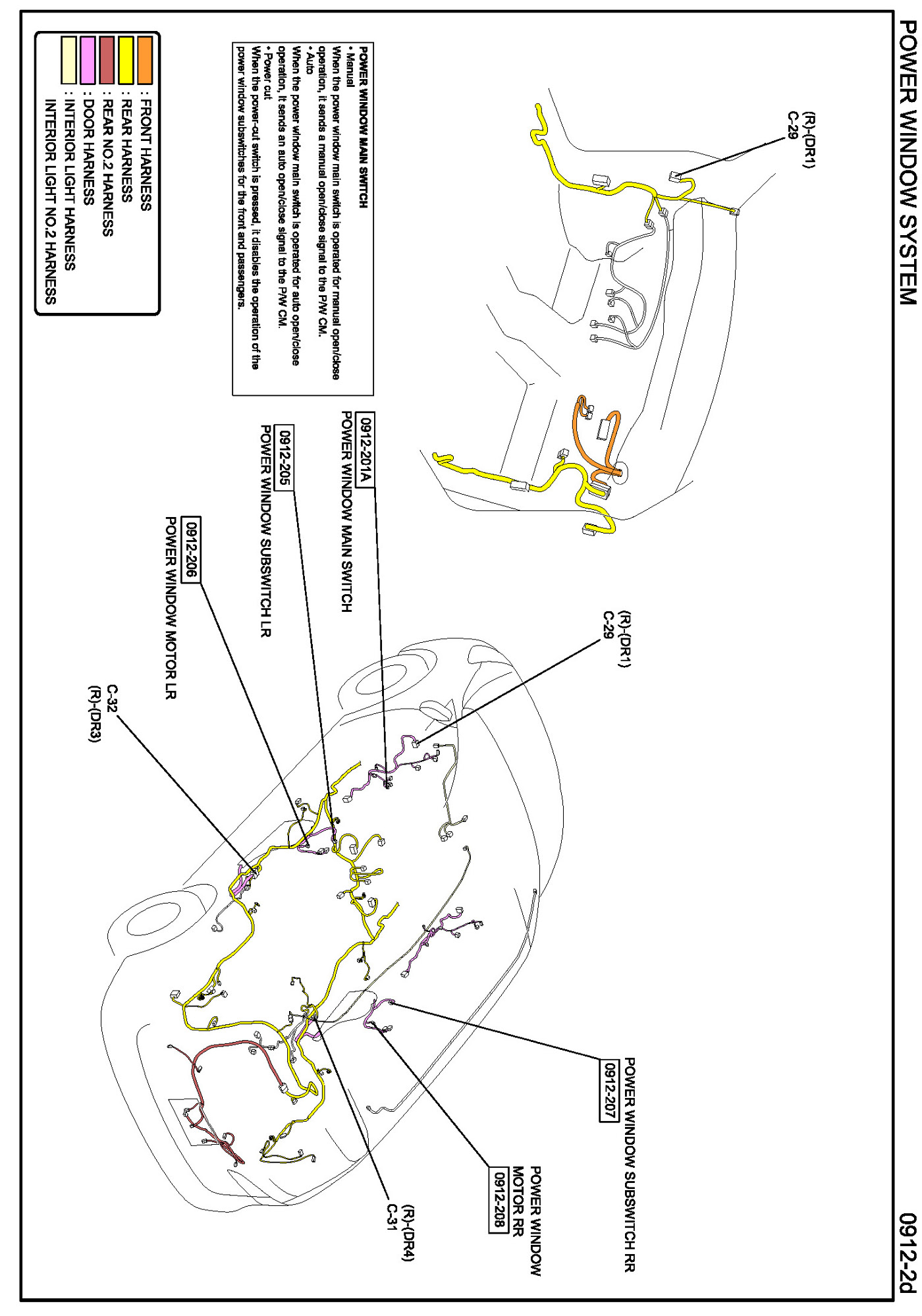

Routing View 0912-2d:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
