Cargo Lamp: Service and Repair

CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

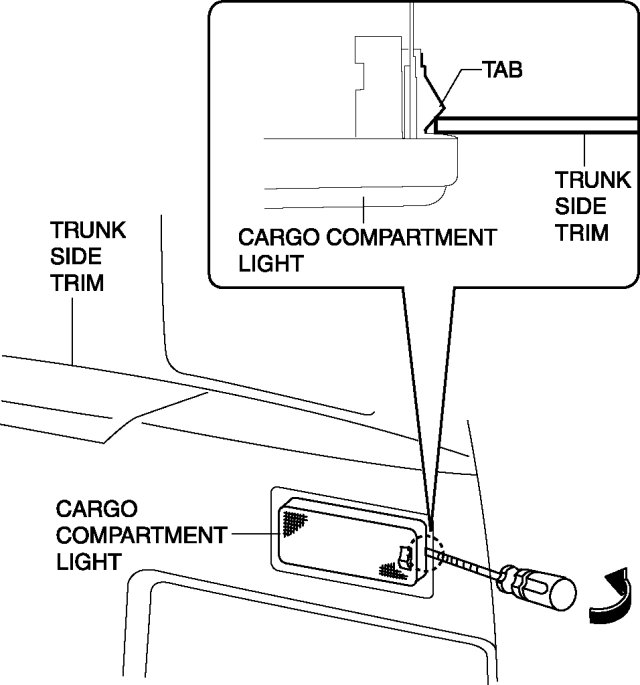

2. Insert a tape-wrapped flathead screwdriver in the position shown in the figure, detach the tab by prying it in the direction of the arrow.

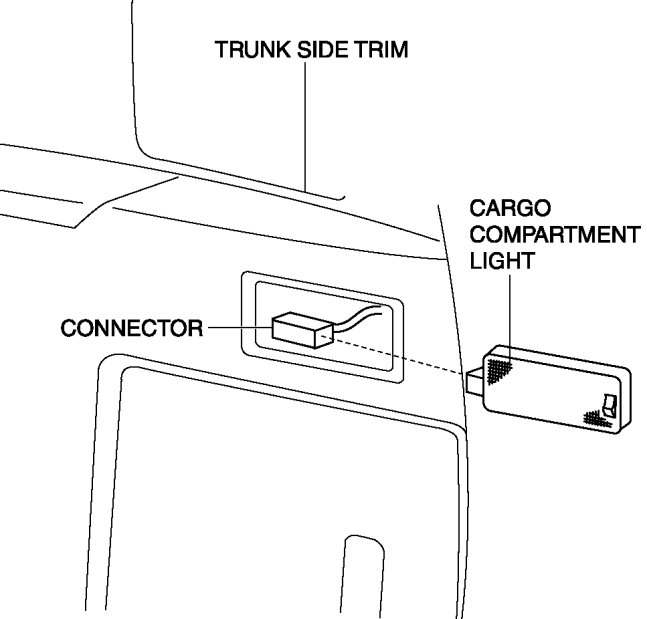

3. Disconnect the connector.






4. Remove the cargo compartment light.

5. Install in the reverse order of removal.
