Fog/Driving Lamp: Service and Repair

FRONT FOG LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front bumper. Removal and Replacement

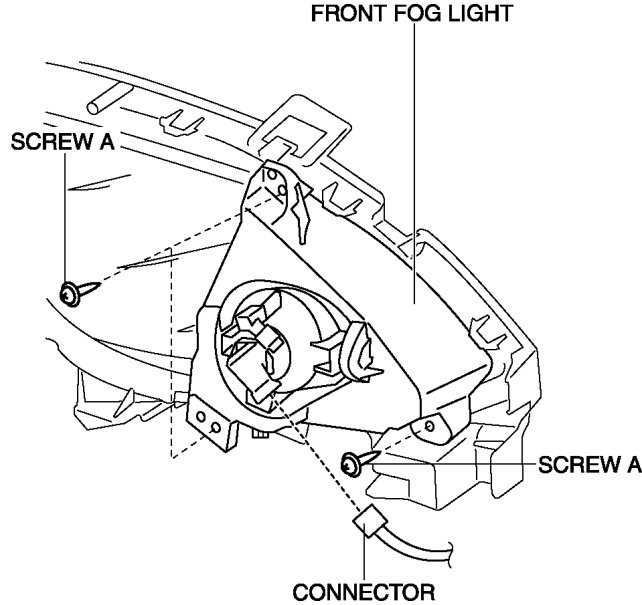

3. Disconnect the connector.






4. Remove screw A.

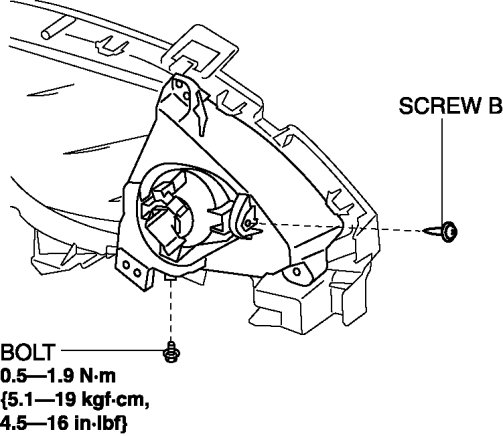

5. Remove screw B.






6. Remove the bolt.

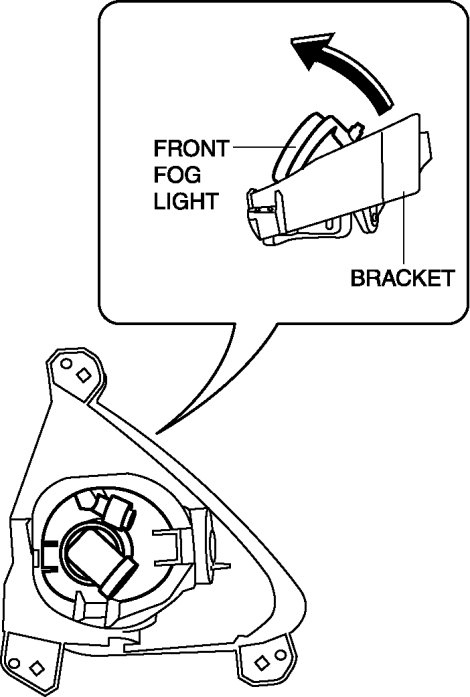

7. Pull the front fog light in the direction of the arrow shown in the figure and remove it from the bracket.






8. Remove the front fog light.

9. Install in the reverse order of removal.

10. Adjust the front fog light aiming. Adjustments
