Vehicle Lifting: Service and Repair

JACKING POSITIONS, VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITIONS

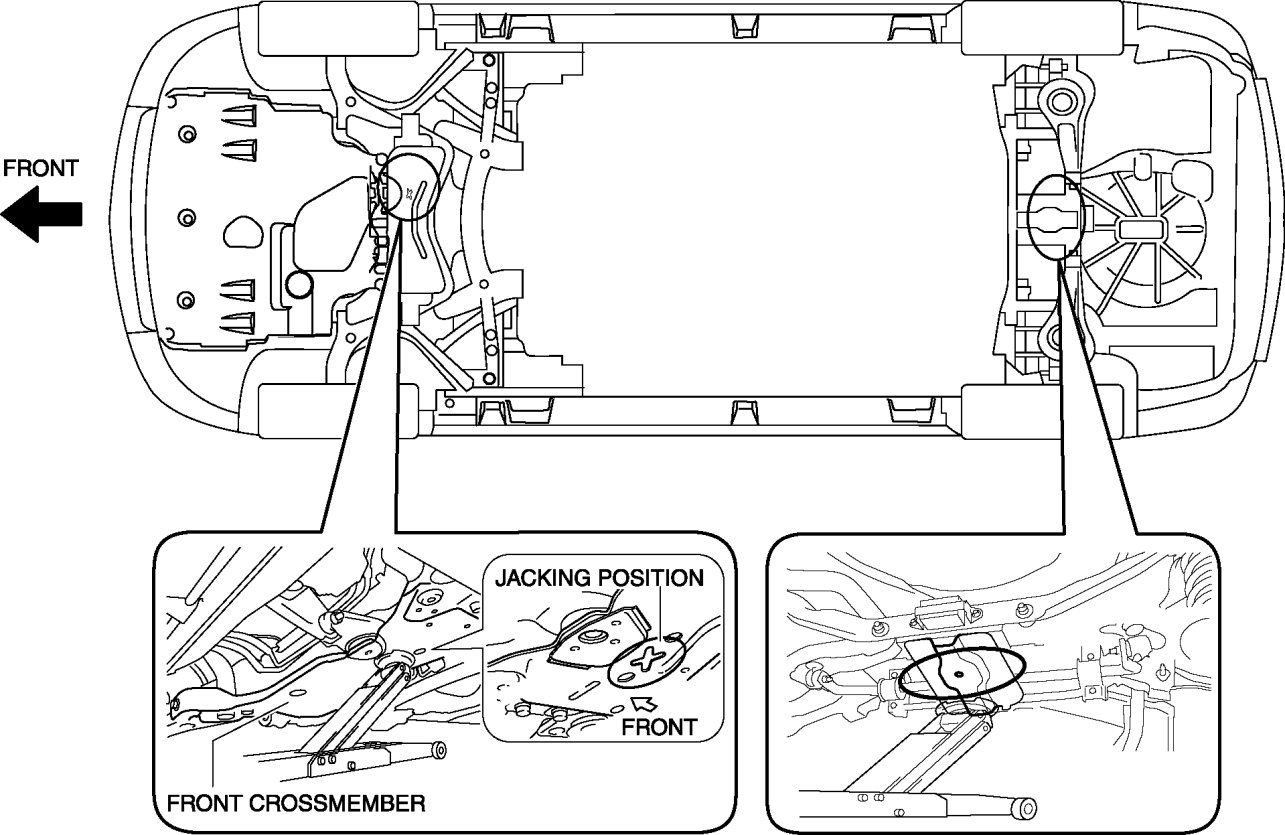

Jacking Positions

WARNING:
- Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.

CAUTION:
- Use safety stands to support the vehicle after it has been lifted.

NOTE:
- To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack.

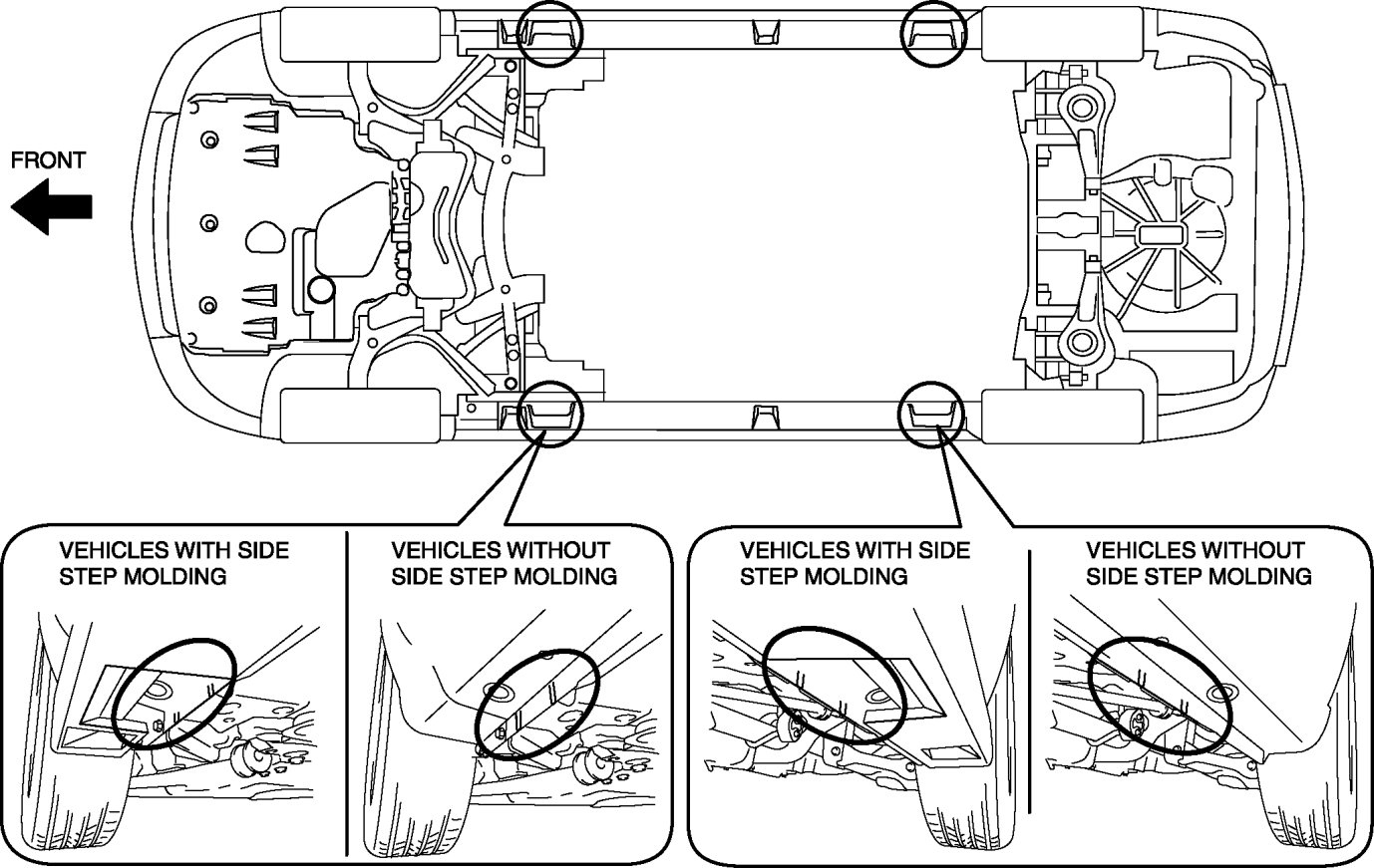

Vehicle Lift Positions

WARNING:
- Lifting a vehicle is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of support at the end of the arm of the lift.

Front and rear

- Both sides of the vehicle, on side sills.
