Power System

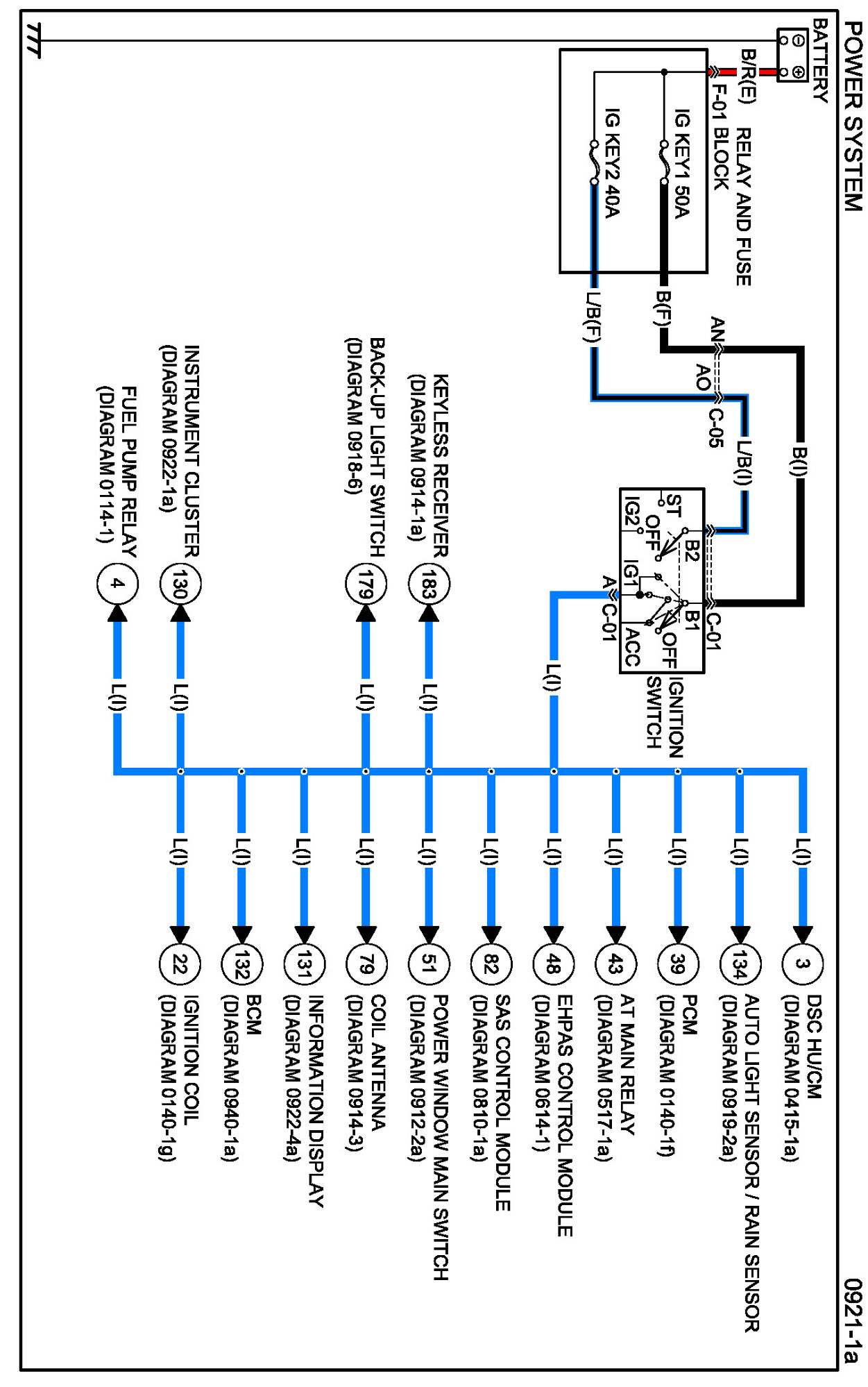

Diagram 0921-1a:

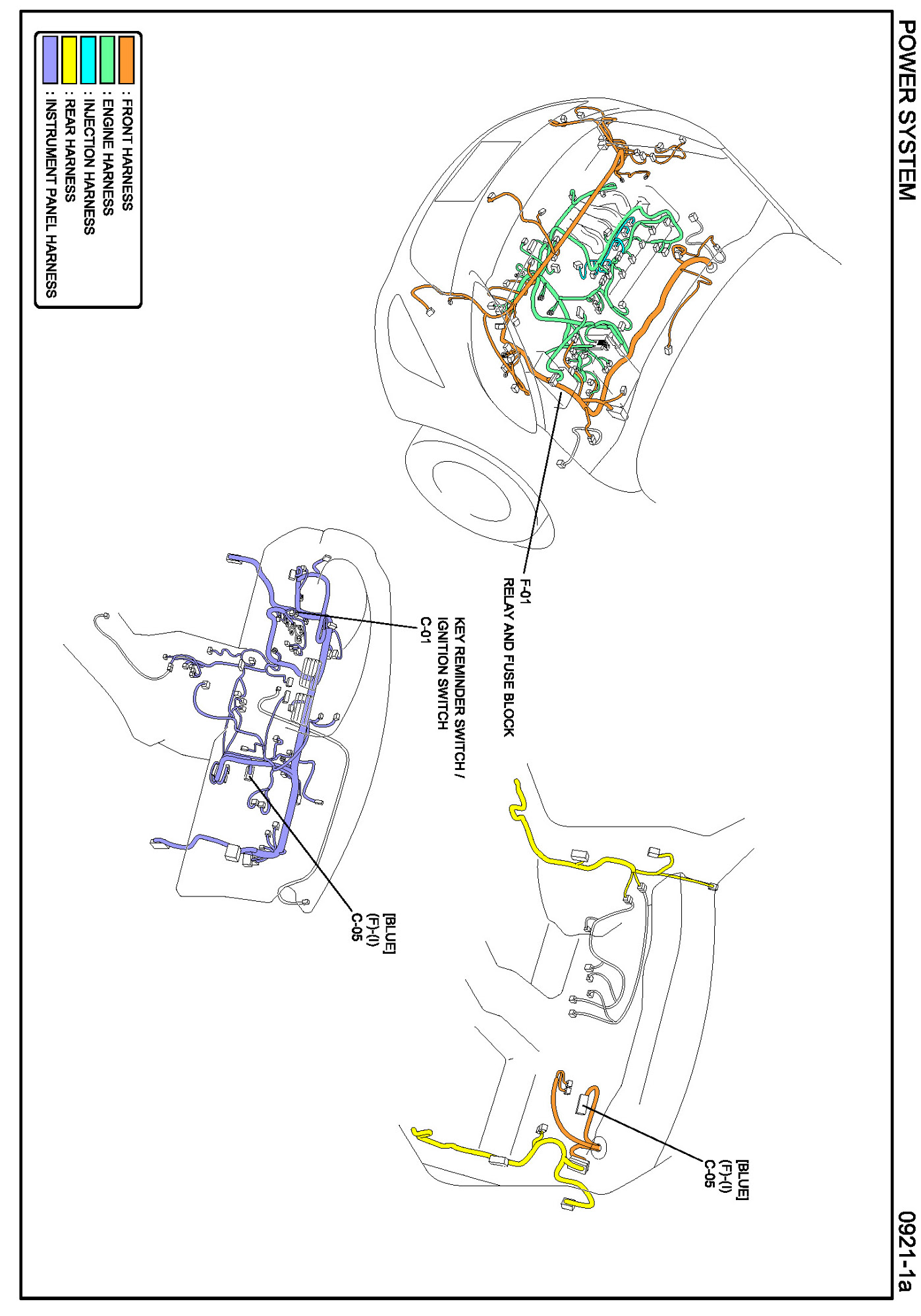

Routing View 0921-1a:

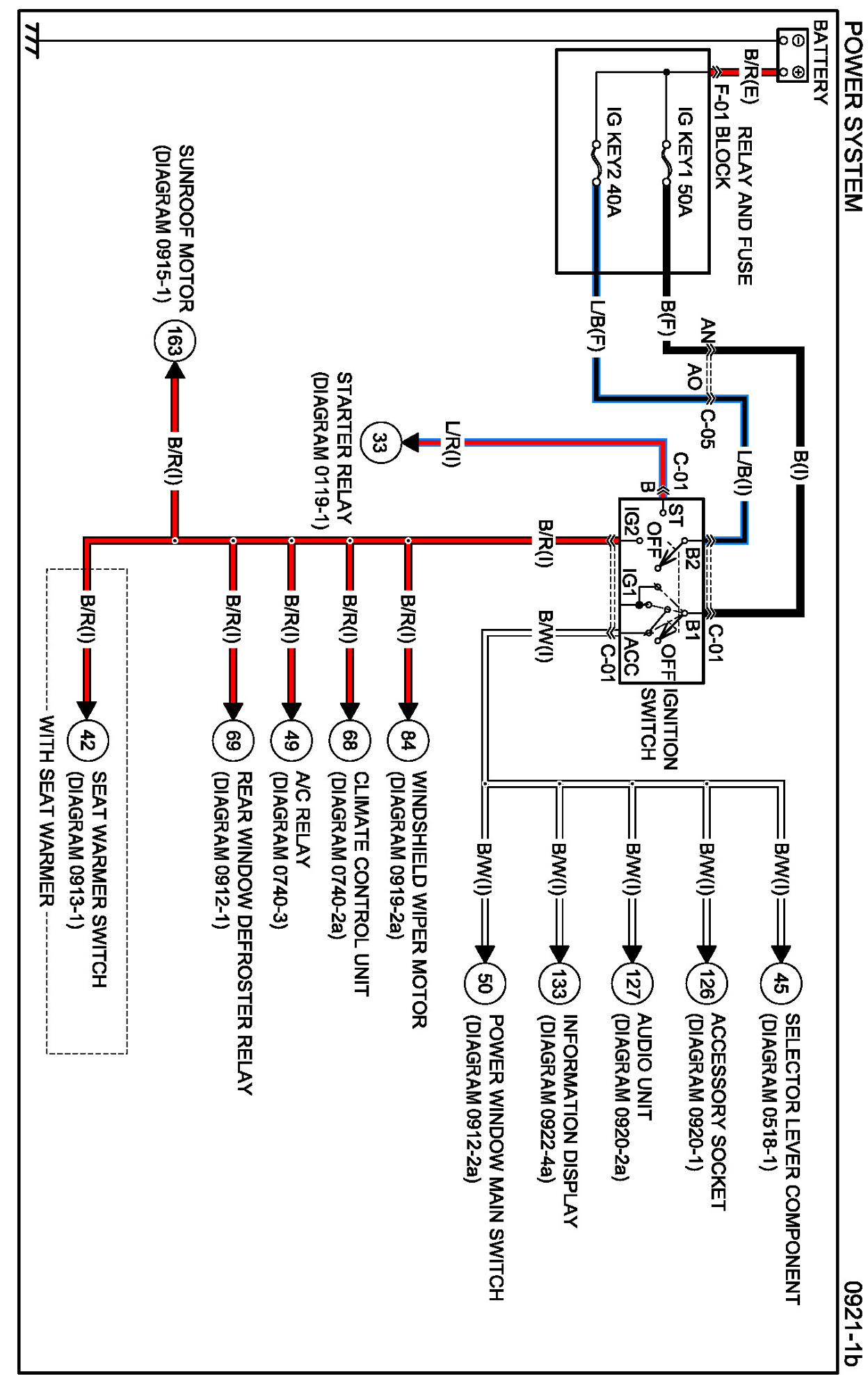

Diagram 0921-1b:

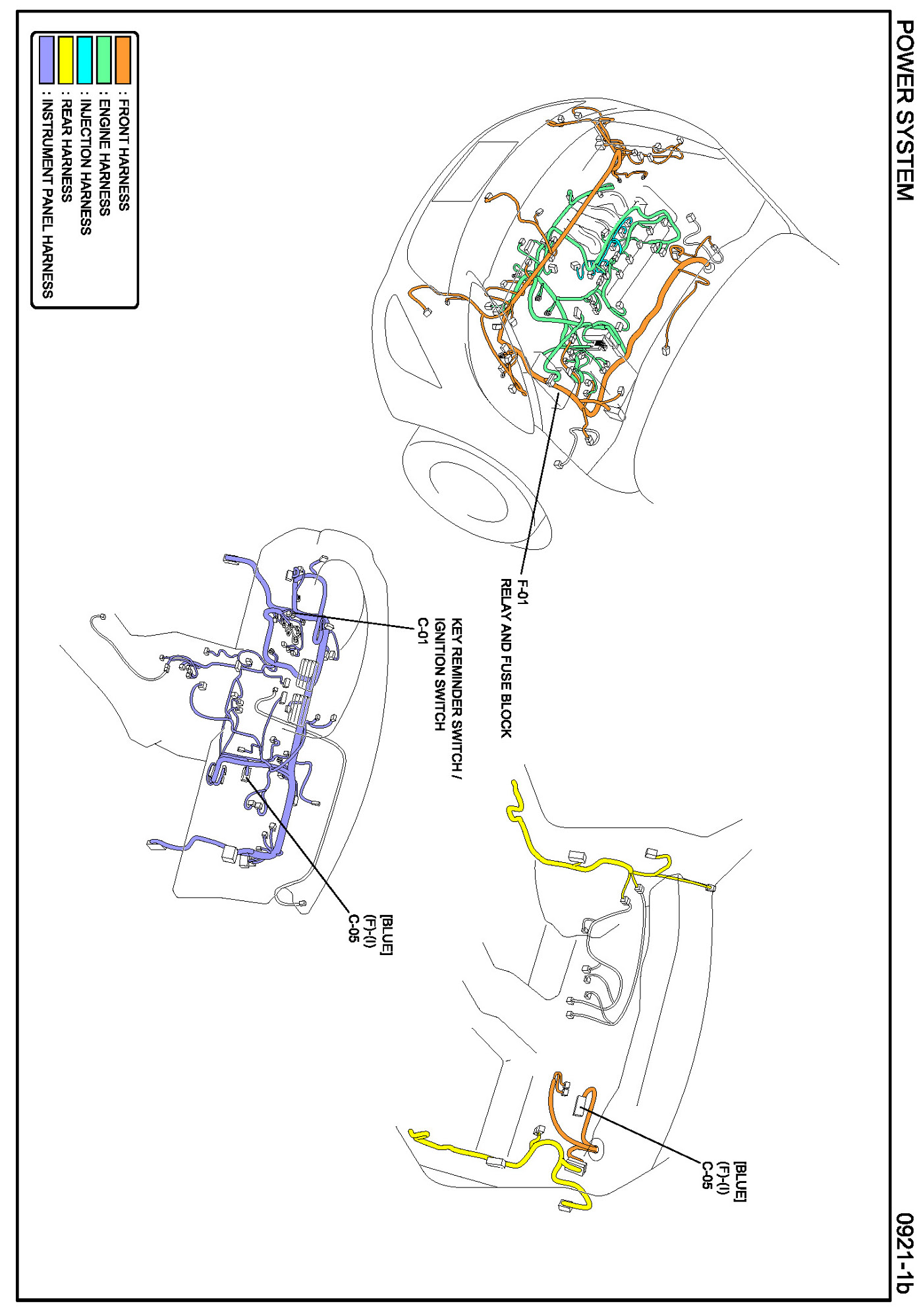

Routing View 0921-1b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
