Electrical Diagrams

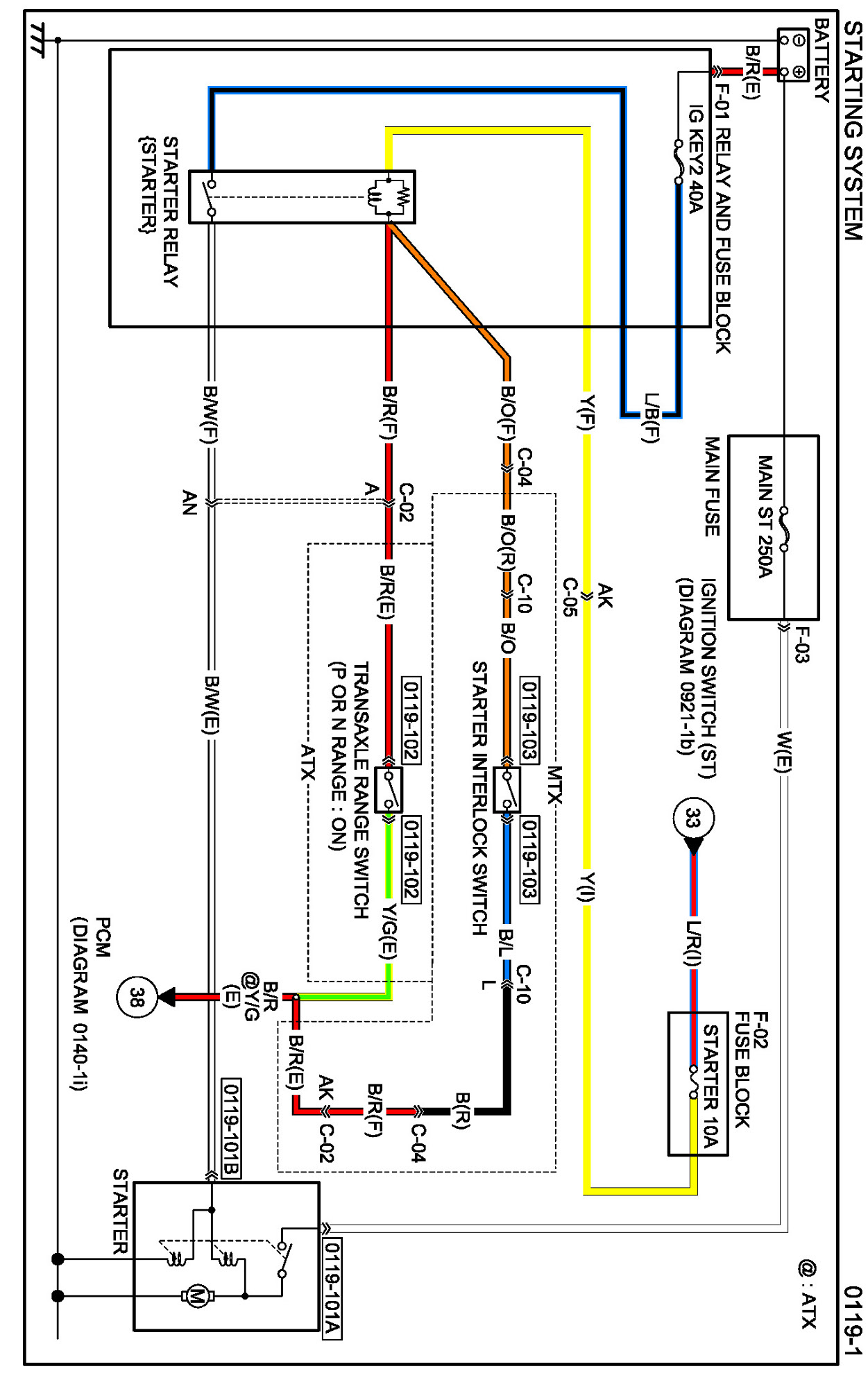

Diagram 0119-1:

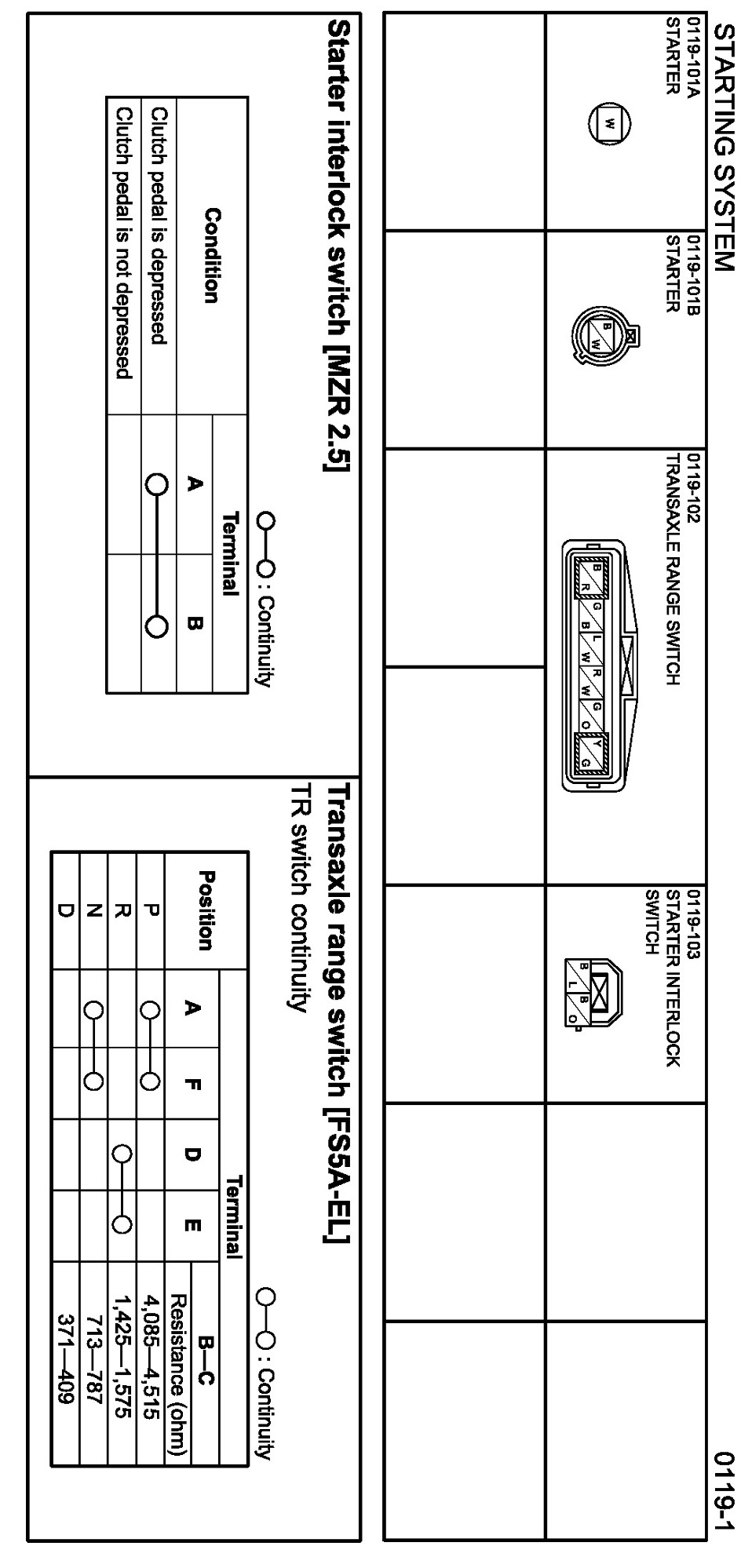

Connectors 0119-1:

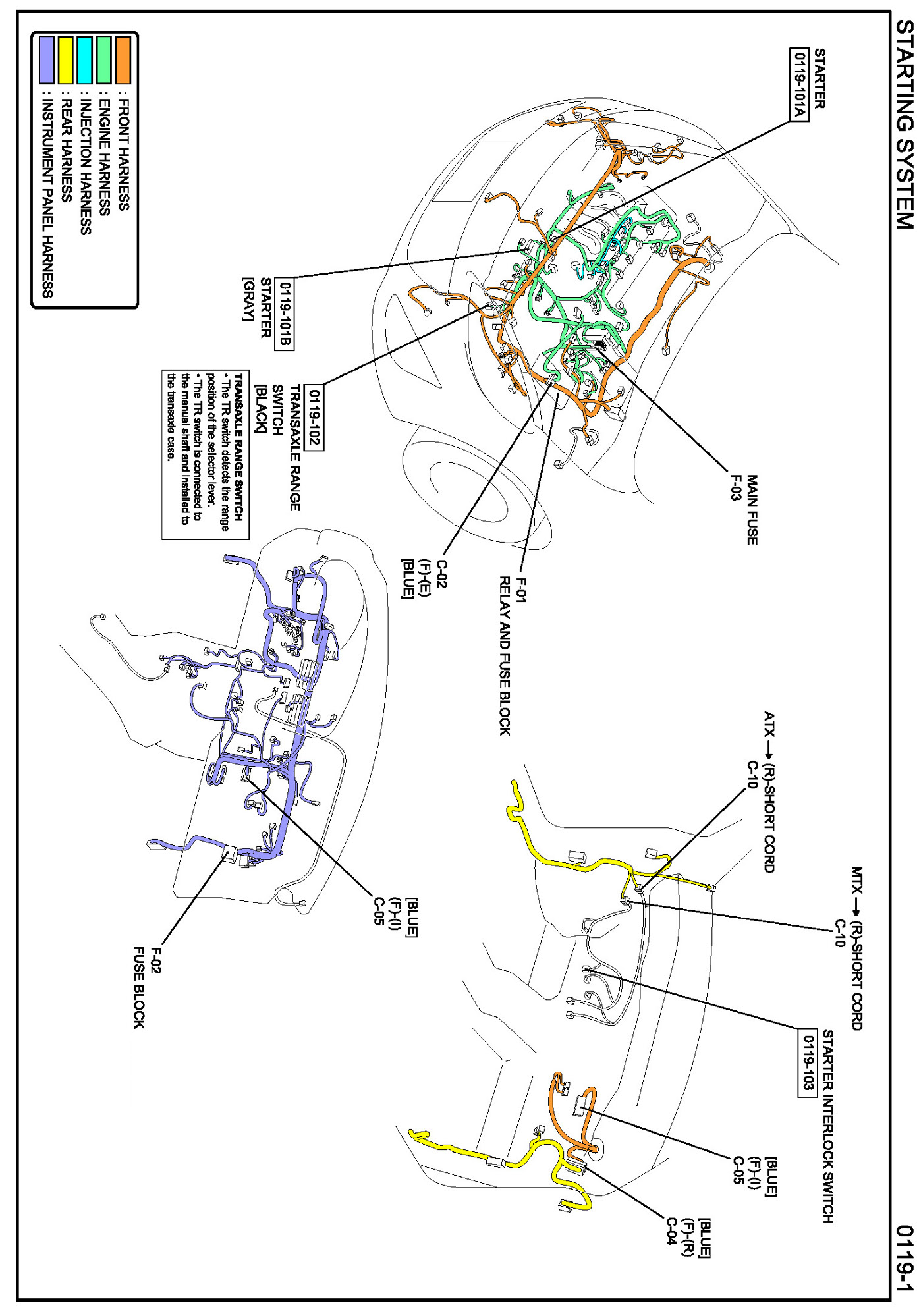

Routing View 0119-1:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
