Control Module: Service and Repair

TCM REMOVAL/INSTALLATION [FS5A-EL]

CAUTION:
- Do not impact or touch the projection on the back of the TCM. Otherwise, the TCM may not operate normally.
- Do not allow foreign material or water to penetrate the connector. Otherwise, it could cause poor contact and corrosion.

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the battery. Removal and Replacement

4. Remove the battery tray. Removal and Replacement

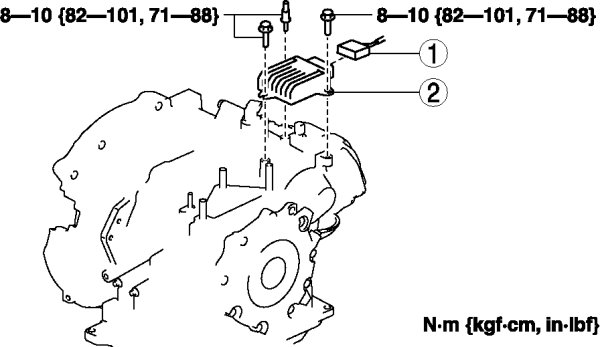

5. Remove in the order shown in the figure.

6. Install in the reverse order of removal.
