Power Window System Preliminary Inspection

POWER WINDOW SYSTEM PRELIMINARY INSPECTION [POWER WINDOW SYSTEM]

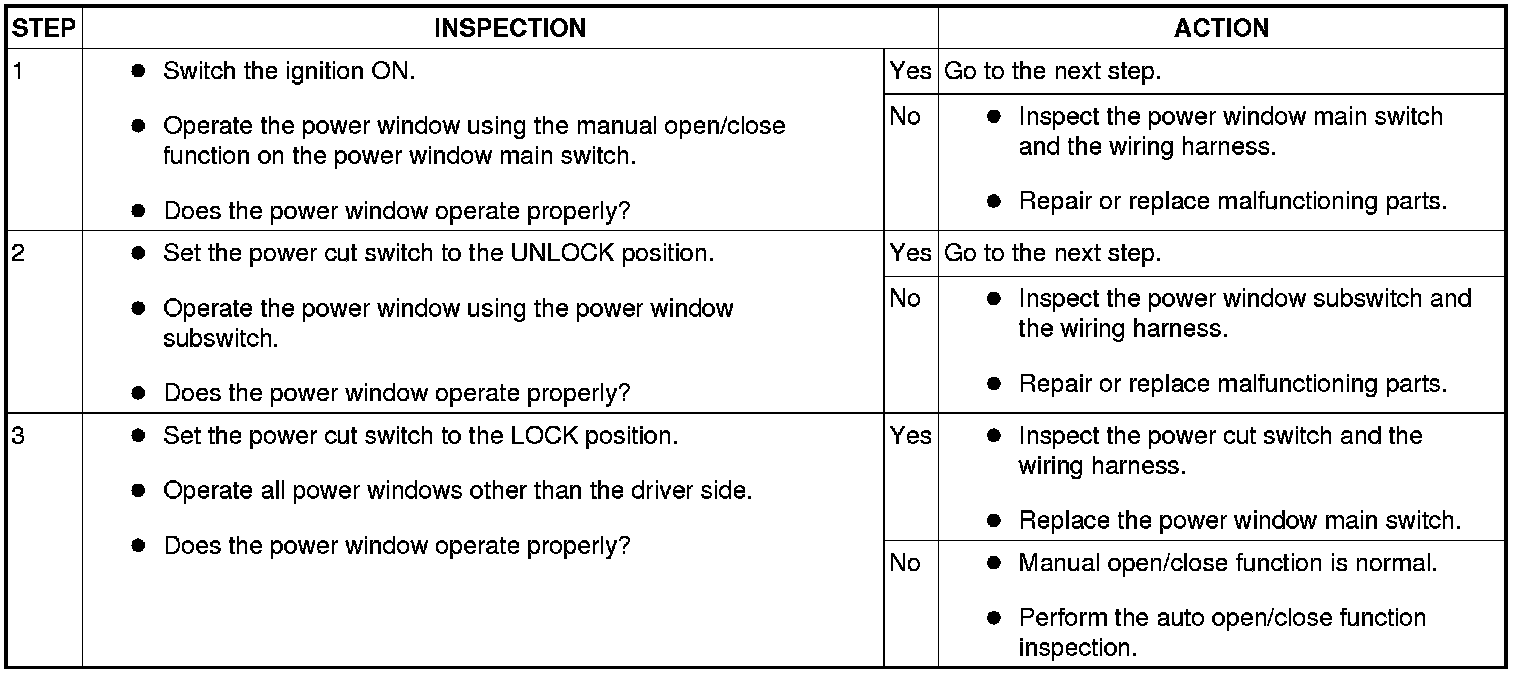

Manual Open/close Function Inspection

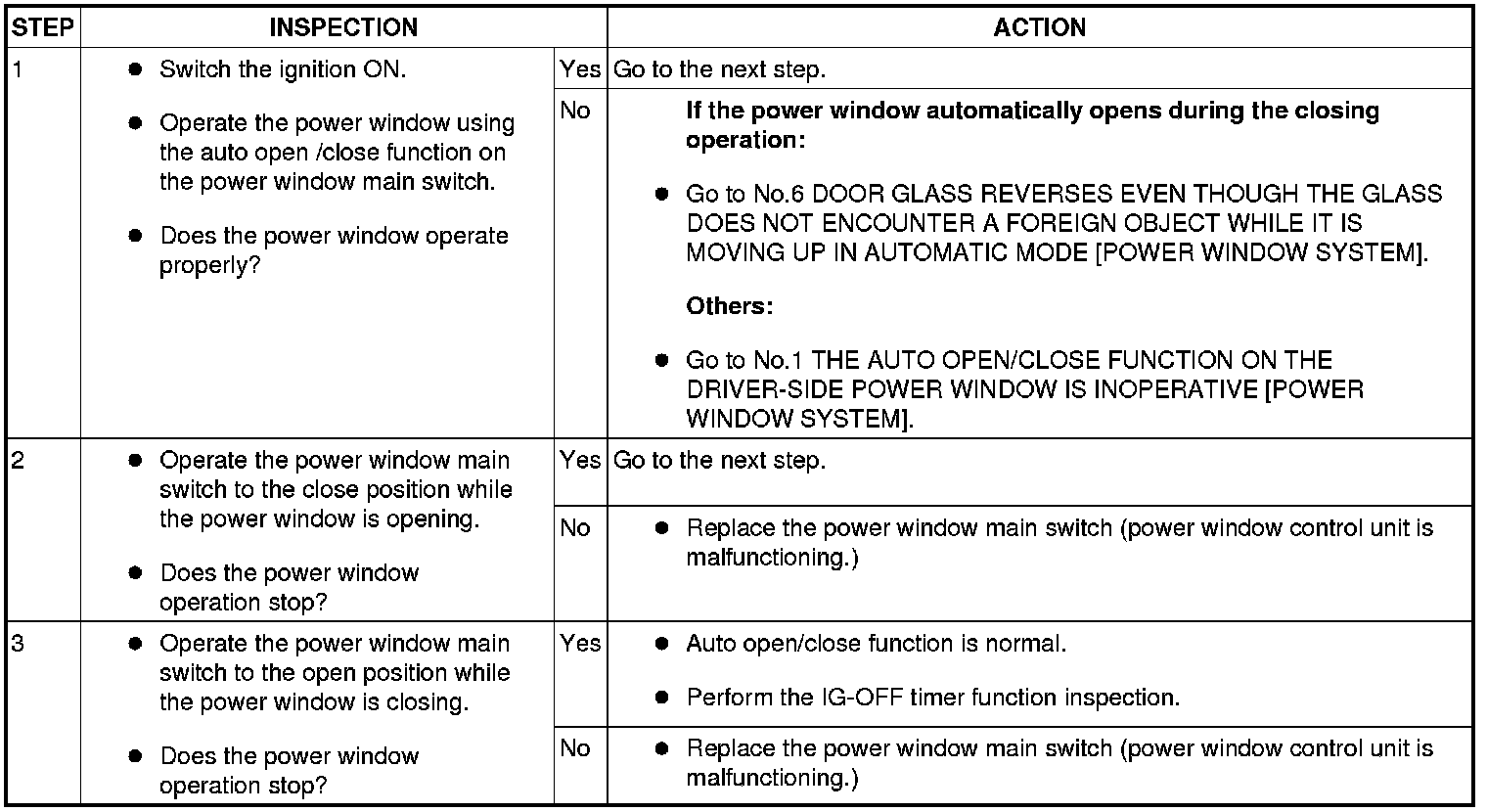

Auto Open/close Function (Driver Side) Inspection

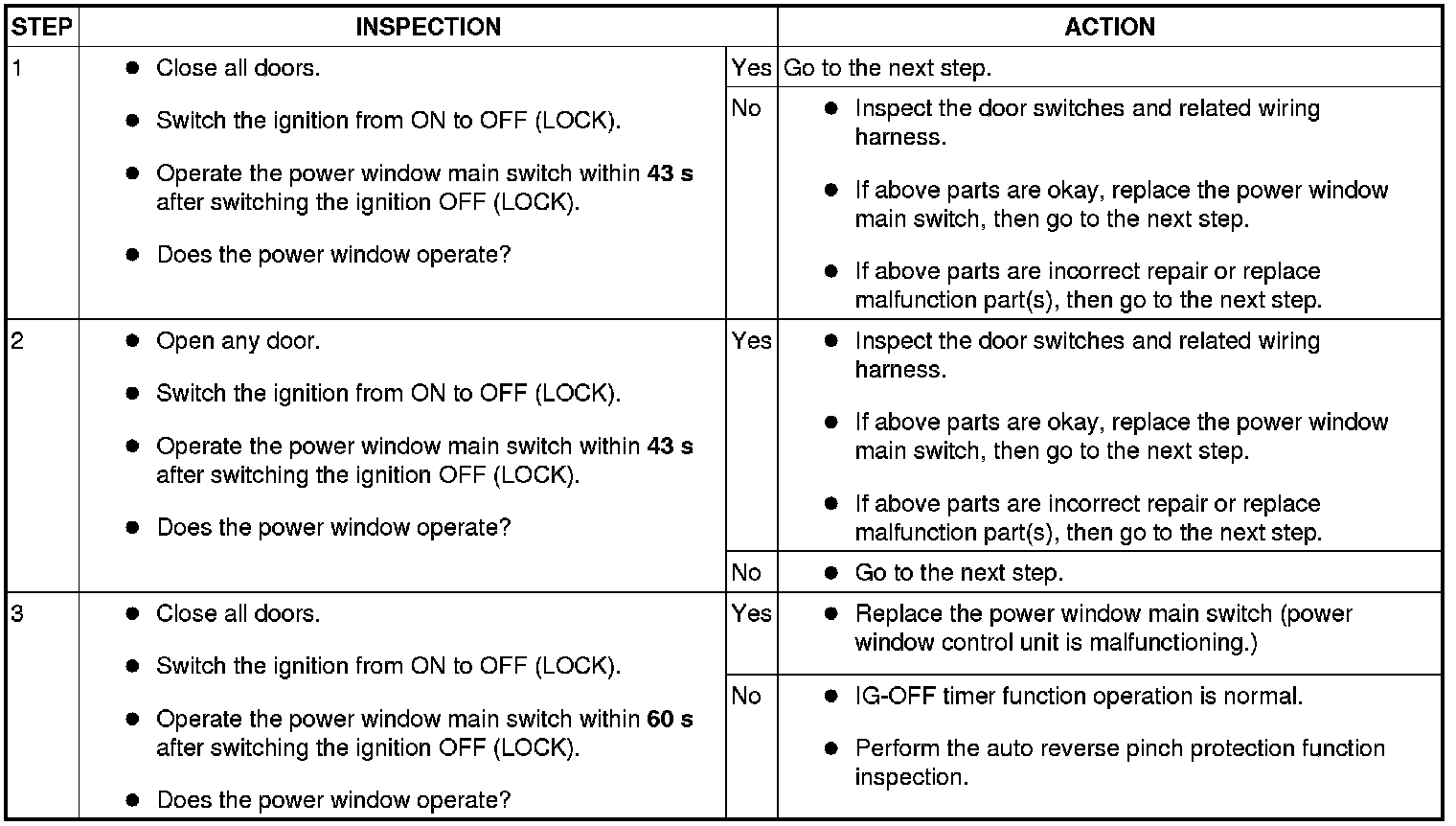

IG-OFF Timer Function Inspection

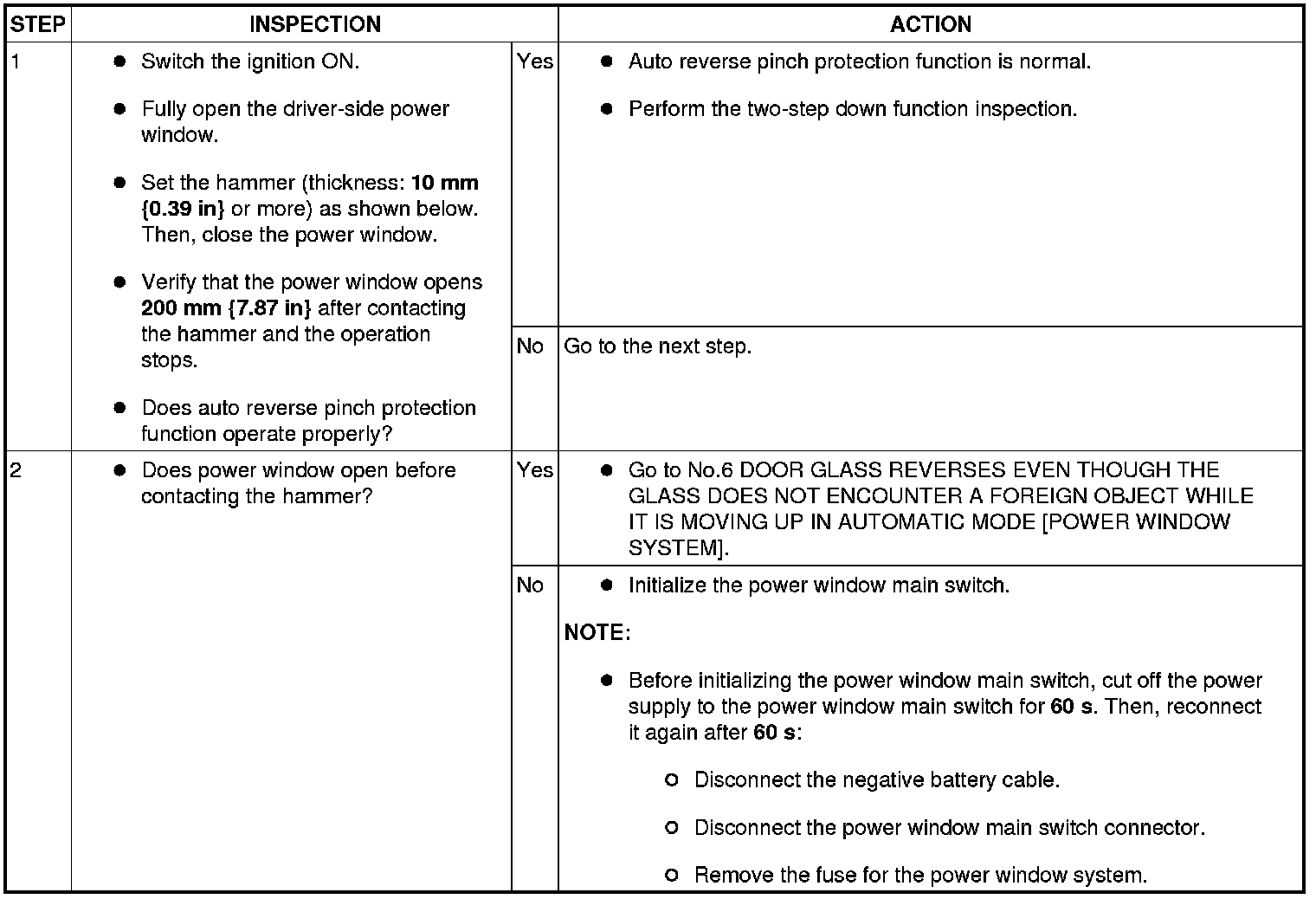

Auto Reverse Pinch Protection Function Inspection

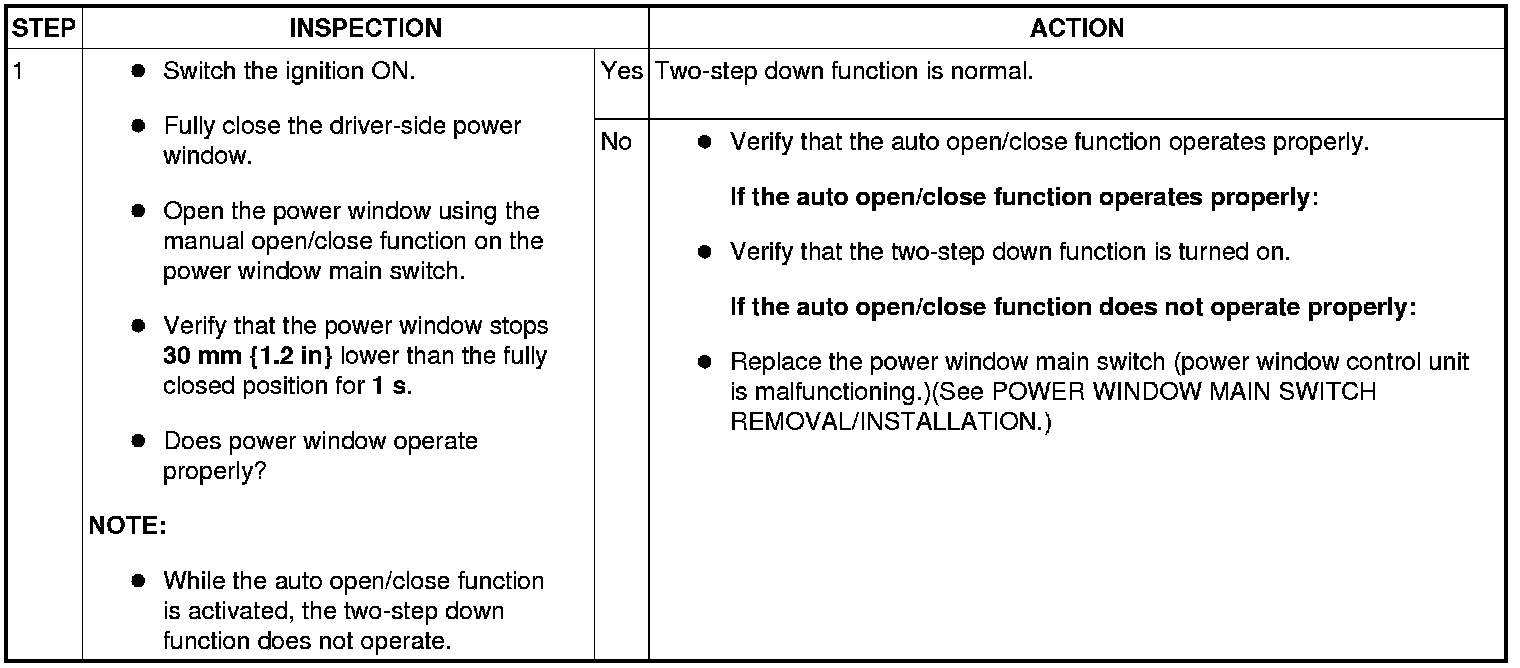

Two-step down function Inspection

NOTE:
- Before inspecting the two-step down function, make sure that the two-step down function is turned on.
- The two-step down position is adjustable within 20-100 mm {0.79-3.94 in}.
- The two-step down function does not operate while the IG-OFF timer function is activated.
