Front Door Quarter Glass Removal/Installation

Fully open the front door glass.
Disconnect the negative battery cable.
Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

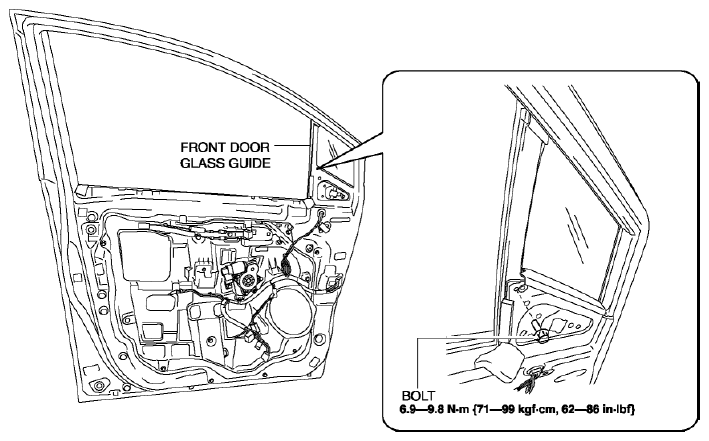

Remove the bolt.

Fig 1: Front Door Glass Guide And Bolt With Torque Specifications

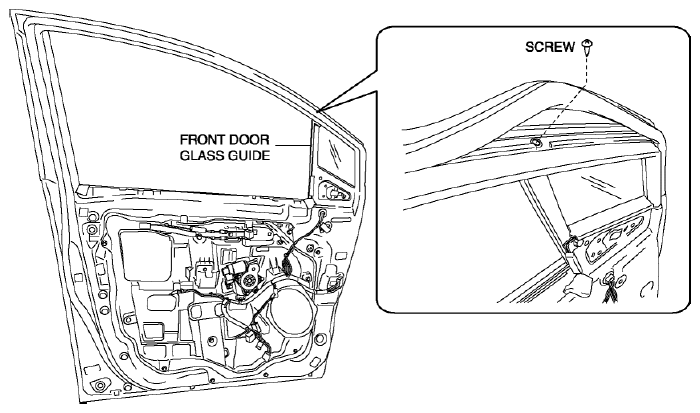

Remove the screw.

Fig 2: Front Door Glass Guide And Screw With Torque Specifications

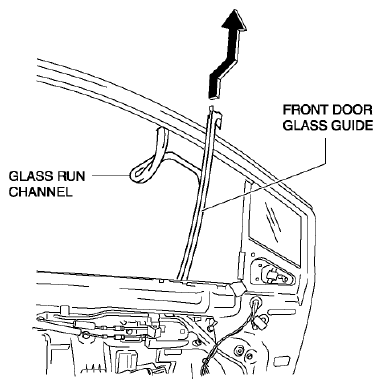

Remove the front door glass guide and glass run channel as a single unit.

Fig 3: Removing Front Door Glass Guide And Glass Run Channel As A Single Unit

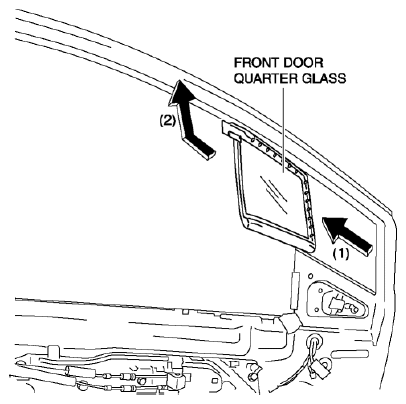

Remove the front door quarter glass.

Fig 4: Front Door Quarter Glass
Install in the reverse order of removal.
