Rear Side

Disconnect the negative battery cable.
Remove the following parts:
1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
4. Rear power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

Apply battery positive voltage and connect the ground to the rear power window motor terminals, and then inspect the rear power window motor operation.

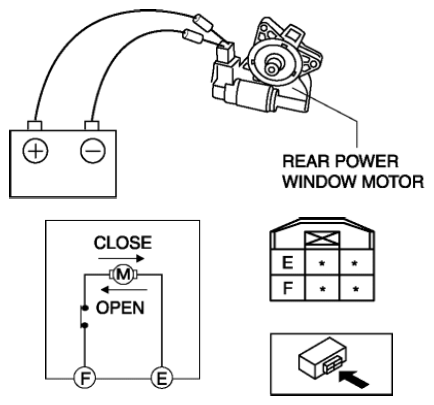

Fig 1: Inspecting Rear Power Window Motor Operation

If not as indicated in the table, replace the rear power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

Operation	Terminal
Operation	E	F
Open	B+	Ground
Close	Ground	B+
