ELR Inspection
- Verify that the belt can be pulled out smoothly, and that it retracts smoothly.
- If there is any malfunction, replace the seat belt.
- Verify that the retractor locks when the belt is pulled quickly.
- If there is any malfunction, replace the seat belt.

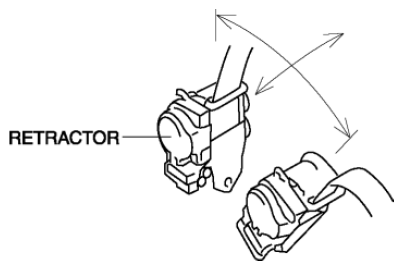

- Remove the retractor.
- While pulling the seat belt out, make sure that the seat belt does not lock when the retractor is tilted slowly up to 15°
from the mounted position and locks when the retractor is tilted 40° or more
.
- If there is any malfunction, replace the seat belt.
