Column Cover Removal/Installation

  1. Pull down the steering wheel.
  2. Pull the upper column cover in the direction of the arrow in the order of (1) and (2), then remove the upper column cover while detaching the hooks A and pins B.

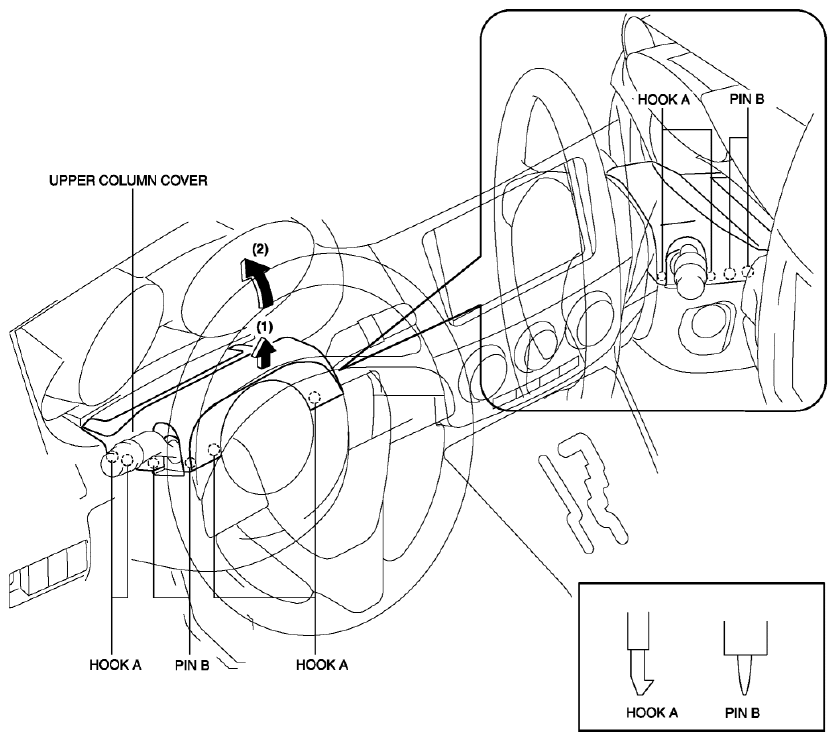

    Fig 1: Pulling Upper Column Cover
    G08153196
  3. Remove the upper column cover.
  4. Pull up the steering wheel.
  5. Retract the steering wheel to the end position.
  6. Remove the screws C.

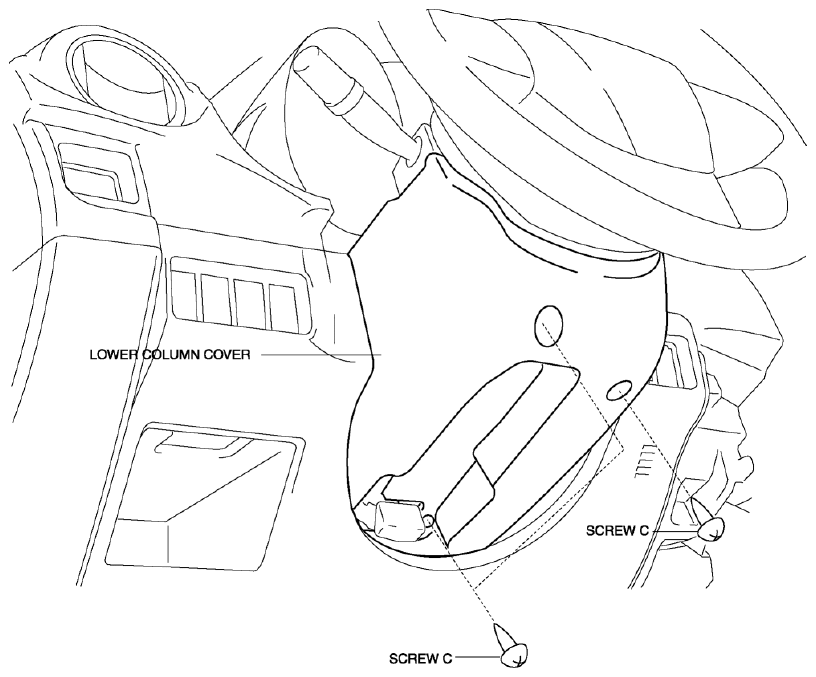

    Fig 2: Identifying Lower Column Cover And Screws C
    G08153197
  7. Remove the lower column cover in the direction of the arrow (4) while keeping it open in the direction of the arrow (3) shown in the figure.

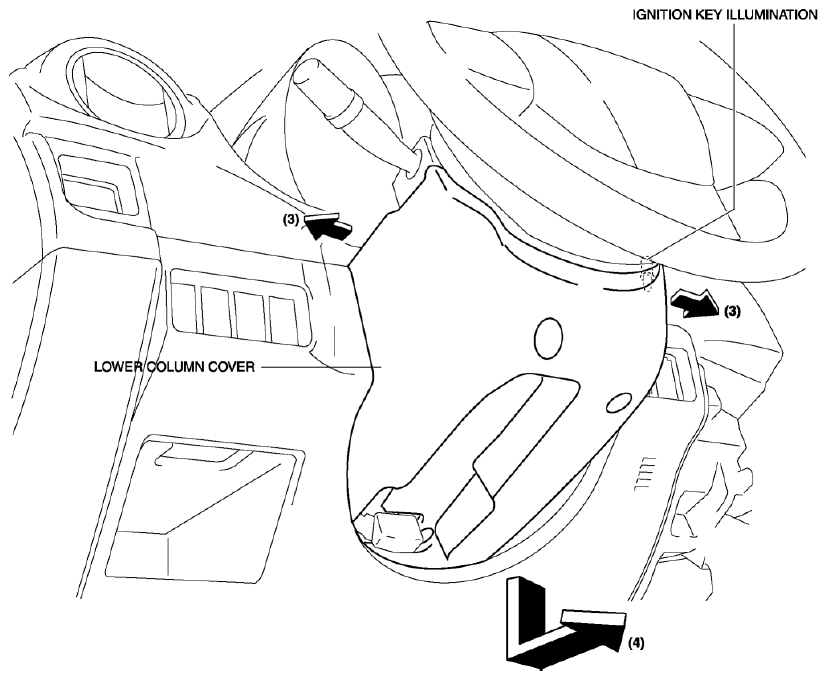

    Fig 3: Removing Lower Column Cover
    G08153198
  8. Remove the ignition key illumination.
  9. Install in the reverse order of removal.
