Relay Location

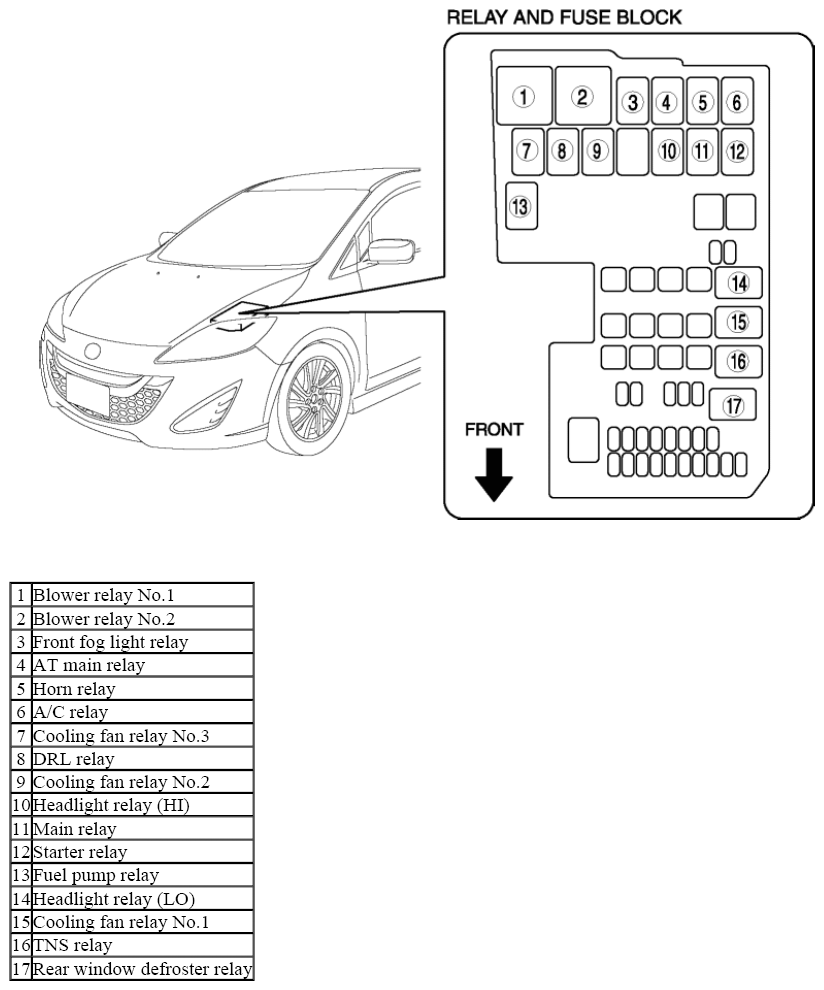

Fig 1: Identifying Engine Room Relay Box Relays

G08153502

ENGINE ROOM RELAY BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
Blower Relay No. 1
Blower Relay No. 2
Front Fog Light Relay
AT Main Relay
Horn Relay
A/C Relay
Cooling Fan Relay No. 3
DRL Relay
Cooling Fan Relay No. 2
Headlight Relay (Hi)
Main Relay
Starter Relay
Fuel Pump Relay
Headlight Relay (Lo)
Cooling Fan Relay No. 1
TNS Relay
Rear Window Defroster Relay
