Filament Repair

  1. Clean the filaments using isopropyl alcohol.
  2. Affix tape along both sides of the filament to be repaired.

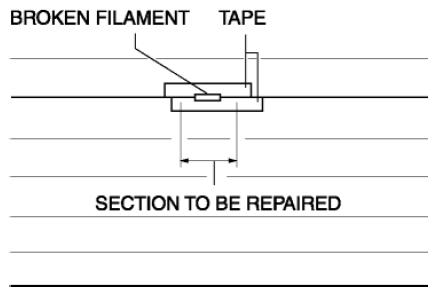

    Fig 1: Identifying Filament Repaired Section
    G08152892
  3. Apply commercially available silver paint using a fine-tipped tool such as a small brush or a drawing pen.
  4. After 2-3 min  , peel off the tape being careful not to damage the painted area.
    CAUTION:
    • Do not operate the rear window defroster until the repaired area is completely dried to prevent a malfunction.
  5. Completely dry the repaired area referring the following:
    • If the room temperature is 25 °C {77 °F}  , leave it for 24 h  .
    • When using a hot air blower, dry for 30 min  at 150 °C {302 °F}  .
