Mirror Base Installation
WARNING:
- Always wear gloves when using a utility knife. Using a utility knife with bare hands can cause injury.
- Using a utility knife, remove sealant from the base and the windshield completely.
- Clean and degrease the ceramic part of the windshield and the base.CAUTION:
- To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
- Apply primer to the area of the adhesive for the front window glass and base.
- Apply glass primer on the windshield, and body primer on the base, then allow it to dry for approx. 20-30 min .

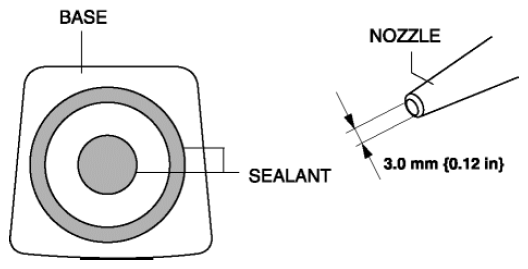

- Apply sealant 3 mm {0.1 in} in thickness as shown in the figure.

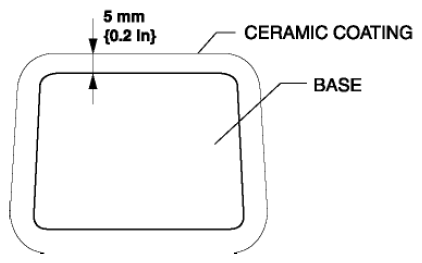

- Install the base to the position 5 mm {0.2 in} from the edge of the ceramic area, then press it firmly.
- Remove the excess sealant using isopropyl alcohol. Sealant hardening time
Temperature Surface hardening time Hardening time before driving 5 °C {41 °F} Approx. 1.5 h Approx. 12 h 20 °C {68 °F} Approx. 1 h Approx. 4 h 35 °C {98 °F} Approx. 10 min Approx. 2 h - Install the rearview mirror. (See REARVIEW MIRROR INSTALLATION .)
