Outer Mirror Glass Installation

  1. Connect the heated outer mirror connector (vehicles with heated outer mirror).

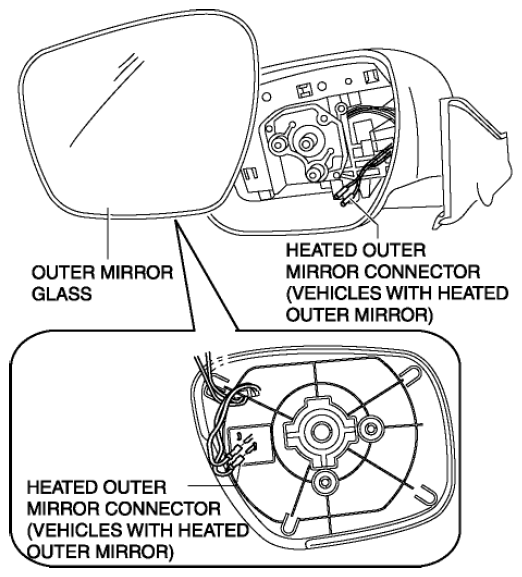

    Fig 1: Identifying Outer Mirror Glass And Heated Outer Mirror Connector
    G08152885
  2. Press part C on the outer mirror glass and install pin C.

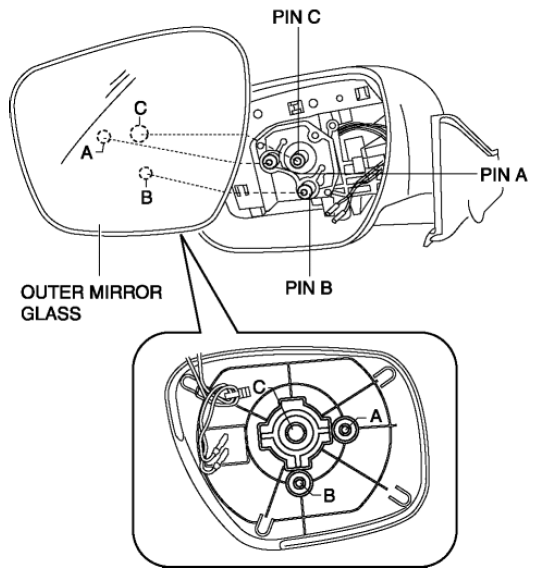

    Fig 2: Identifying Outer Mirror Glass And Pins A, B And C
    G08152886
  3. Press part A on the outer mirror glass and install pin A.
  4. Press part B on the outer mirror glass and install pins B.
  5. Connect the negative battery cable.
