Power Outer Mirror Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Disconnect the power outer mirror connector.

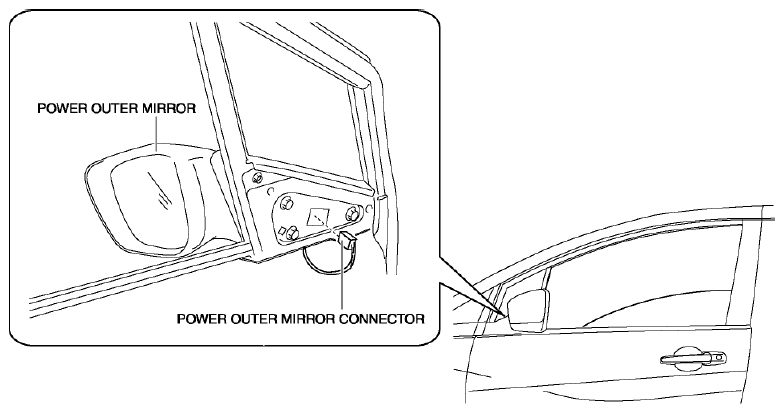

    Fig 1: Identifying Power Outer Mirror And Connector
    G08152877
  4. Remove the bolts in the order shown in the figure.

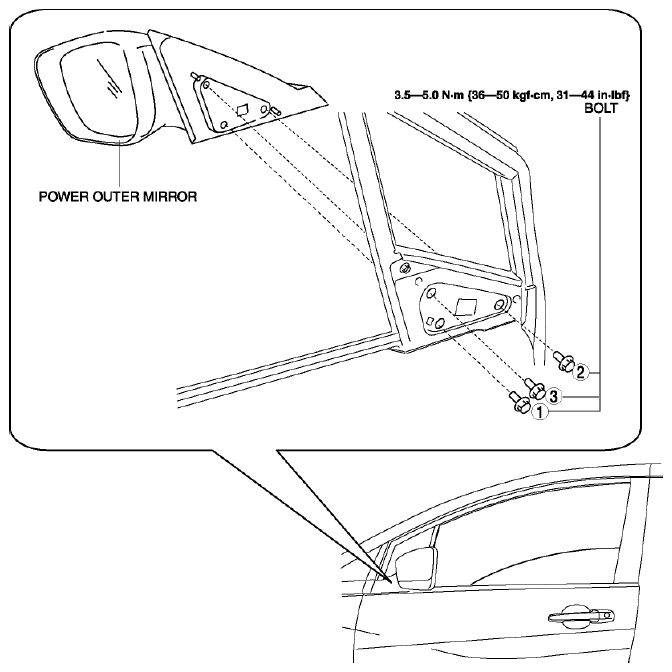

    Fig 2: Power Outer Mirror Bolts Removing Order With Torque Specifications
    G08152878
    CAUTION:
    • Always install the bolts in the reverse order of removal.
  5. Remove the power outer mirror.
  6. Install in the reverse order of removal.
