Driver Side

Disconnect the negative battery cable.
Remove the following parts:
1. Driver-side inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Driver-side front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Driver-side front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
4. Driver-side front power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

Apply battery positive voltage and connect the ground to the driver-side power window motor terminals E and F, and then inspect the driver-side power window motor operation.

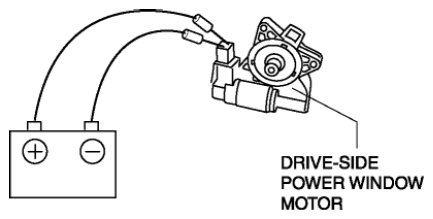

Fig 1: Inspecting Driver-Side Power Window Motor Operation

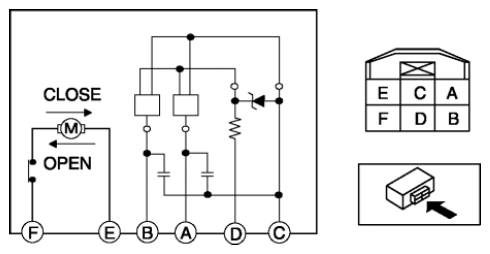

Fig 2: Driver-Side Power Window Motor Circuit

If not as indicated in the table, replace the driver-side power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

Operation	Terminal
Operation	E	F
Open	B+	Ground
Close	Ground	B+

Connect the battery positive voltage to driver-side power window motor terminal D and connect terminal C to ground.
Operate the driver-side power window motor and measure the voltage at terminals A and B.
- If there is any malfunction, replace the driver-side power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
  Voltage
- Pulse: max. 5 V/min. 0 V
