Not Reusing Quarter Window Glass

NOTE:
  • If it is difficult to cut sealant, use piano wire and follow the procedure under "Reusing Quarter Window Glass".
  1. Cut out the sealant all around the glass using a sealant remover and utility knife.

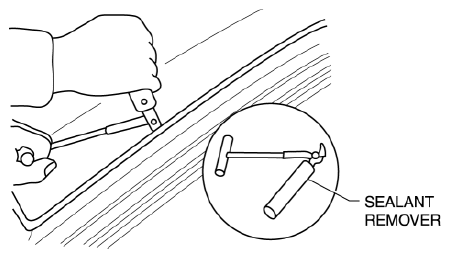

    Fig 1: Cutting Sealant Using Sealant Remover And Utility Knife
    G08152845
    WARNING:
    • Always wear gloves when using a utility knife. Using a utility knife with bare hands can cause injury.
  2. Remove the quarter window glass.
