Sliding Door Quarter Glass Removal/Installation

Fully open the sliding door glass.
Disconnect the negative battery cable.
Remove the following parts:
1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
Remove the bolt.

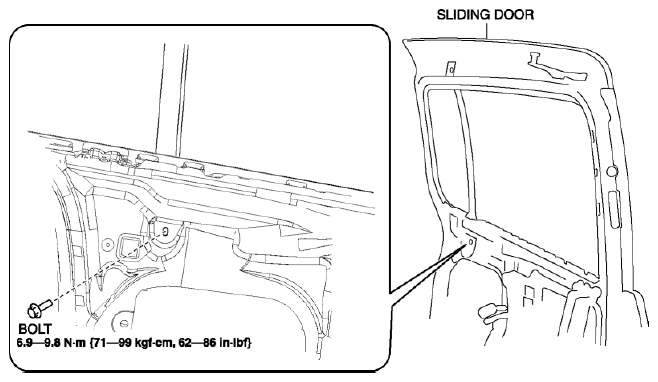

Fig 1: Sliding Door And Bolt With Torque Specifications
Remove the screw.

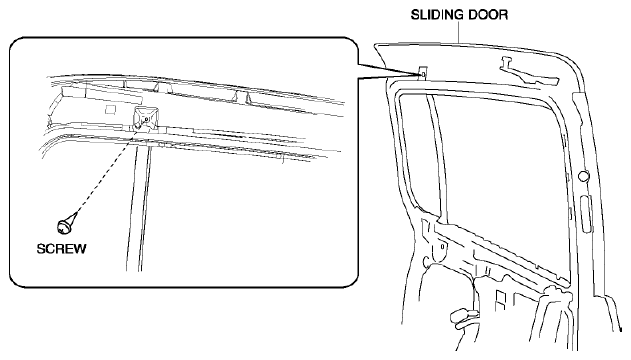

Fig 2: Sliding Door And Screw With Torque Specifications
Remove the sliding door glass guide and glass run channel as a single unit.

Fig 3: Removing Sliding Door Glass Guide And Glass Run Channel As A Single Unit
Tilt the sliding door quarter glass in the direction of arrow (1) shown in the figure and remove it in the direction of arrow (2).

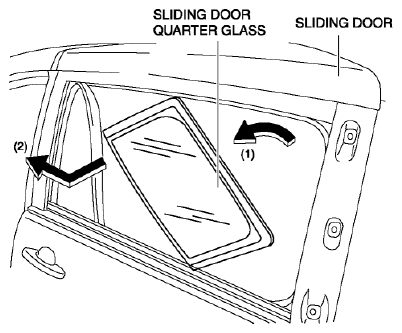

Fig 4: Tilting Sliding Door Quarter Glass
Install in the reverse order of removal.
