Two-Step Down Function Activation/Deactivation Switching Procedure
NOTE:
For the following switching procedures, operate the power window main switch on the driver side.

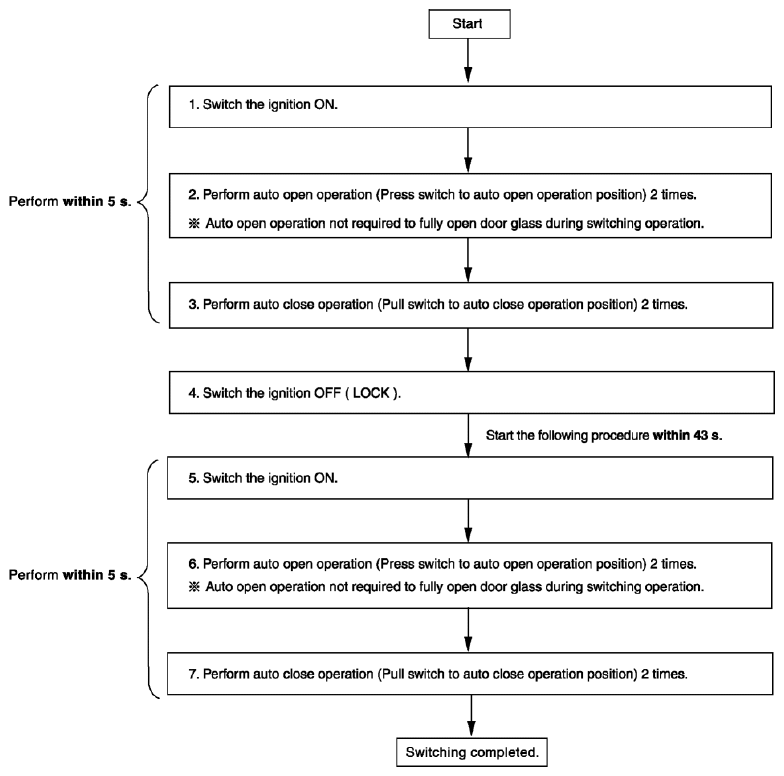

Fig 1: Two-Step Down Function Activation/Deactivation Switching Procedure Flow Chart
