Windshield Installation

WARNING:
  • Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.
CAUTION:
  • If a door is opened or closed when all the window glass is closed, the resulting change in air pressure could cause the sealant to crack preventing the proper installation of the glass. Keep the door glass opened until the windshield installation is completed.
  1. Remove the sealant along the perimeter of the glass using a utility knife. (When reusing the glass)
  2. Clean and degrease an approx. 50 mm {2.0 in}  wide strip along the perimeter of the windshield.
  3. Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.
  4. Align the marks made before removal and install the pin to the windshield referring to the figure. (when reusing the glass, and the pin was removed)

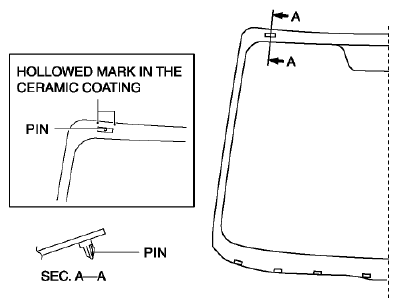

    Fig 1: Identifying Position Of Pin On Windshield
    G08152825
  5. Install the windshield molding.

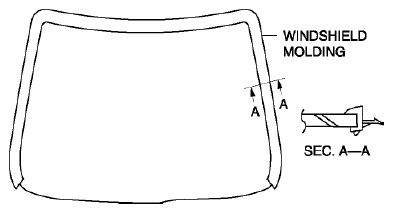

    Fig 2: Identifying Windshield Molding
    G08152826
  6. Use glass primer on the glass, then allow it to dry for approx. 30 min  .
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    NOTE:
    • Make sure to apply primer to the hollowed marks in the ceramic coating.

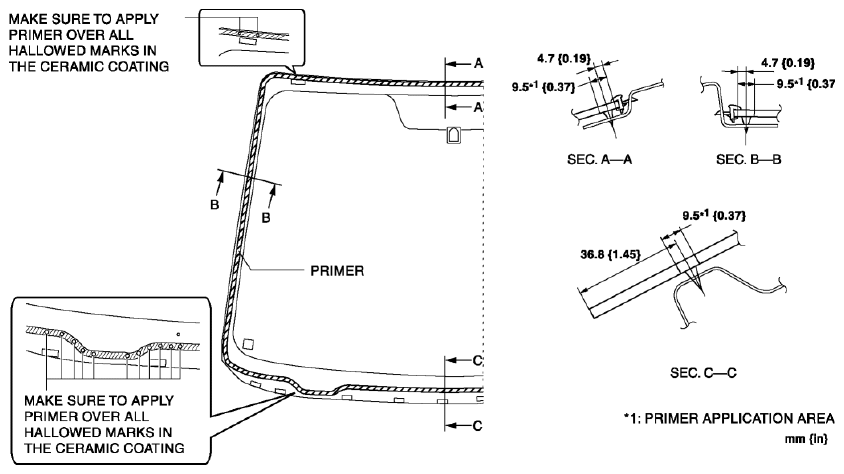

    Fig 3: Identifying Primer Applying Dimensions
    G08152827
  7. Cut away the old sealant using a utility knife so that 12 mm {0.47 in}  thickness of sealant remains along the perimeter of the frame.
    Fig 4: Cutting Sealant Using Knife
    G08152828
  8. If the sealant has come off completely in any one place, apply some primer after degreasing, and allow it approx. 30 min  to dry. Then apply 2 mm {0.08 in}  thickness of new sealant.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
  9. Clean and degrease along the perimeter of the bonding area on the body.
  10. Apply body primer on the body as shown in the figure, then allow it to dry for approx. 30 min  .
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    NOTE:
    • Apply primer to the hollowed marks in the ceramic coating.

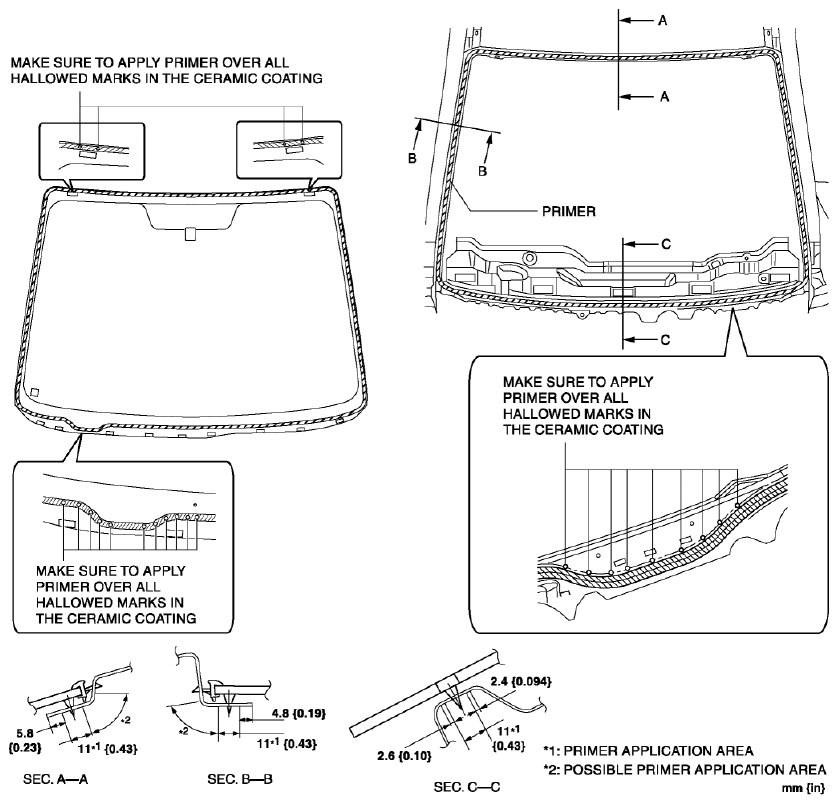

    Fig 5: Identifying Body Primer Applying Dimensions
    G08152829
  11. Apply sealant to the area of the glass surface as shown in the figure.

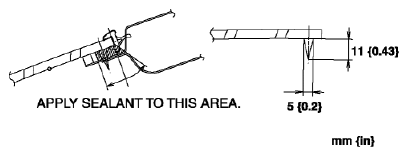

    Fig 6: Identifying Sealant Applying Area Of Glass
    G08152830
  12. Insert the windshield locator pins to the body and install the windshield.
  13. Verify that the clearance of the A-pillar is within the range shown in the figure, and press along the perimeter of the glass.

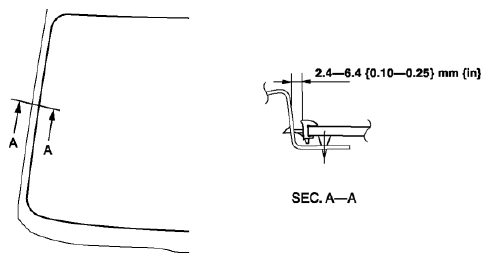

    Fig 7: Identifying Clearance Of A-Pillar
    G08152831
  14. Install the headliner.
  15. Install the following parts:
    1. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
    4. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    5. Rearview mirror (See REARVIEW MIRROR REMOVAL .)
    6. Rain sensor (See RAIN SENSOR REMOVAL/INSTALLATION .)
    7. Cowl panel (See COWL PANEL REMOVAL/INSTALLATION .)
    8. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    9. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  16. Allow the sealant to harden completely. Sealant hardening time: 24 h
  17. Connect the negative battery cable.
