Not Reusing Windshield

NOTE:
  • For the areas of the sealant that are difficult to cut, use the piano wire and follow the procedure under "Reusing Windshield".
WARNING:
  • Using piano wire with bare hands can cause injury. Always wear gloves when using piano wire.
  1. Cut out the sealant all around the glass using a sealant remover.

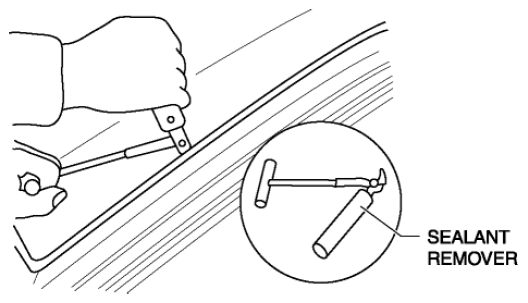

    Fig 1: Cutting Out Of Sealant Using Sealant Remover
    G08152822
  2. Remove the windshield.
