Relay And Fuse Block Removal/Installation: Installation

CAUTION:

If the terminal is installed incorrectly, it could damage electrical accessories and burn wiring harnesses. When relocating terminals after replacing the relay and fuse block, always reposition terminals one by one and perform the following procedures correctly so that the installation positions are correct.

NOTE:

For easier access when performing terminal relocation, disassemble the relay and fuse block before removing the terminal.

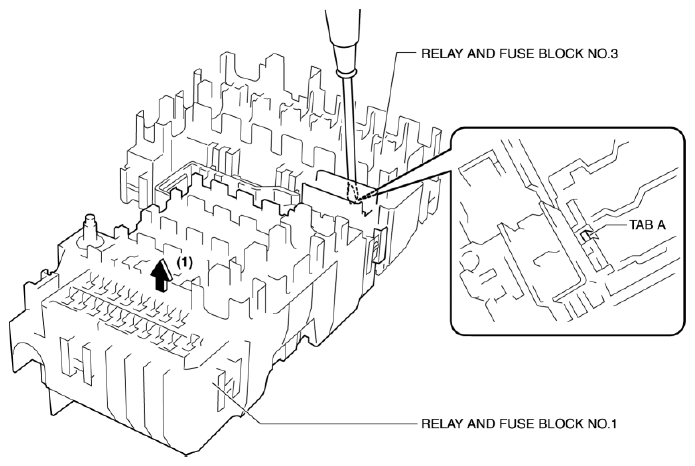

Remove relay and fuse block No. 1 from relay and fuse block No.3 in the direction of the arrow (1) shown in the figure with tab A of relay and fuse block No.1 released.

Fig 1: Removing Relay And Fuse Block No. 1 From Relay And Fuse Block No.3
Remove relay and fuse block No. 2 from relay and fuse block No.3 in the direction of the arrow (2) shown in the figure with tab B of relay and fuse block No.2 released.

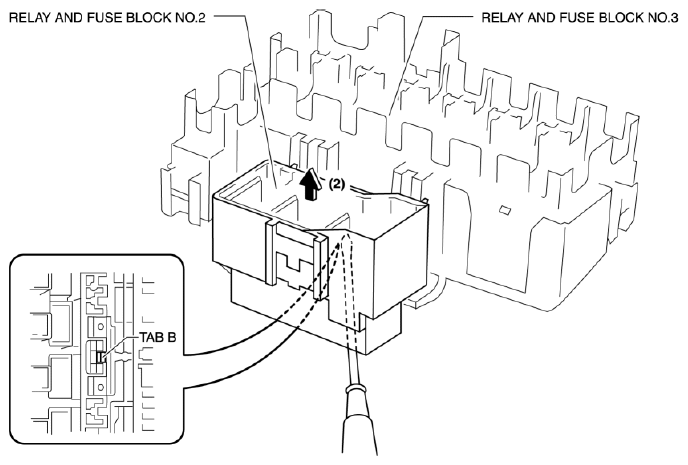

Fig 2: Removing Relay And Fuse Block No. 2 From Relay And Fuse Block No.3
Move the flathead screwdriver in the direction of the arrow (3) shown in the figure, release stopper C, pull the wiring harness in the direction of the arrow (4), and then remove the terminal from the relay and fuse block.

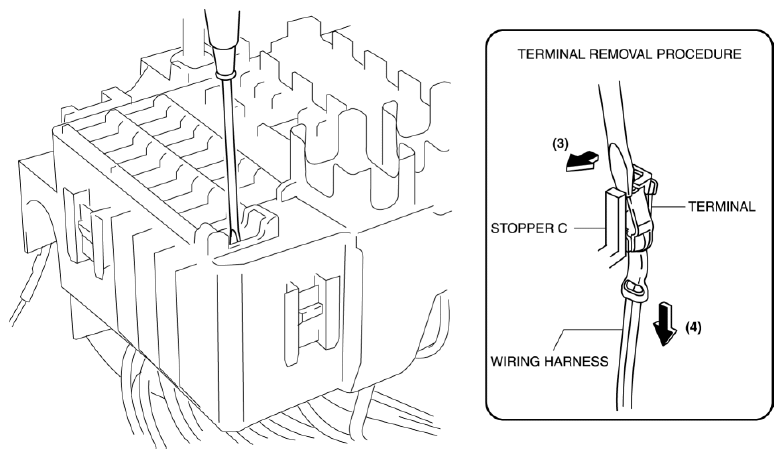

Fig 3: Removing Terminal From Relay And Fuse Block

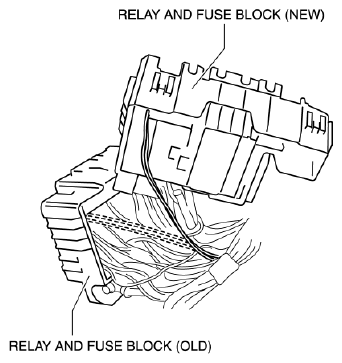

For terminal relocation, line up the relays and fuse blocks of old and new parts and always verify each of the wiring harnesses in the wiring diagram.

Fig 4: Identifying Relays And Fuse Blocks
CAUTION:
- A terminal disconnection could cause electronic components and the system to not operate due to poor contact. After terminal relocation, lightly pull the wiring harnesses to verify that they cannot be pulled out.
NOTE:
- This procedure is performed for relay and fuse blocks No.1, 2, and 3.

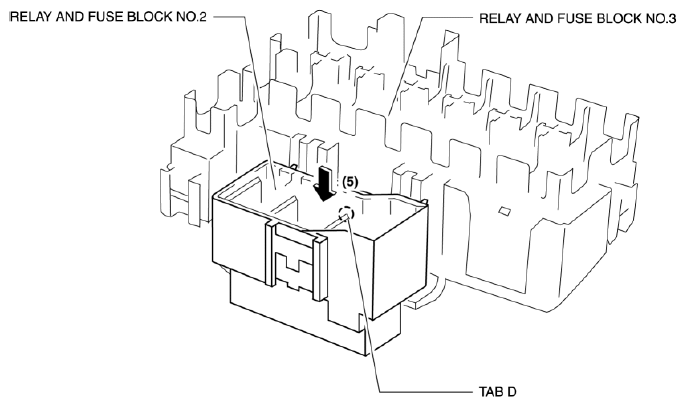

Move relay and fuse block No.2 in the direction of the arrow (5) shown in the figure and install it to relay and fuse block No.3.

Fig 5: Identifying Relay And Fuse Block No.2 Moving Direction And Relay And Fuse Block No.3
Move relay and fuse block No.1 in the direction of the arrow (6) shown in the figure and install it to relay and fuse block No.3.

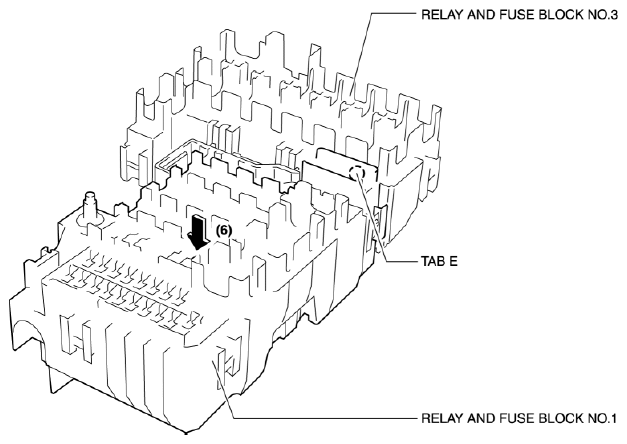

Fig 6: Identifying Relay And Fuse Block No.1 Moving Direction And Relay And Fuse Block No.3
Install all the relays and fuses.
Install bolt A.

Fig 7: Bolt A With Torque Specifications
Connect the relay and fuse block connector.
Insert tab F into the wheel apron panel (front) and install the relay and fuse block lower cover in the direction of the arrow (7) shown in the figure.

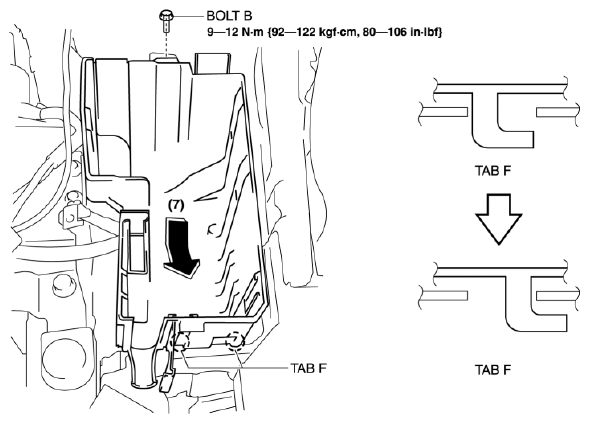

Fig 8: Bolt B, Wheel Apron Panel Tab F (Front) And Relay And Fuse Block Lower Cover With Torque Specifications
Install bolt B.
Install nut C and the wiring harness.

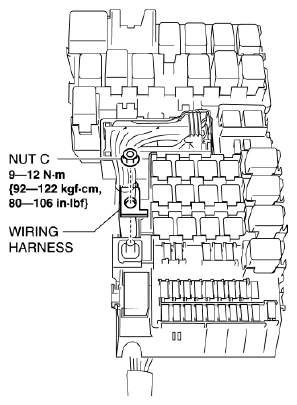

Fig 9: Nut C And Wiring Harness With Torque Specifications
NOTE:
- For easier access after relay and fuse block replacement, do not assemble the relay and fuse block to the relay and fuse block lower cover.
Install securing bolt D with the ground wire branching from the front wiring harness.

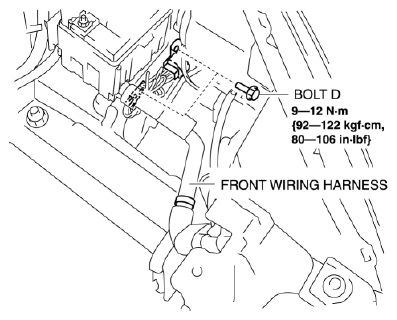

Fig 10: Bolt D And Front Wiring Harness With Torque Specifications
Install the following parts.
1. Battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
2. PCM connectors. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
3. PCM cover No.1. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
4. Battery. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
5. Battery clamp. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
6. Battery box. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
7. Positive battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
8. Fresh-air duct (No.3). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.5] .)
9. Air cleaner case. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.5] .)
10. Air cleaner element. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.5] .)
11. Air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.5] .)
12. Resonance chamber.(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.5] .)
13. Air cleaner cover. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.5] .)
14. MAF/IAT sensor connectors. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.5] .)
After relay and fuse block replacement, perform verification. (See VERIFY RELAY AND FUSE BLOCK REPLACEMENT .)
Verify that there is no malfunction after relay and fuse block replacement, and assemble the relay and fuse block to the relay and fuse block lower cover.
Secure the relay and fuse block lower cover and front wiring harness using wiring harness tape.

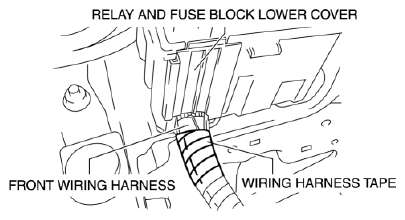

Fig 11: Securing Relay And Fuse Block Lower Cover And Front Wiring Harness Using Wiring Harness Tape
Install front wiring harness securing clip G.

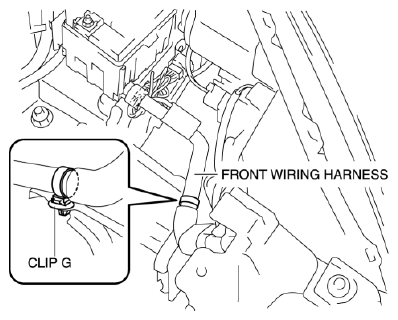

Fig 12: Identifying Front Wiring Harness And Clip G

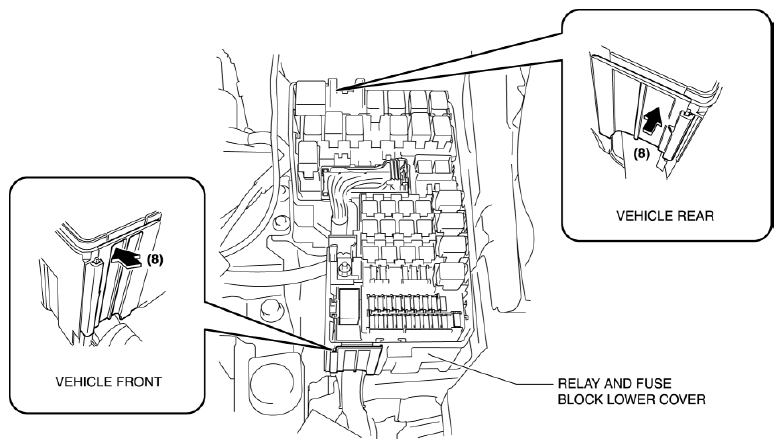

Close the cover of the relay and fuse block lower cover in the direction of the arrow (8) shown in the figure.

Fig 13: Identifying Relay And Fuse Block Lower Cover Closing Direction

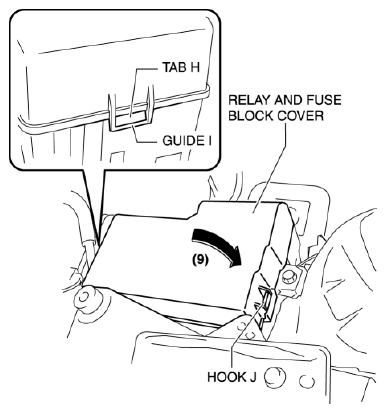

Tilt the relay and fuse block cover in the direction of the arrow (9) shown in the figure while hooking guide I to tab H to engage with hook J.

Fig 14: Identifying Relay And Fuse Block Cover Tilting Direction, Guide I, Tab H And Hook J
CAUTION:
- If tab H is installed after engaging hook J, the relay and fuse block cover could be damaged. Hook guide I to tab H before installing the relay and fuse block cover.
Connect the negative battery cable.
Install the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.5] .)
