Engine Control System Wiring Diagram

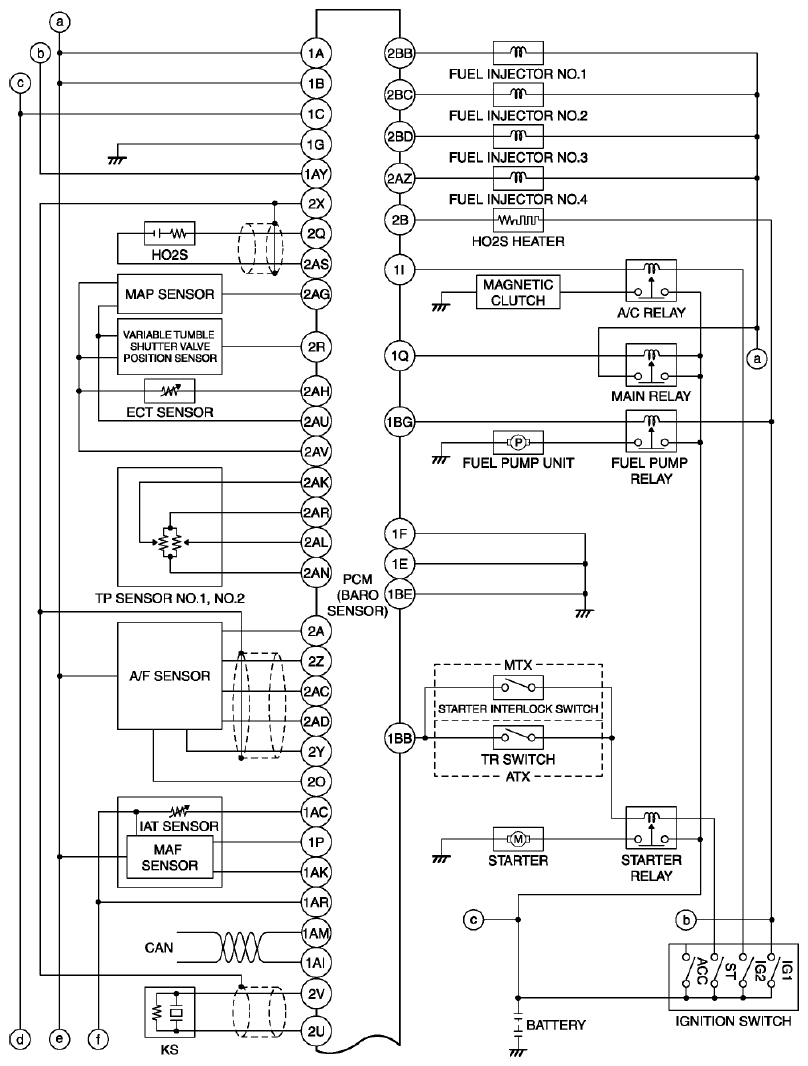

Fig 1: Engine Control System Wiring Diagram (1 Of 2)
G08150311

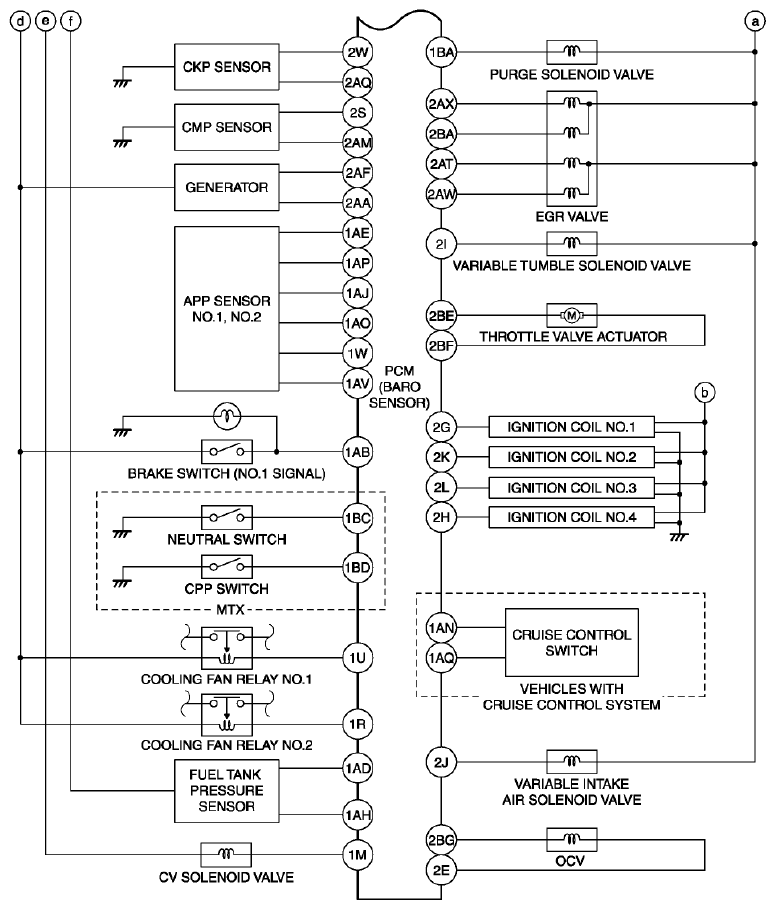

Fig 2: Engine Control System Wiring Diagram (2 Of 2)
G08150312
