OCV control signal

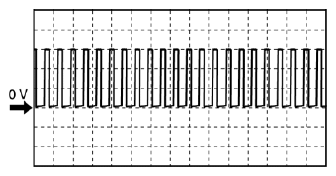

Fig 1: OCV Control Signal Voltage Signal Waveform

PCM terminals

• 2E(+)-body ground(-)

  Oscilloscope setting

• 5 V/DIV (Y), 10 ms/DIV (X), DC range

  Vehicle condition

• Racing
