Pcm Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  3. Remove the PCM cover No.1. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  4. Disconnect the PCM connector.
  5. Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  6. Remove in the order indicated in the table.

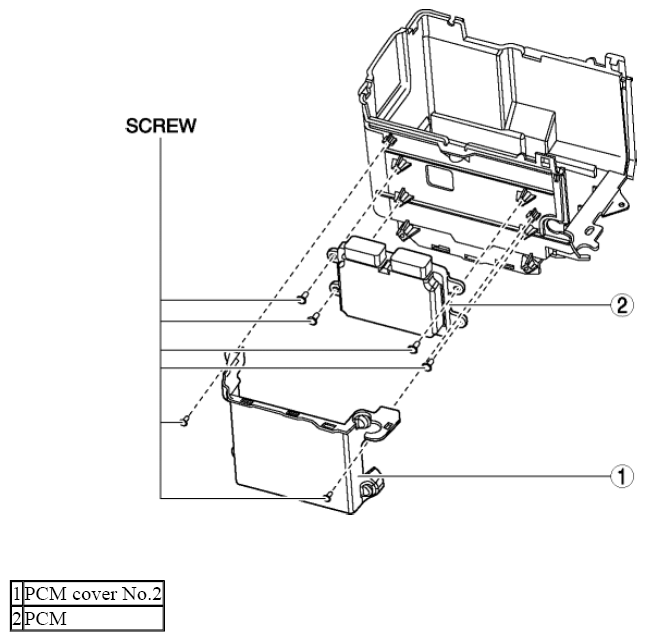

    Fig 1: Identifying PCM Cover No.2 And Screw
    G08150313
  7. Install in the reverse order of removal.
  8. When replacing the PCM on the vehicles, perform the following:
