Buckle Switch Inspection

  1. Switch the ignition to off.
  2. Disconnect the negative battery cable.
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Remove the front buckle. (See FRONT BUCKLE REMOVAL/INSTALLATION .)
  5. Inspect for continuity between the buckle switch terminals using a tester.

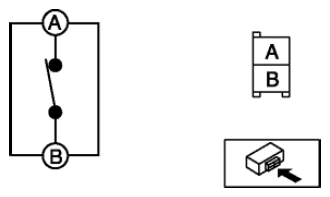

    Fig 1: Buckle Switch Circuit
    G08152560
    • If not as indicated in the table, replace the front buckle.

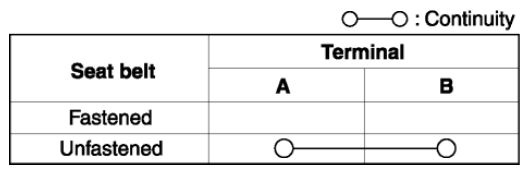

    Fig 2: Buckle Switch Continuity Chart
    G08152561
