Front Buckle Removal/Installation

  1. Switch the ignition to off.
  2. Disconnect the negative battery cable.
  3. Remove the front seat belt anchor cover. (passenger-side)
  4. Remove the front seat belt lower anchor installation bolt. (passenger-side)
  5. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  6. Remove the bolt.

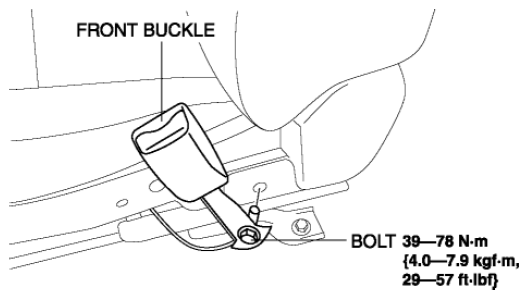

    Fig 1: Front Buckle And Bolt With Torque Specifications
    G08152557
  7. Remove the front buckle.
  8. Install in the reverse order of removal.
