Cover B Removal Note

  1. Detach the tab A and pull the cover B in the direction of arrow (1)

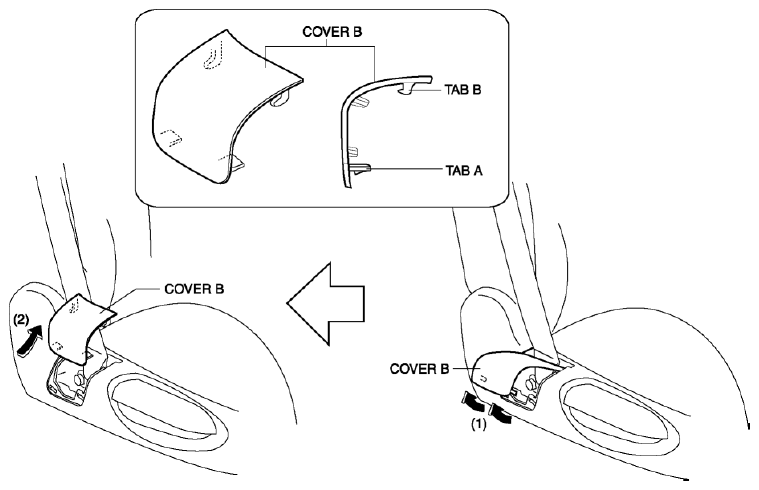

    Fig 1: Pulling Cover B
    G08152550
  2. Pull the cover B in the direction shown in the figure (2) and remove it.
