Second-Row Buckle Removal/Installation

  1. Remove the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
  2. Remove the seat under tray. (See SECOND-ROW SEAT UNDER TRAY REMOVAL/INSTALLATION .)
  3. Remove the bolt.

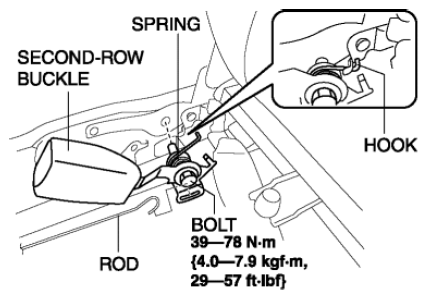

    Fig 1: Second-Row Buckle, Spring, Rod, Hook And Bolt With Torque Specifications
    G08152558
  4. Detach the spring hook.
  5. Detach the rod.
  6. Remove the second-row buckle.
  7. Install in the reverse order of removal.
