Third-Row Buckle Removal/Installation

  1. Remove the sub-trunk. (See SUB-TRUNK REMOVAL/INSTALLATION .)
  2. Remove the floor covering installation fasteners installed to the third-row seat.
  3. Remove the bolts.

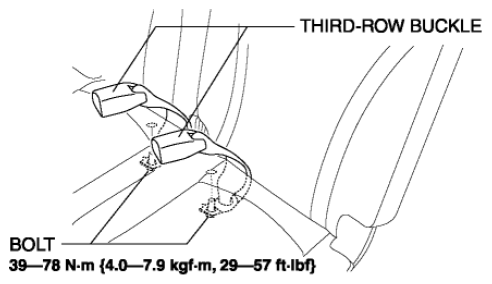

    Fig 1: Third-Row Buckle And Bolt With Torque Specifications
    G08152559
  4. Remove the third-row buckles.
  5. Install in the reverse order of removal.
