Total Toe-in Adjustment

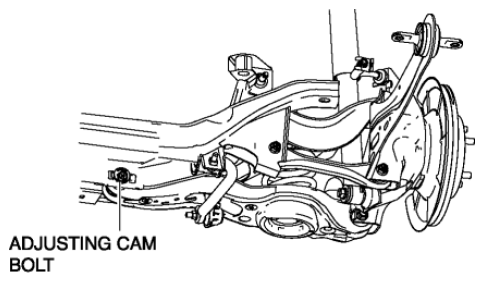

- Loosen the installation nut of the adjusting cam bolt.
- Rotate the adjusting cam bolt in either direction to adjust the toe-in.
Left wheel Right wheel Toe-out direction Clockwise Counterclockwise Toe-in direction Counterclockwise Clockwise - Tighten the nut.
Tightening torque
- 80-100 N.m {8.2-10 kgf.m, 60-73 ft.lbf}
