BODY CONTROL MODULE (BCM) CONFIGURATION

NOTE:
- Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the BCM CONFIGURATION.

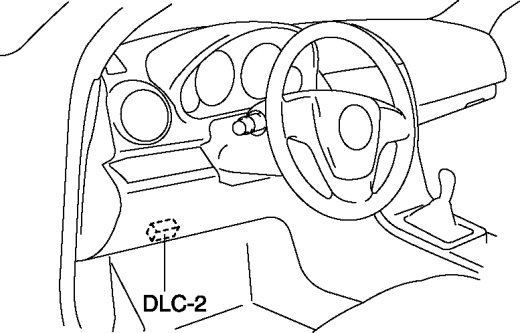

1. Connect the M-MDS to DLC-2.






2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

- When using the IDS (laptop PC)

1 Select "Module Programming".

3. Then, select items from the screen menu in the following order.
1 Select "Programmable Module Installation".
2 Select "BCM/GEM".

4. Perform the configuration according to the directions on the screen.

5. Retrieve DTCs by the M-MDS, then verify that there is no DTC present.

- If a DTC(s) is detected, perform the applicable DTC inspection. BCM - DTC Table
