Advanced Keyless Entry And Push Button Start System

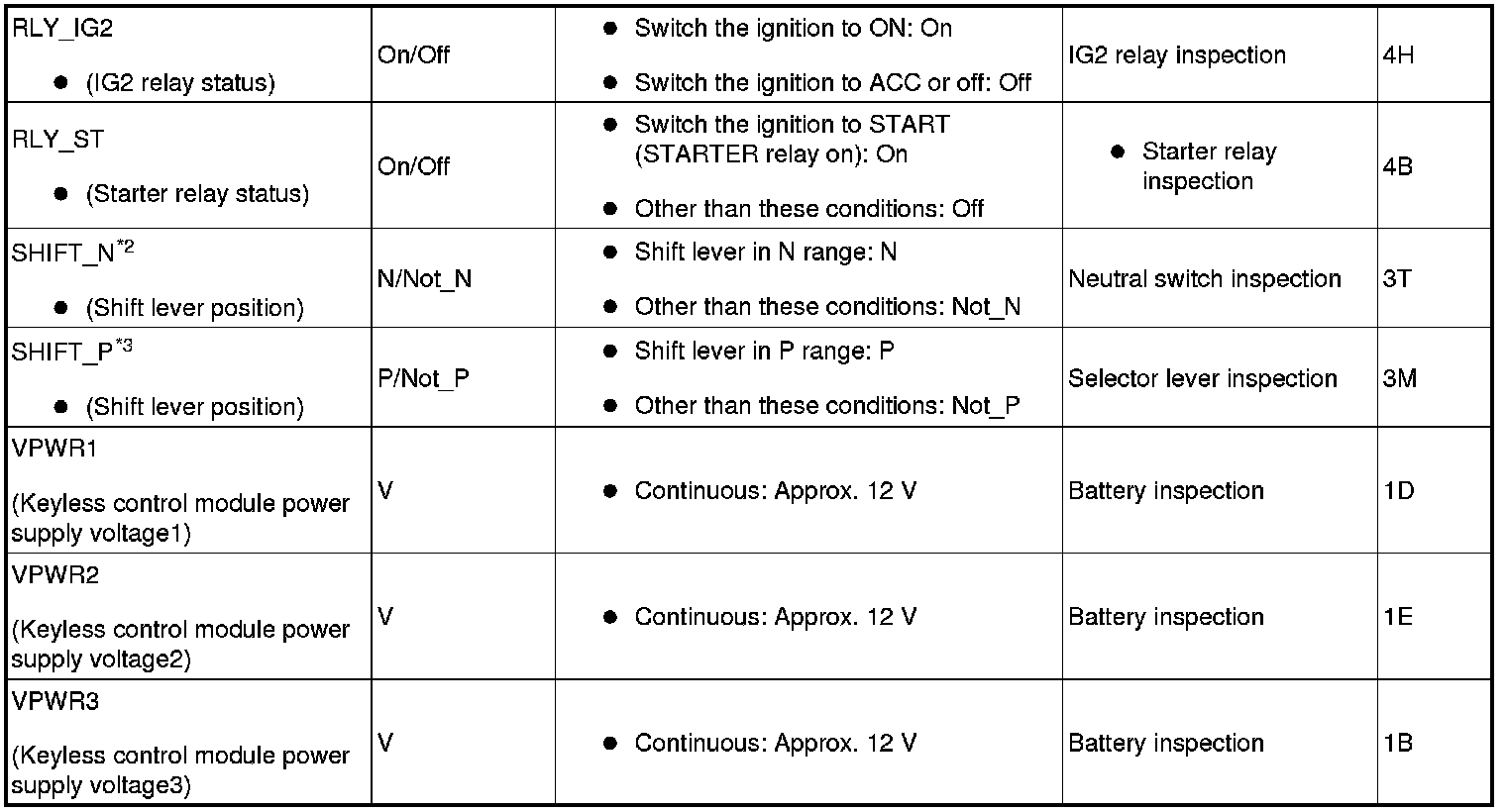

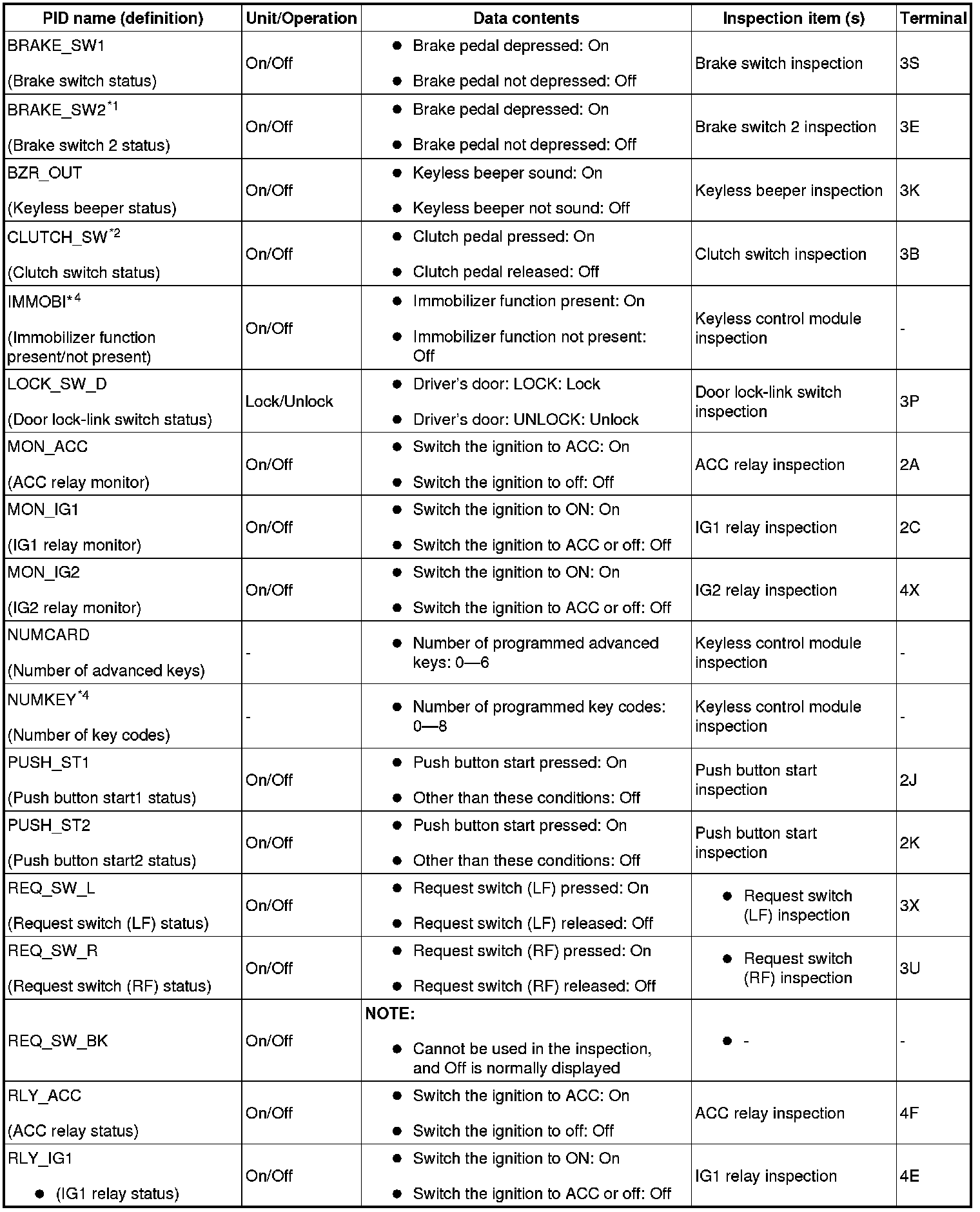

PID/DATA MONITOR TABLE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]









*1
MZR 2.5
*2
MTX
*3
ATX
*4
With immobilizer system
