Check Sheet

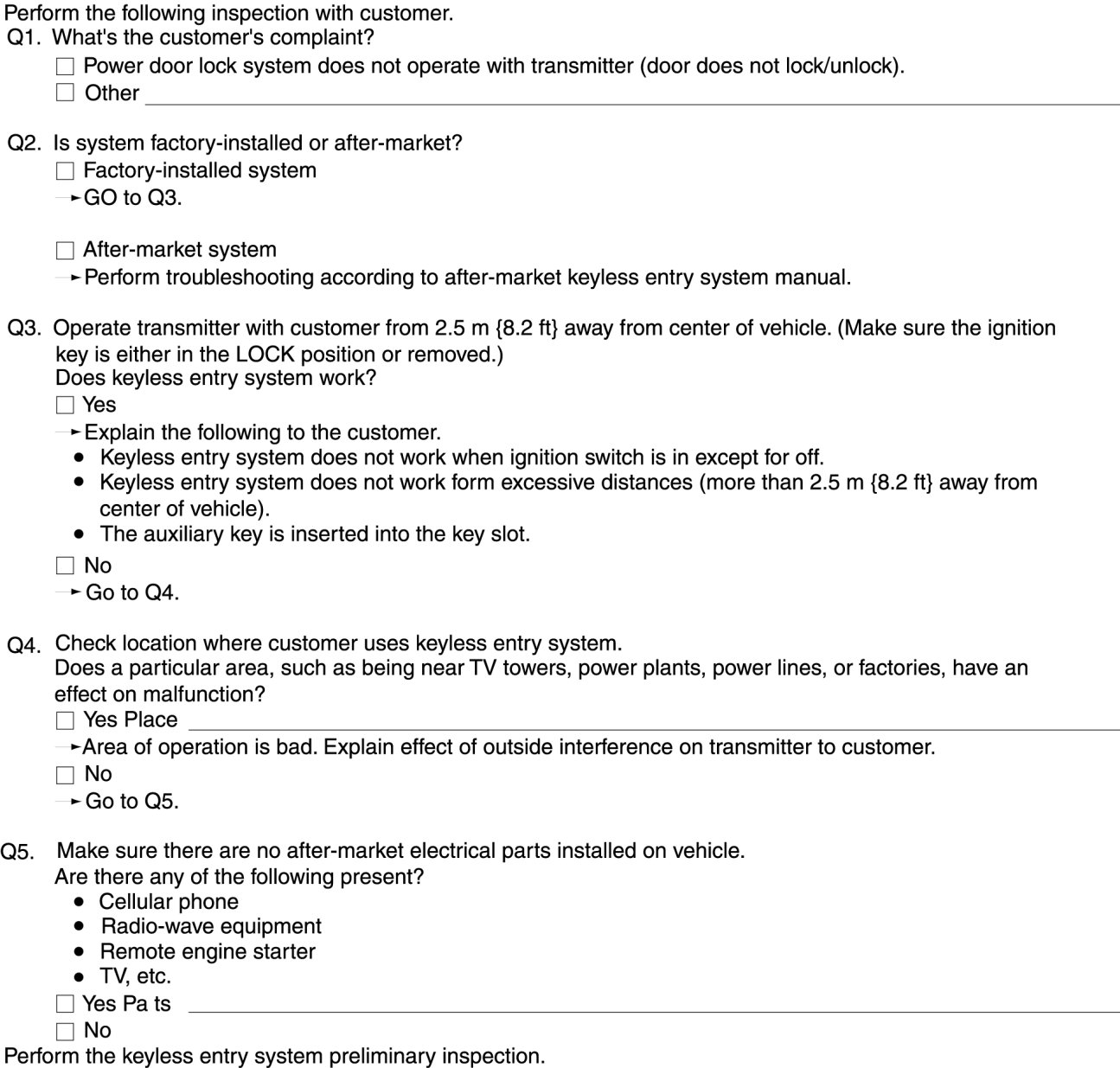

KEYLESS ENTRY SYSTEM CHECK SHEET [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

- Use the sheet below as a customer interview sheet when accepting a vehicle for service.
- If the symptom is "Power door lock system does not operate with transmitter at all," find out how the customer uses the keyless entry system by following the check sheet below.
