Cruise Control Switch: Testing and Inspection

CRUISE CONTROL SWITCH INSPECTION [MZR 2.5]

1. Disconnect the negative battery cable and wait for 1 min or more. Removal and Replacement

2. Remove the driver-side air bag module. Driver-Side Air Bag Module Removal/Installation

3. Disconnect the clock spring connector (part wiring harness-side). Service and Repair

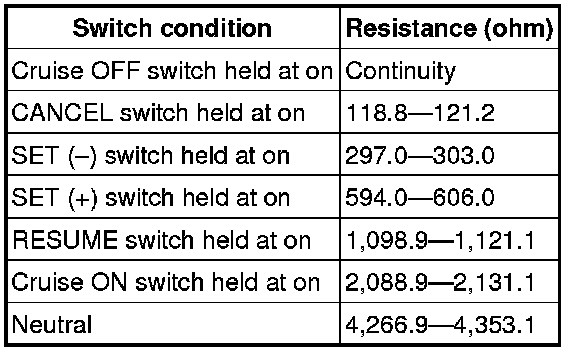

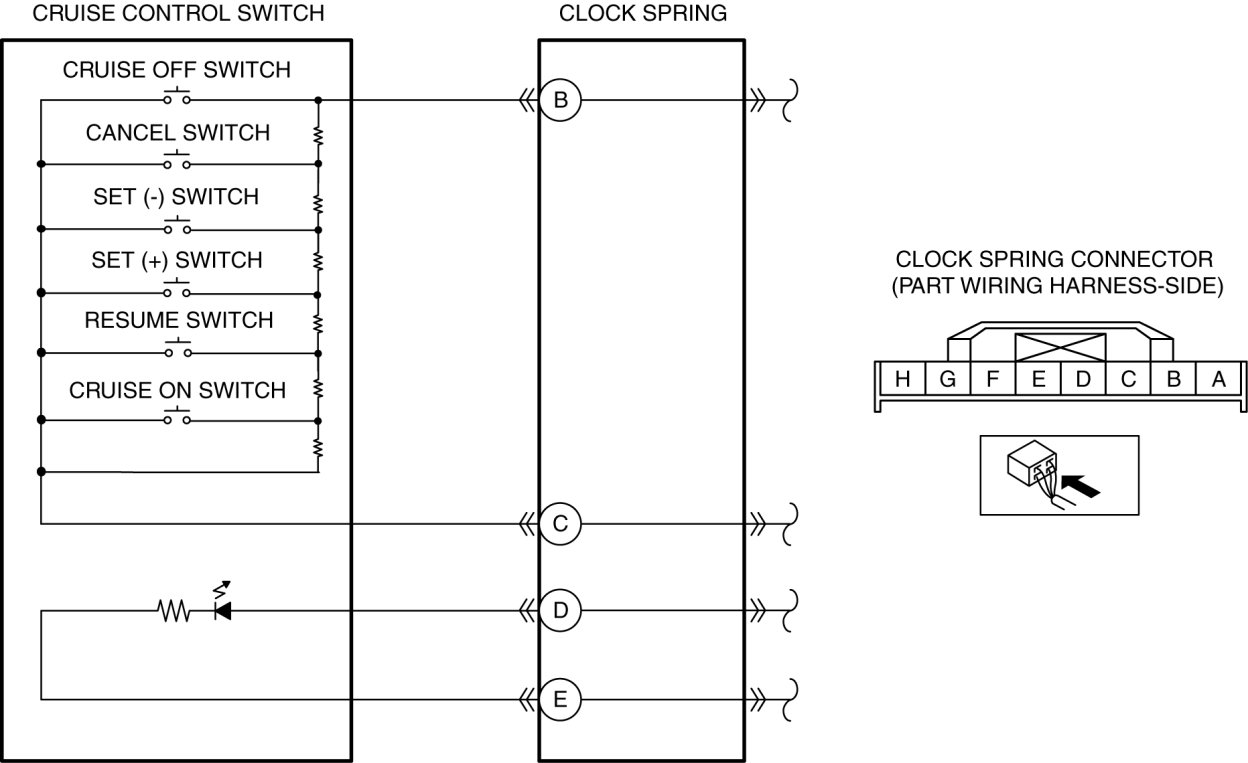

4. Inspect for resistance and continuity between clock spring (part wiring harness-side) terminals B-C using a tester.






- If not as specified, replace the steering switch. Service and Repair

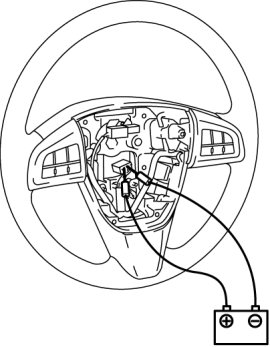

5. Apply battery positive voltage to clock spring (part wiring harness-side) terminal D, and connect terminal E to ground.






6. Verify that the LED illuminates.

- If the LED does not illuminate, replace the steering switch. Service and Repair
