Memory Positioning Systems

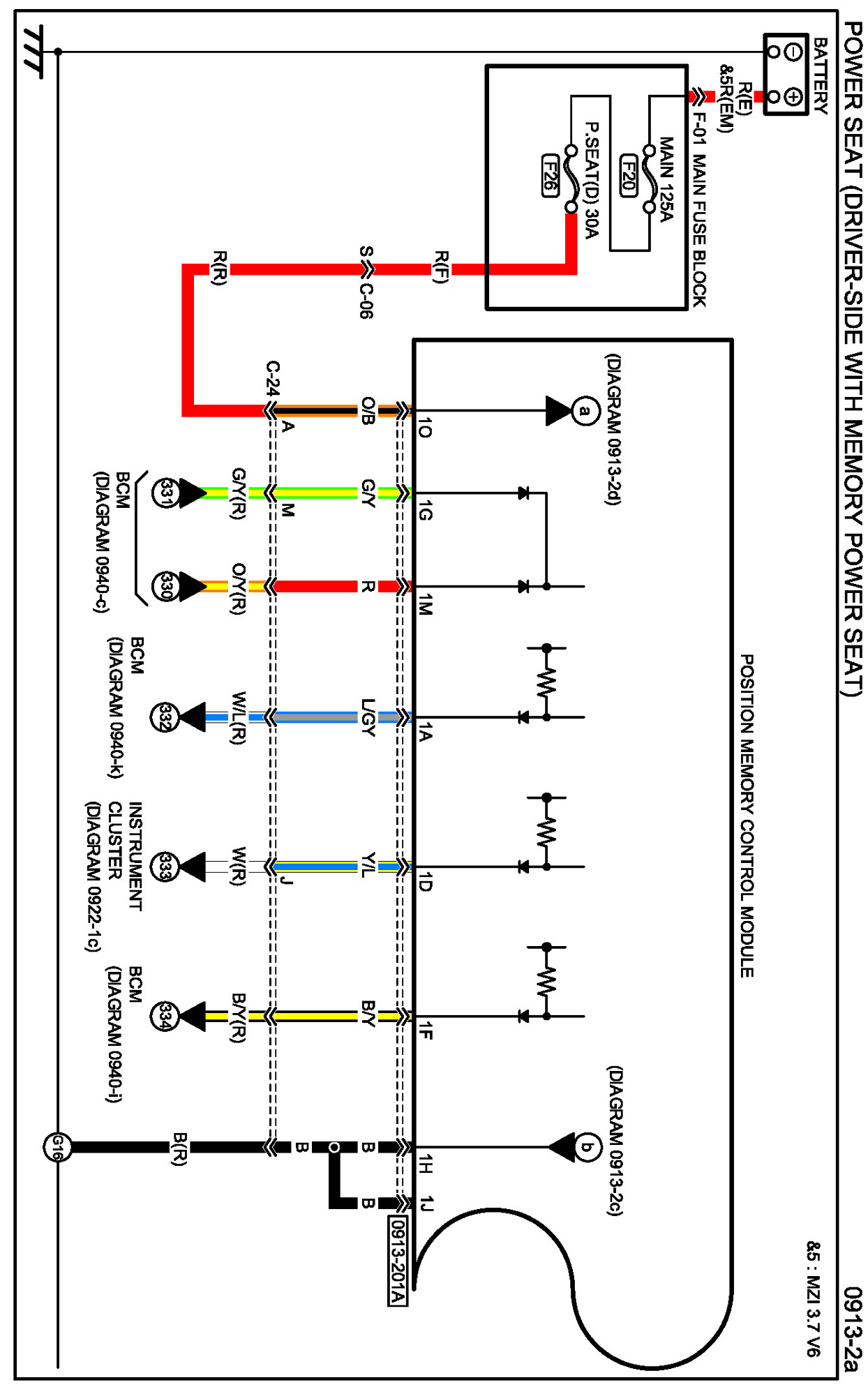

Diagram 0913-2a:

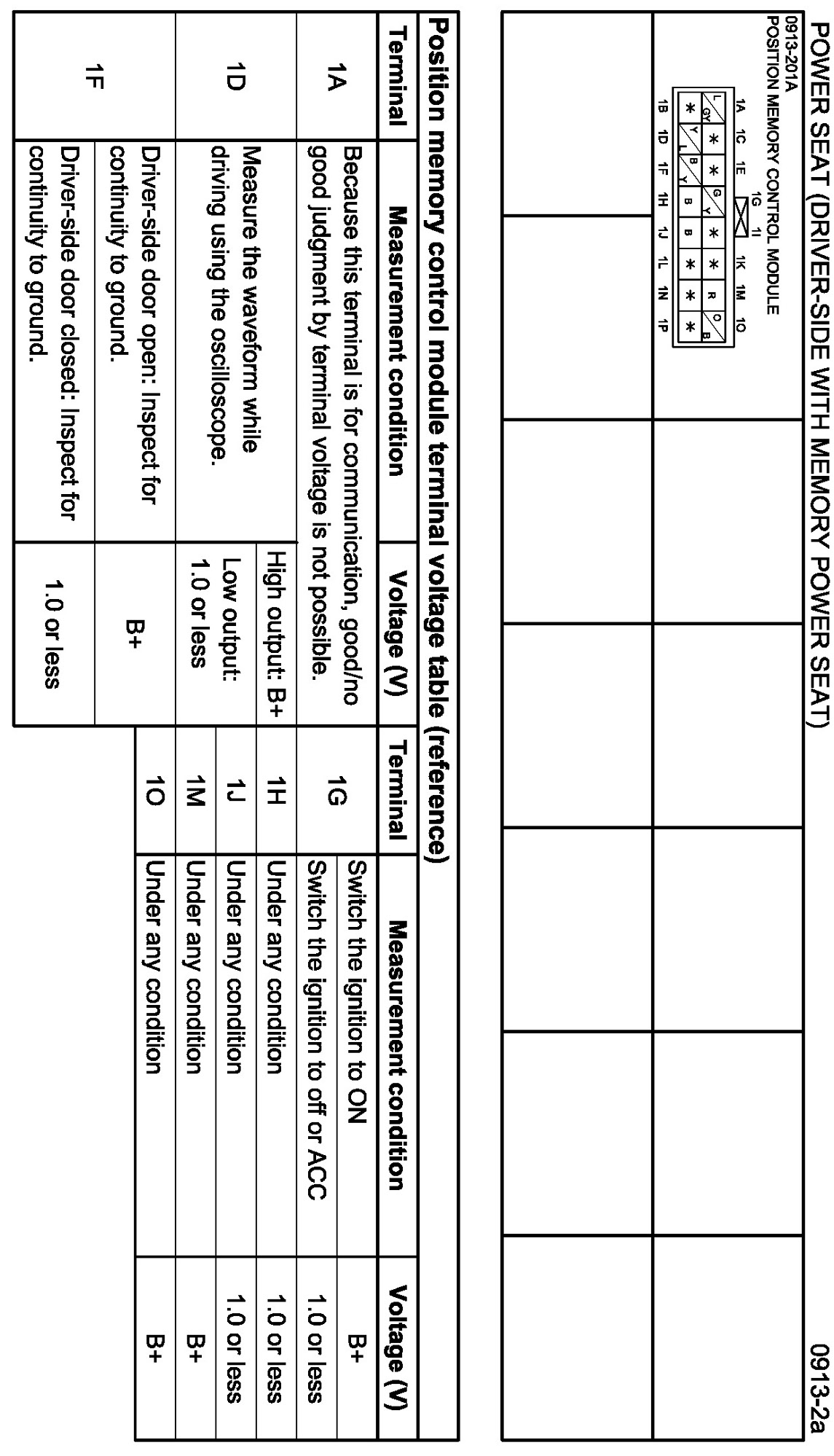

Connectors 0913-2a:

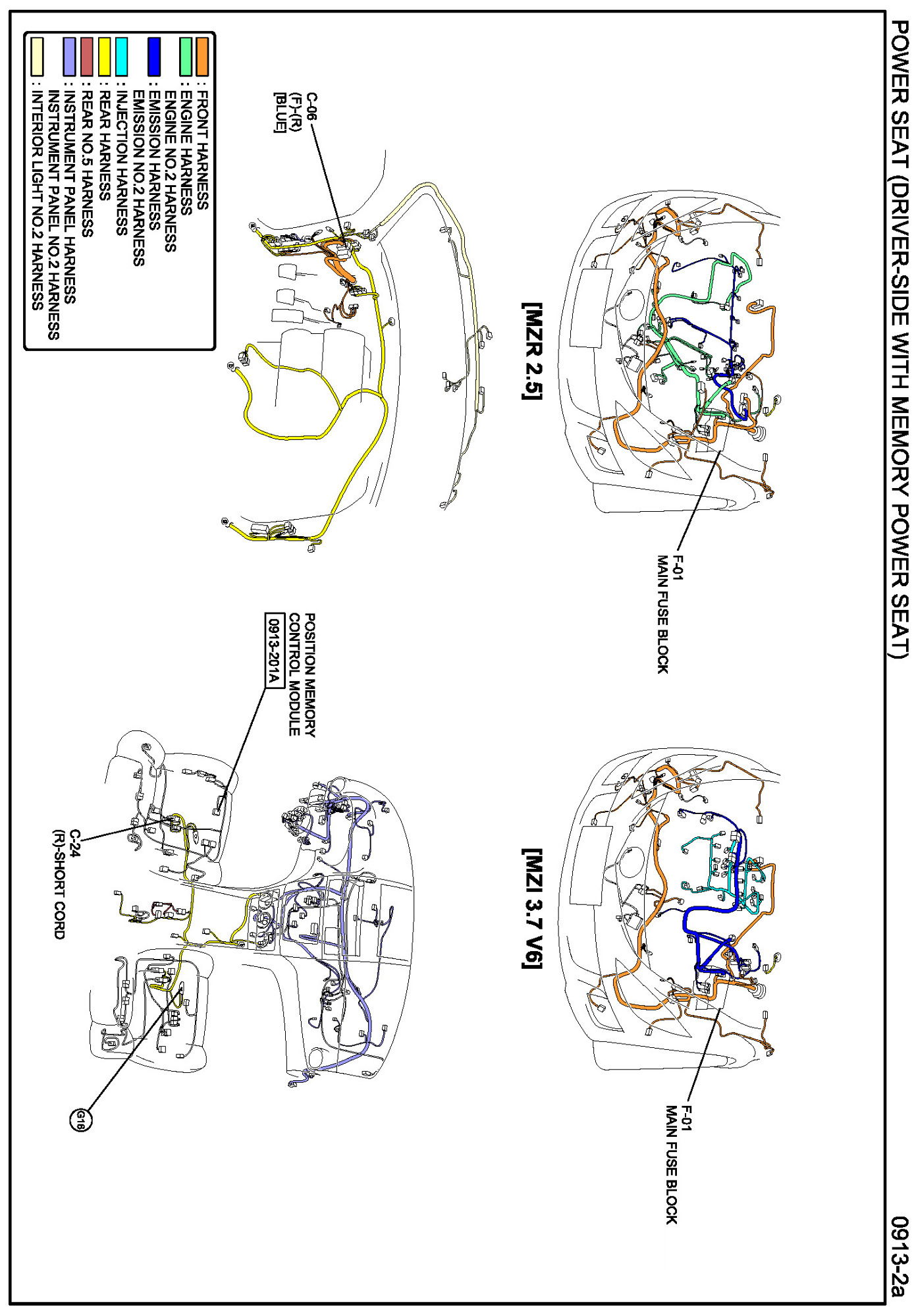

Routing View 0913-2a:

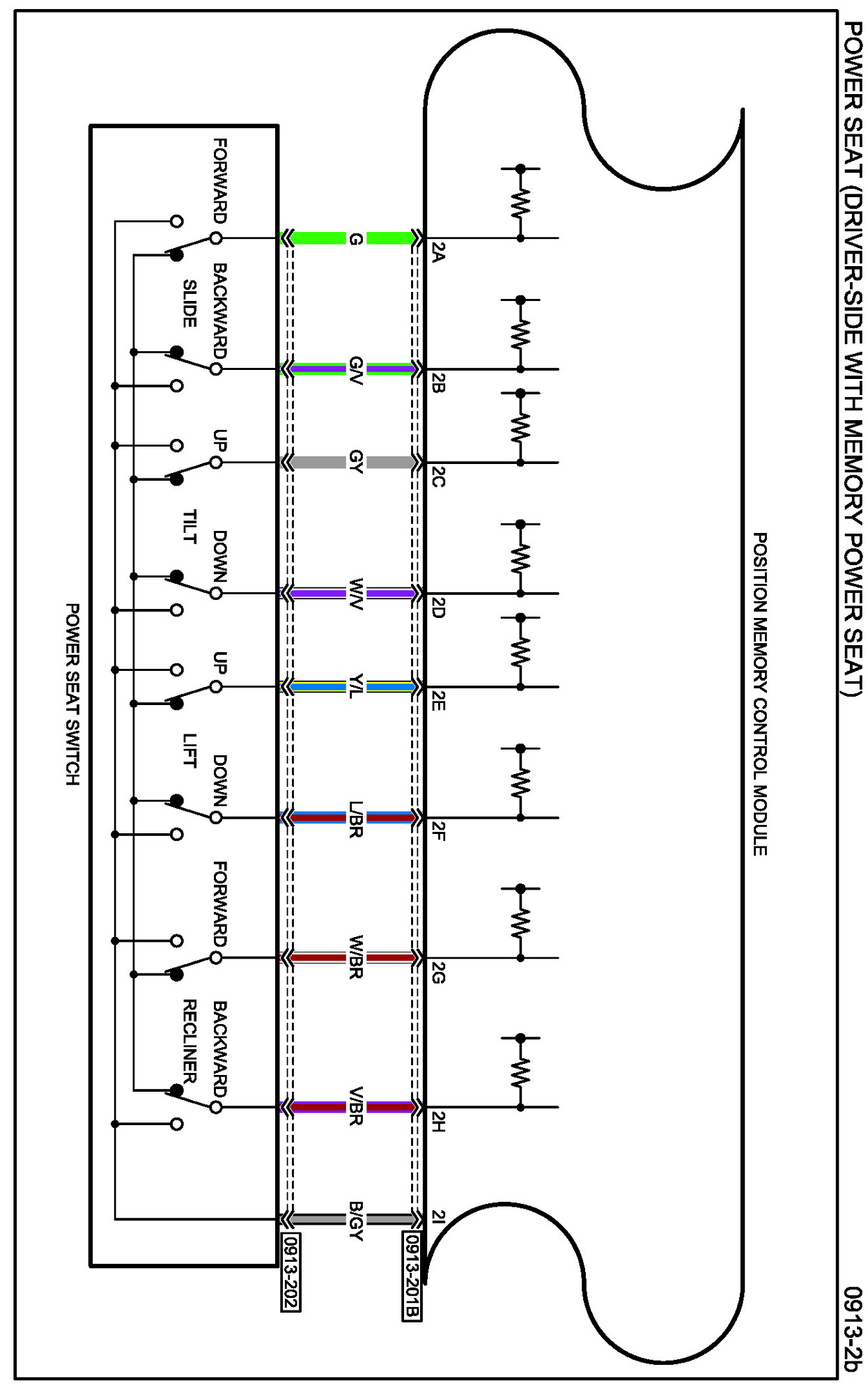

Diagram 0913-2b:

Connectors 0913-2b:

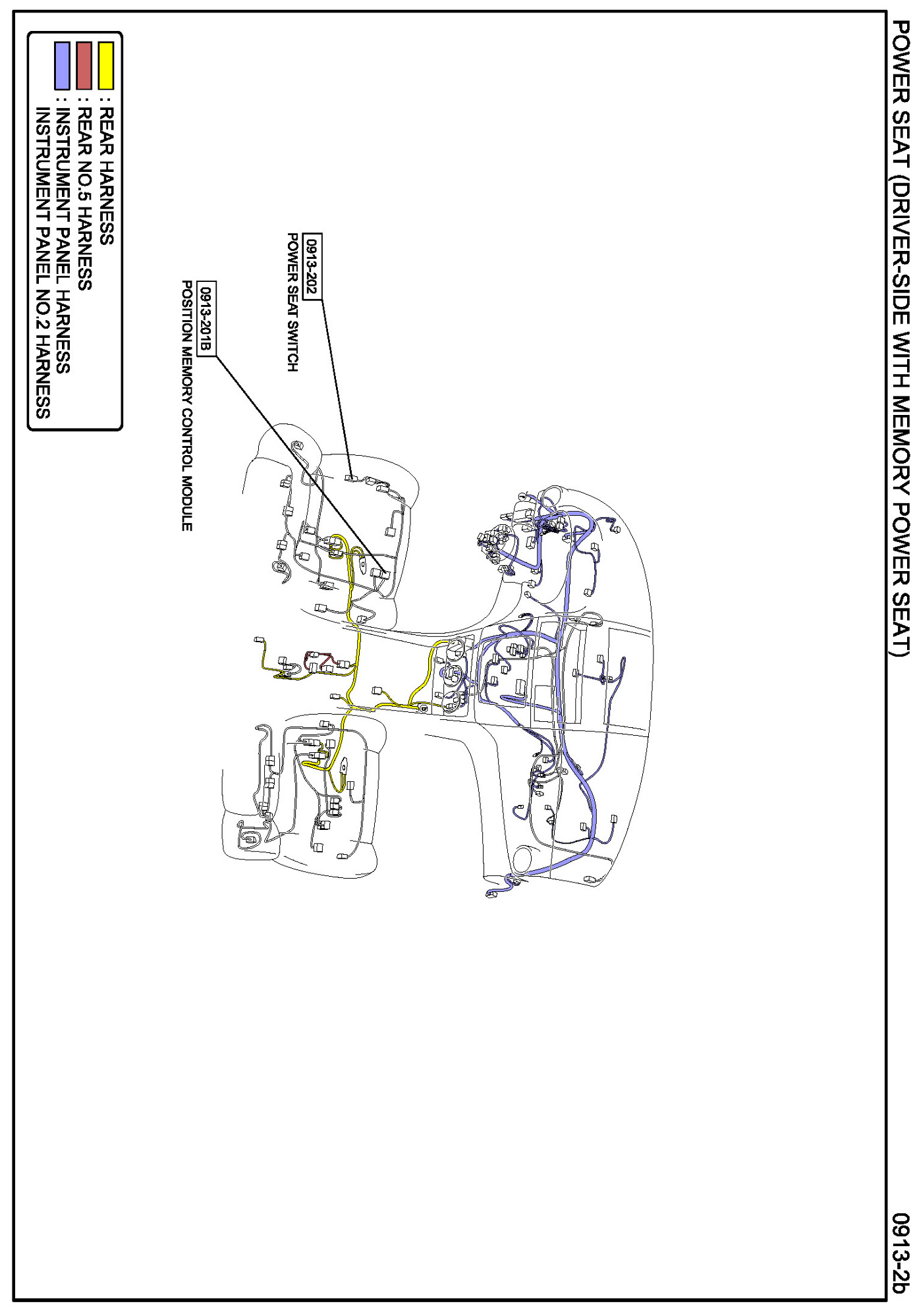

Routing View 0913-2b:

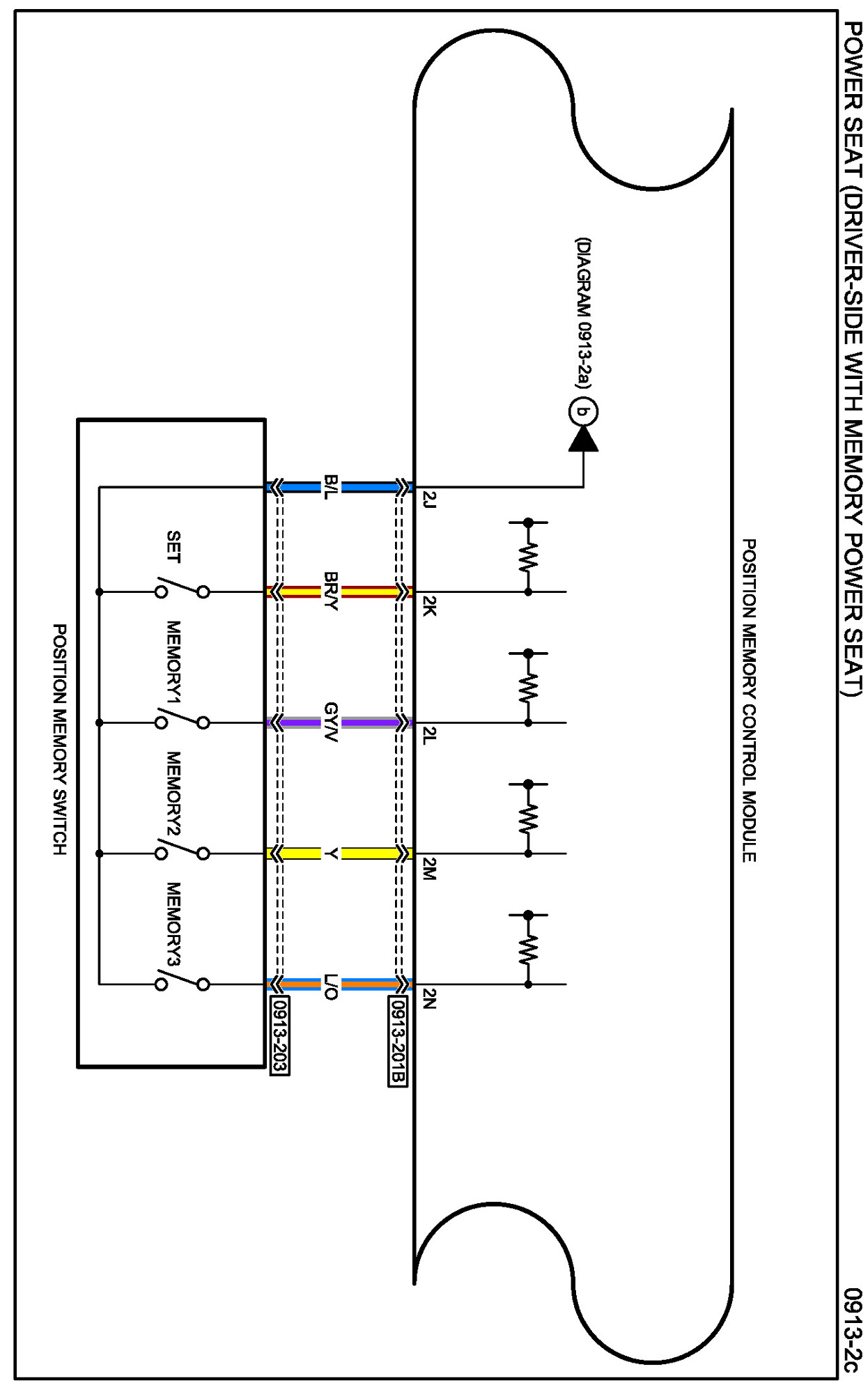

Diagram 0913-2c:

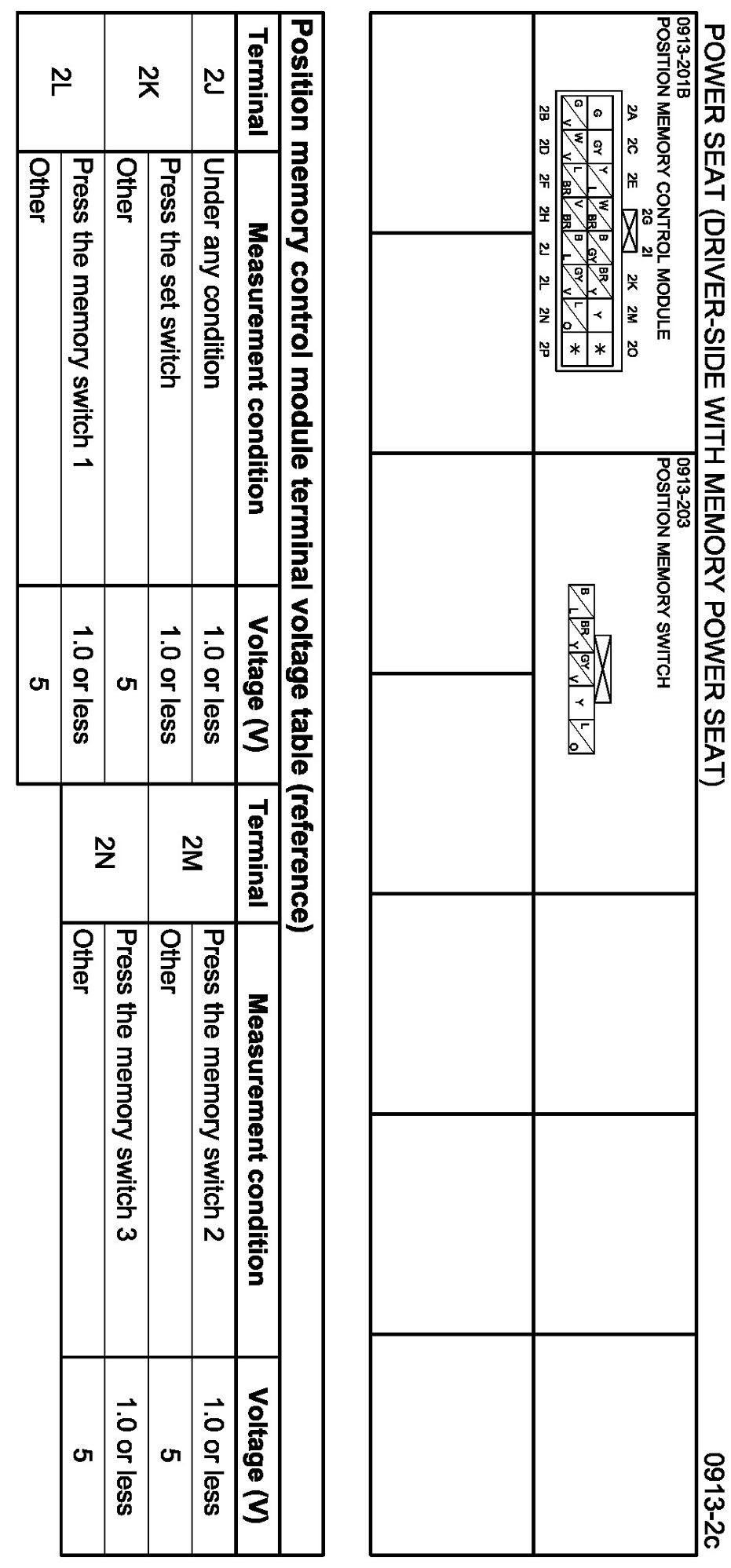

Connectors 0913-2c:

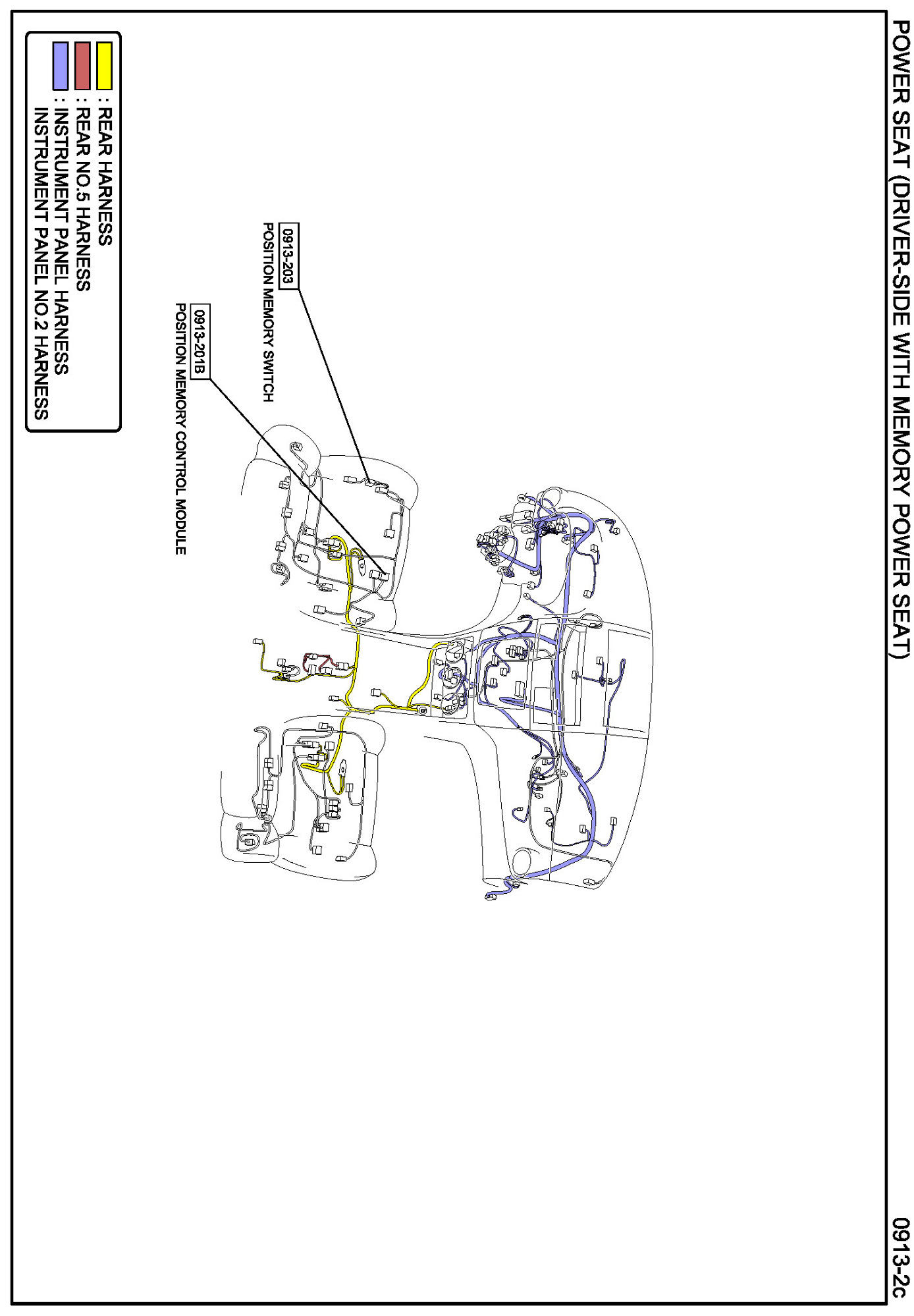

Routing View 0913-2c:

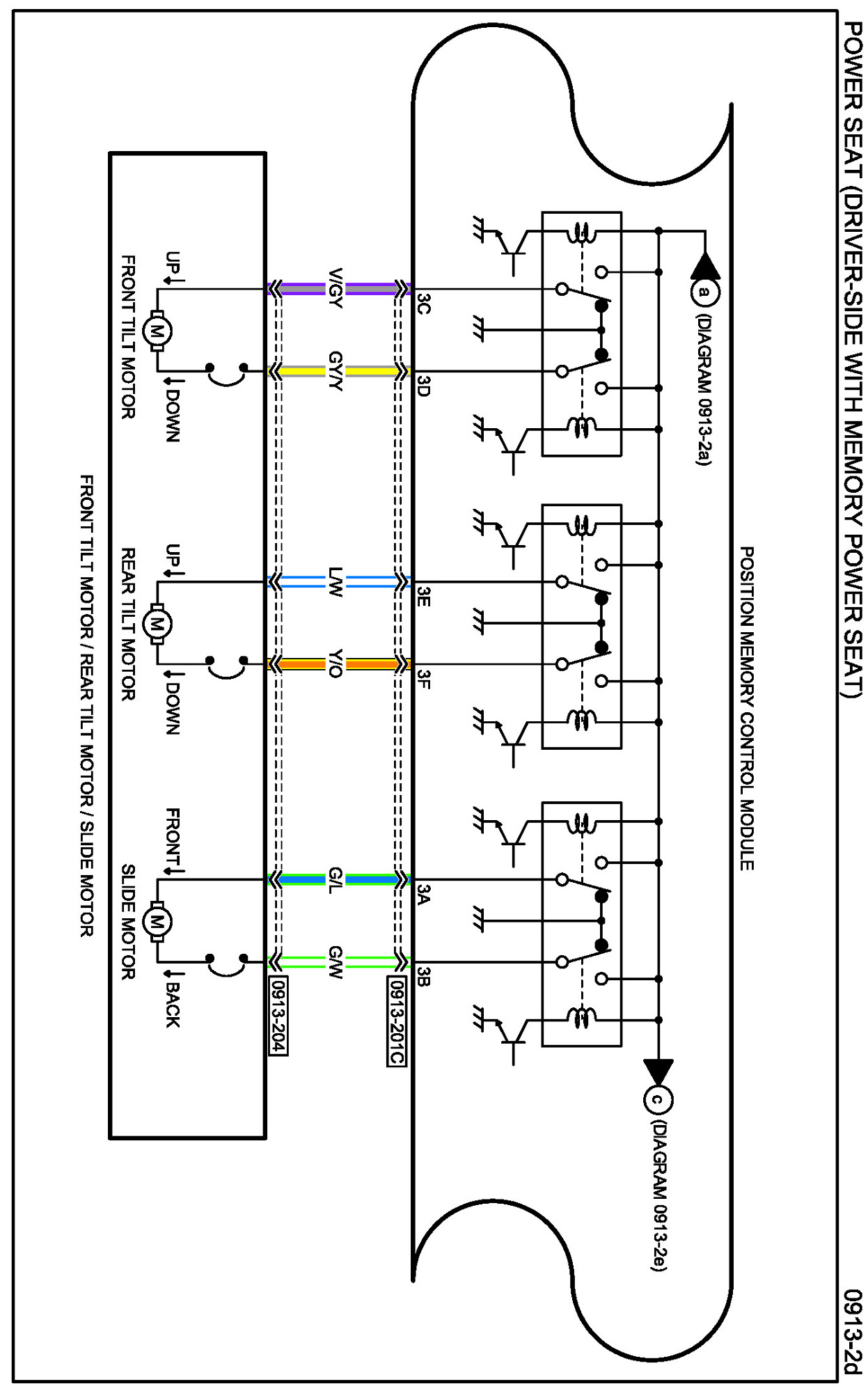

Diagram 0913-2d:

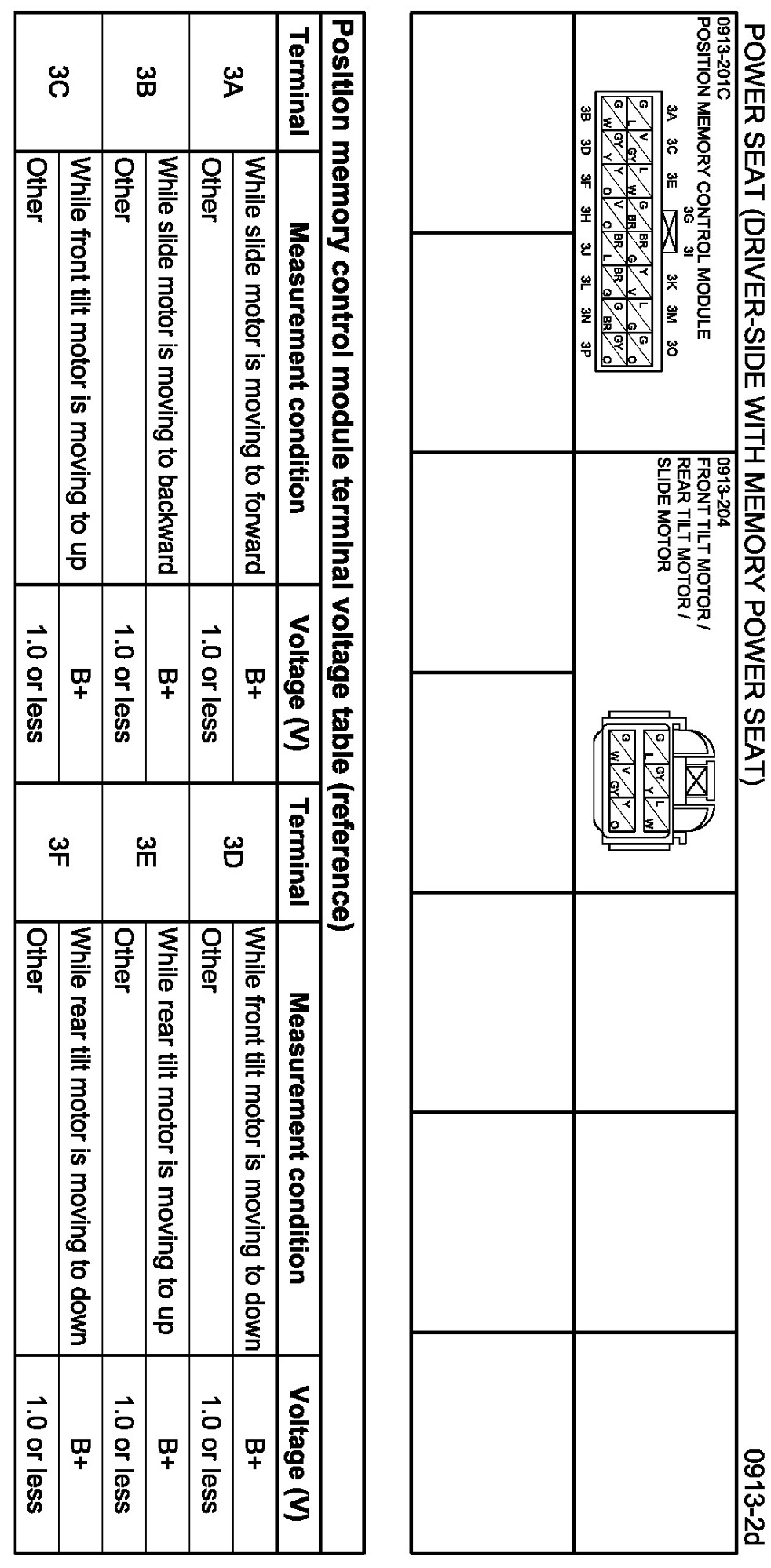

Connectors 0913-2d:

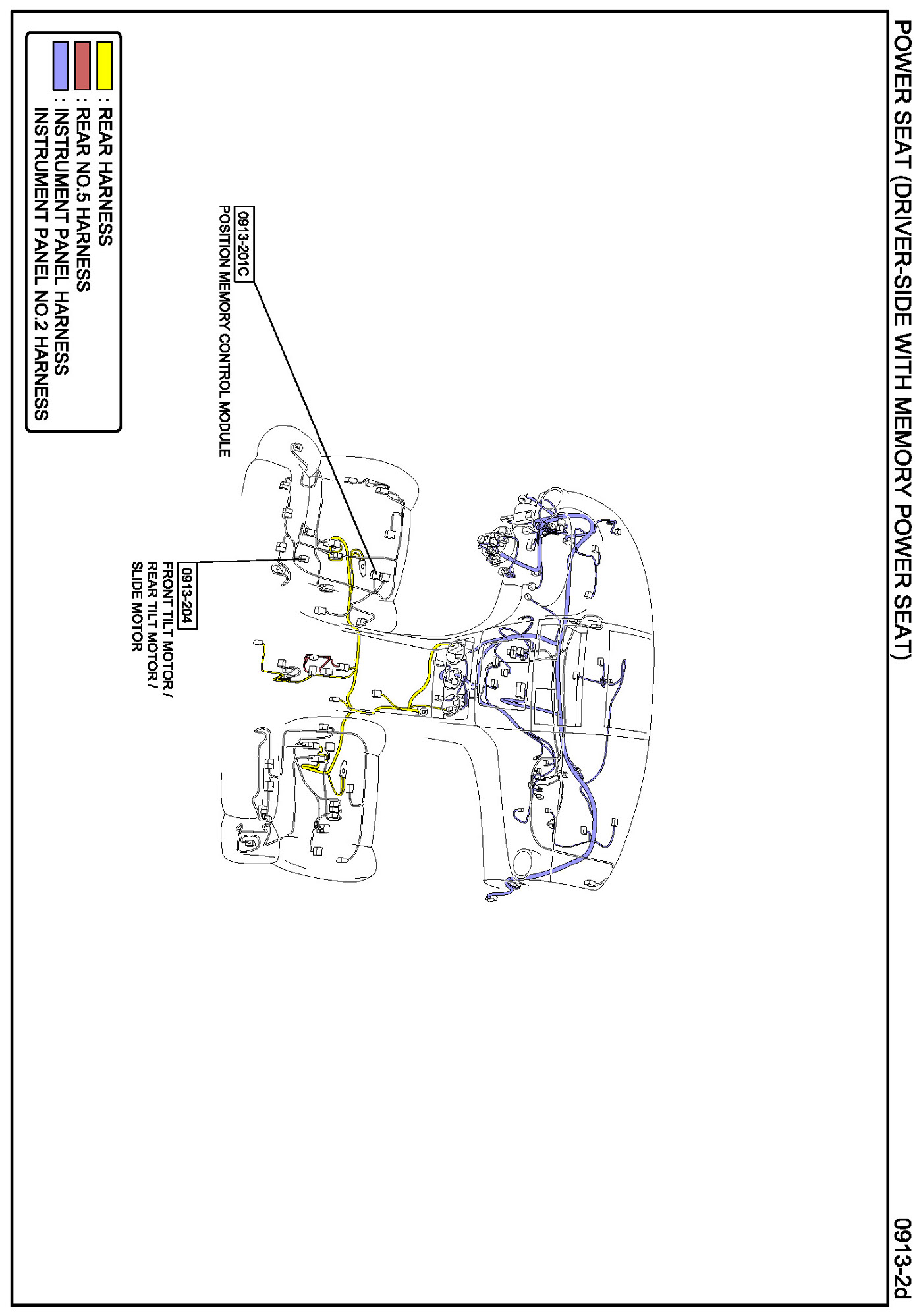

Routing View 0913-2d:

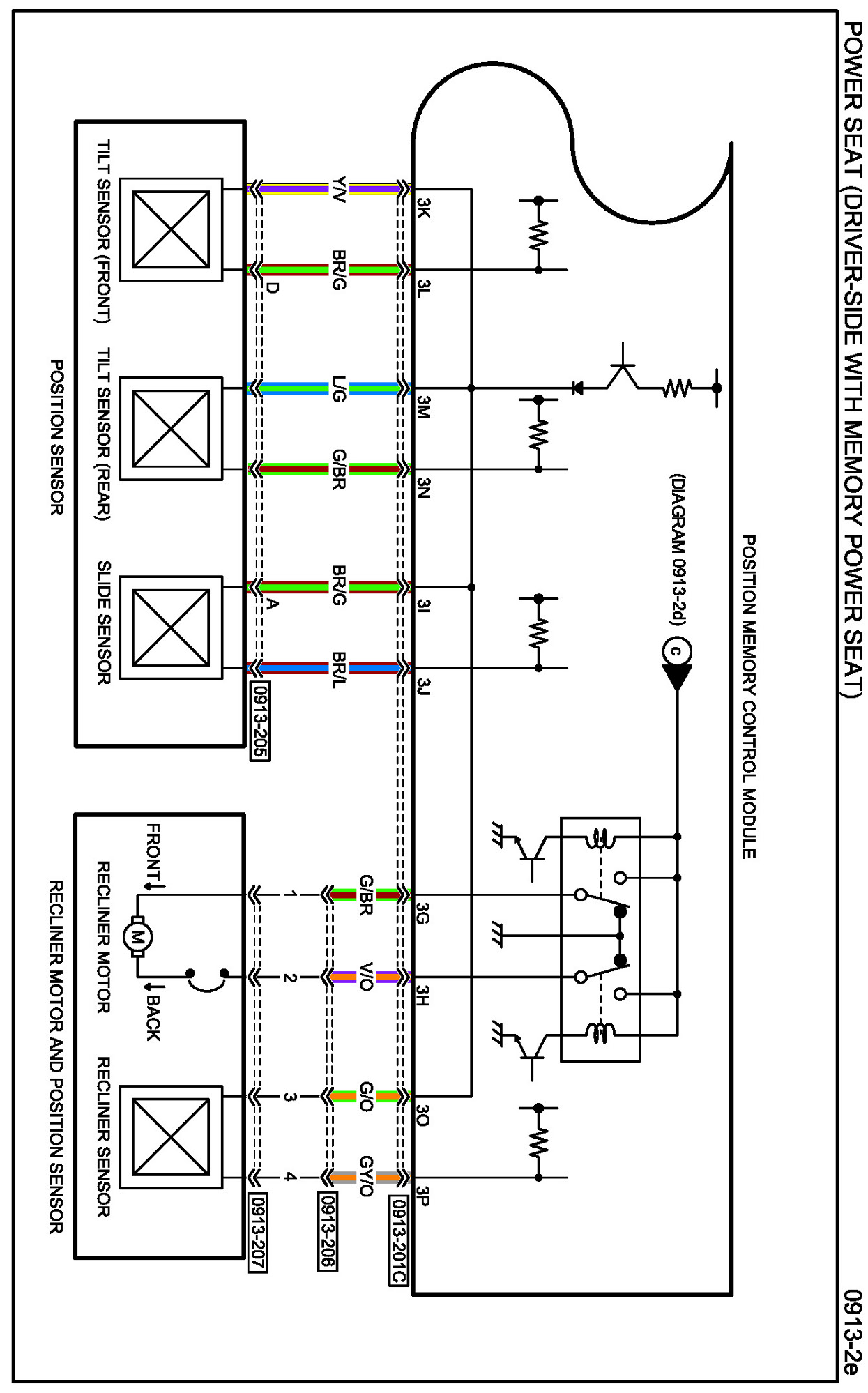

Diagram 0913-2e:

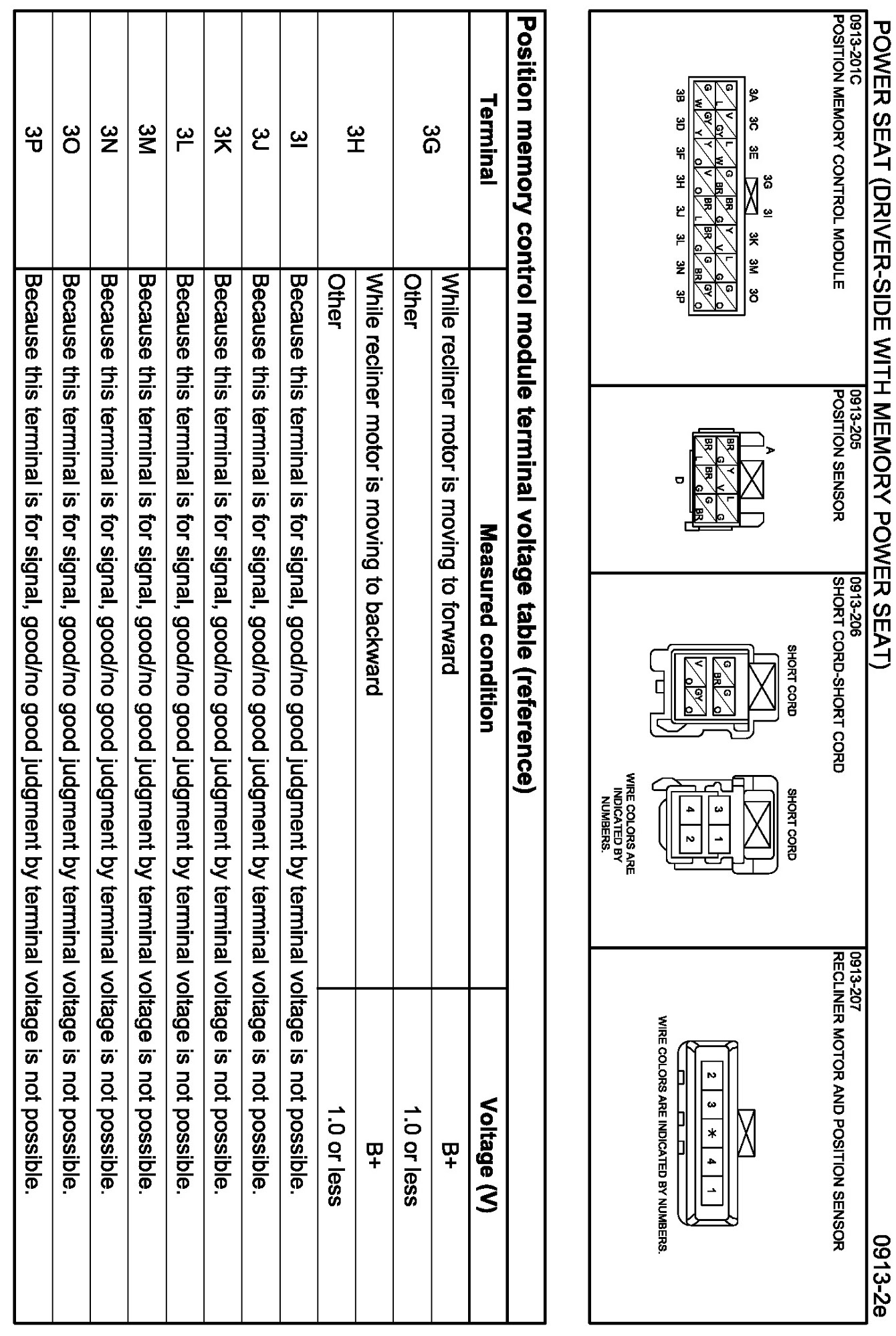

Connectors 0913-2e:

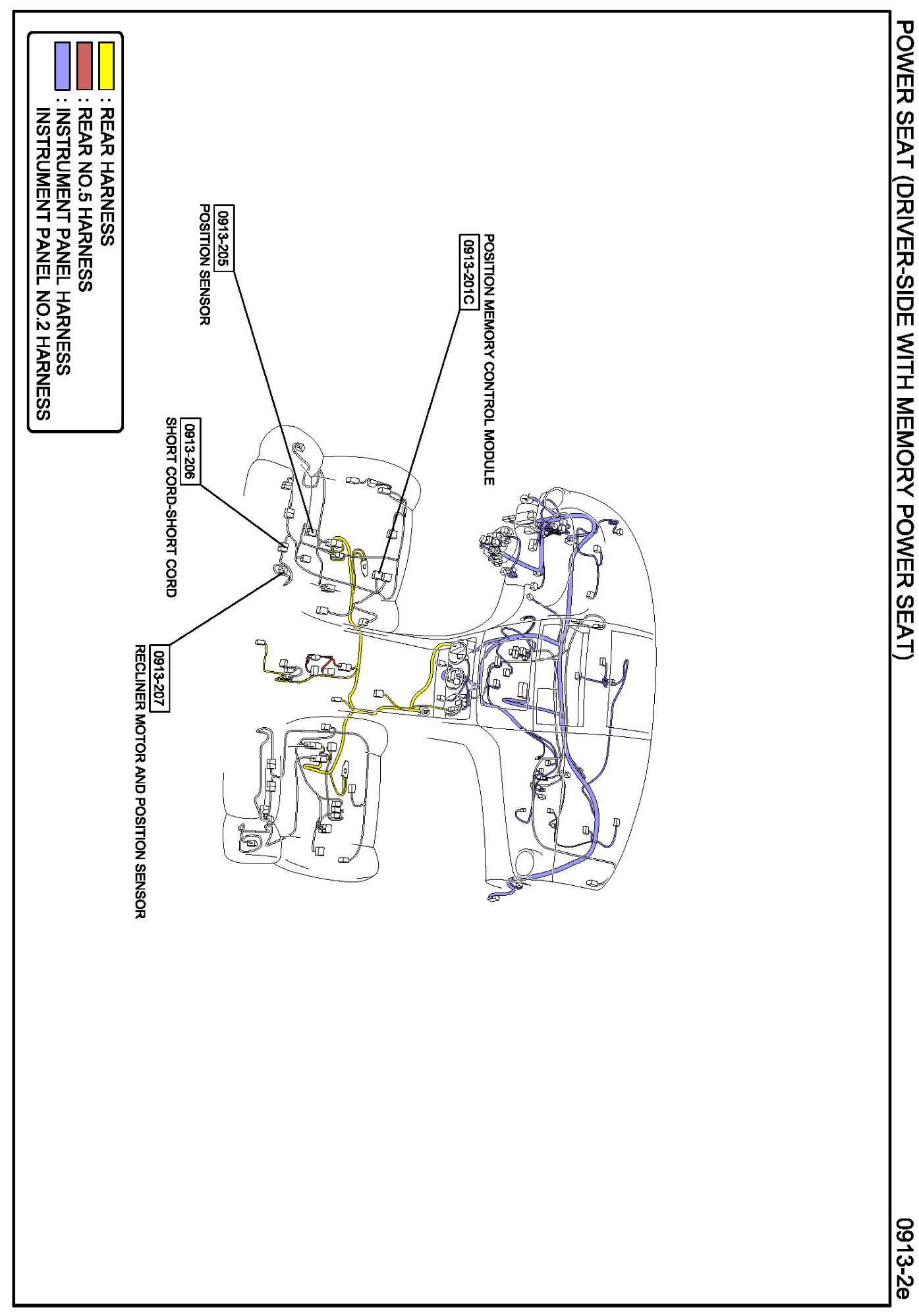

Routing View 0913-2e:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
