Power Window System (Auto-Open/Close Function For Driver-Side Window)

Diagram 0912-9a:

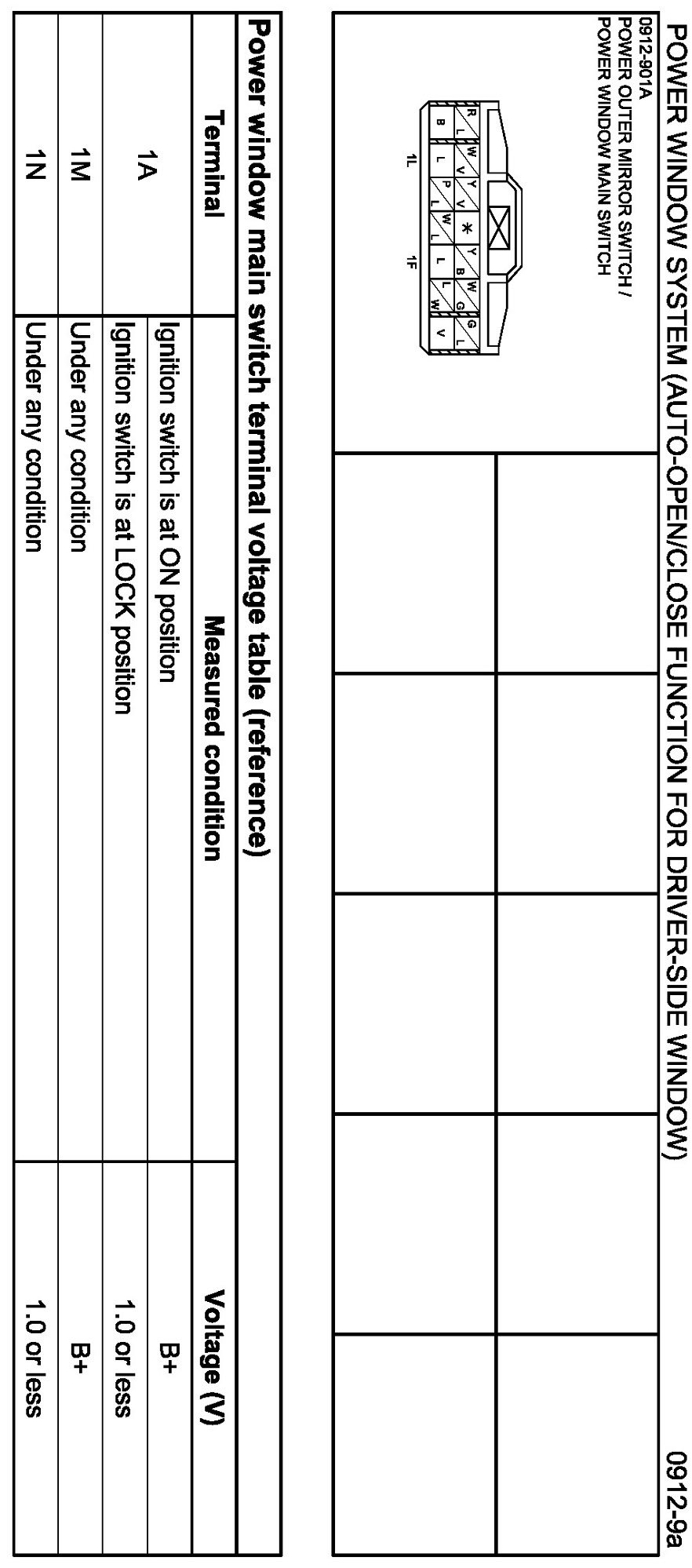

Connectors 0912-9a:

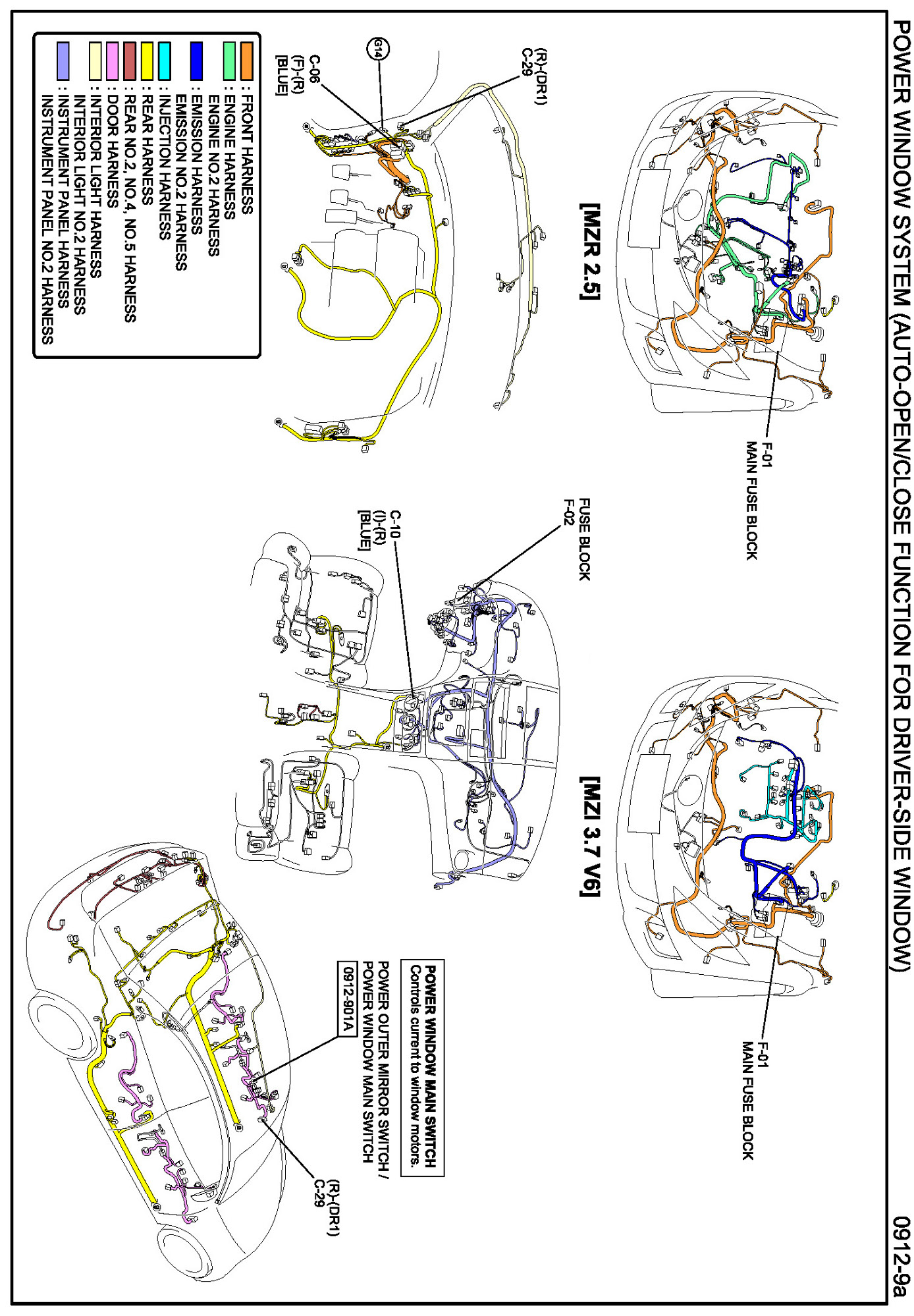

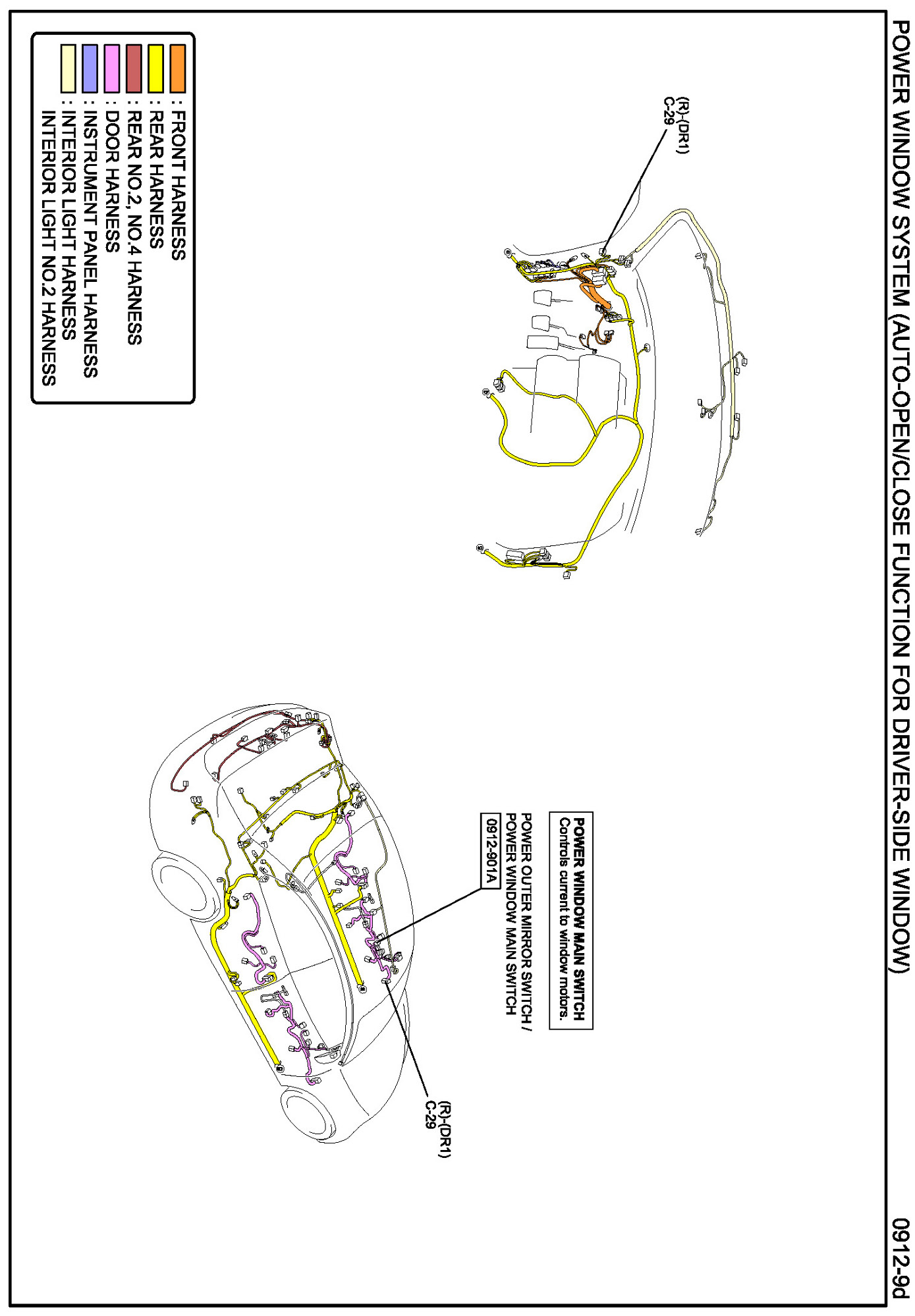

Routing View 0912-9a:

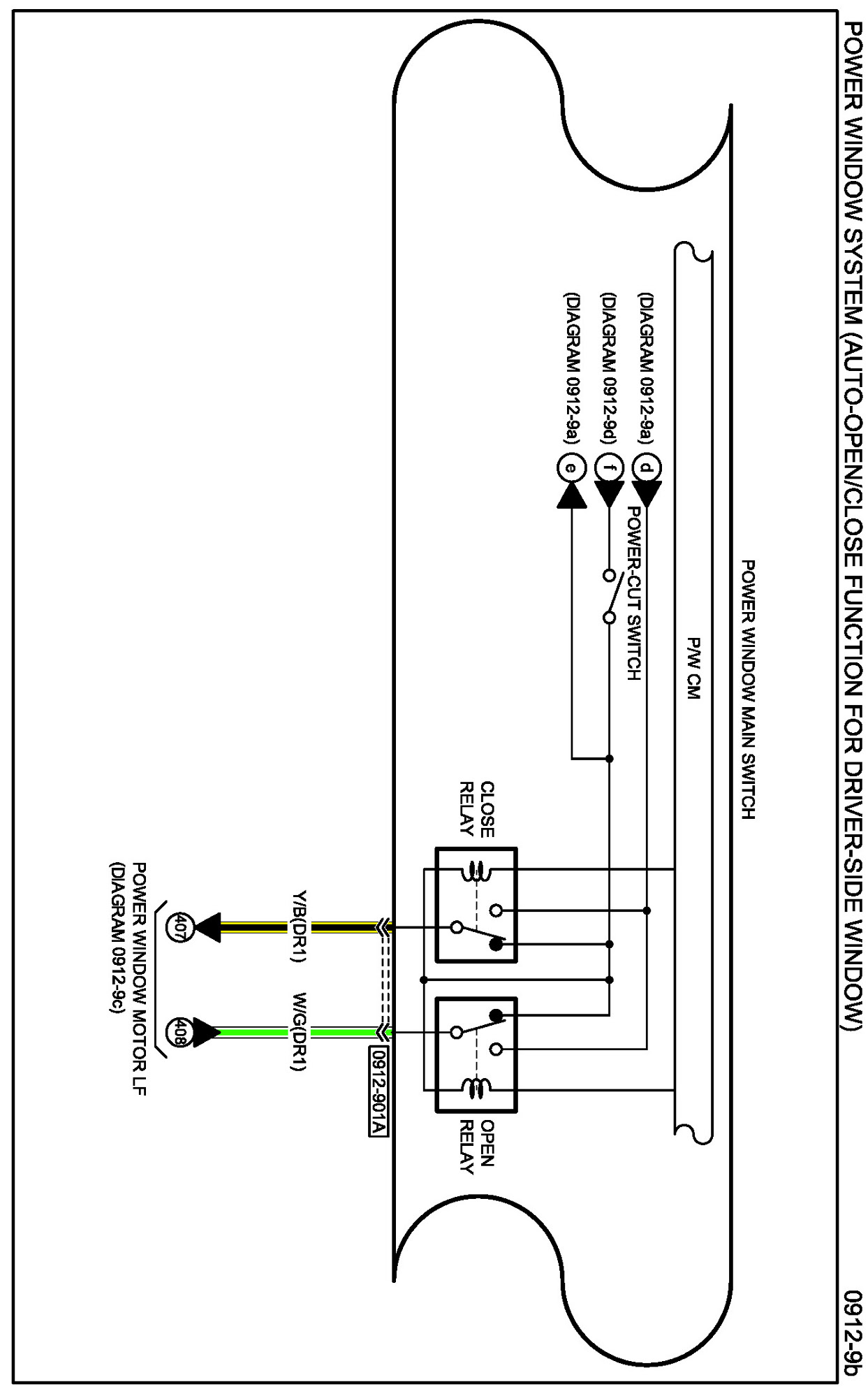

Diagram 0912-9b:

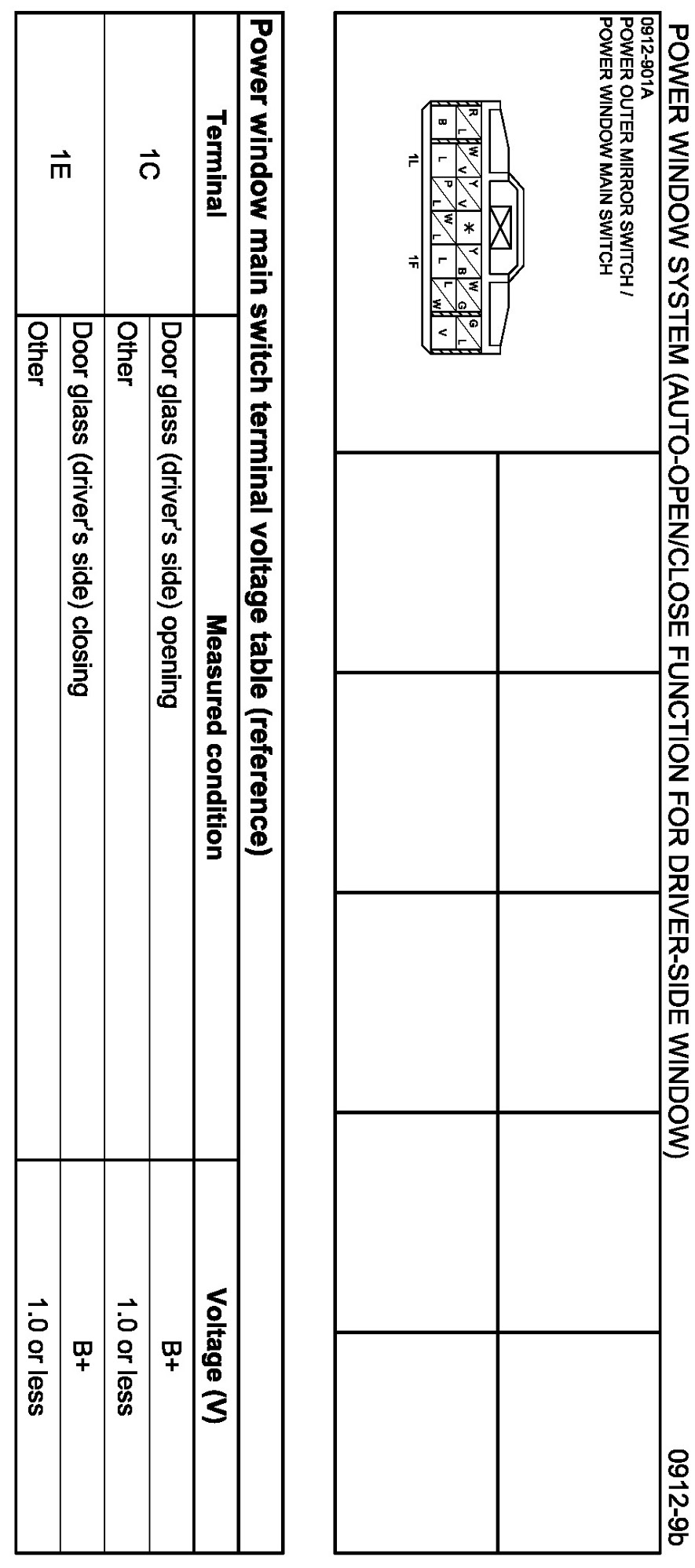

Connectors 0912-9b:

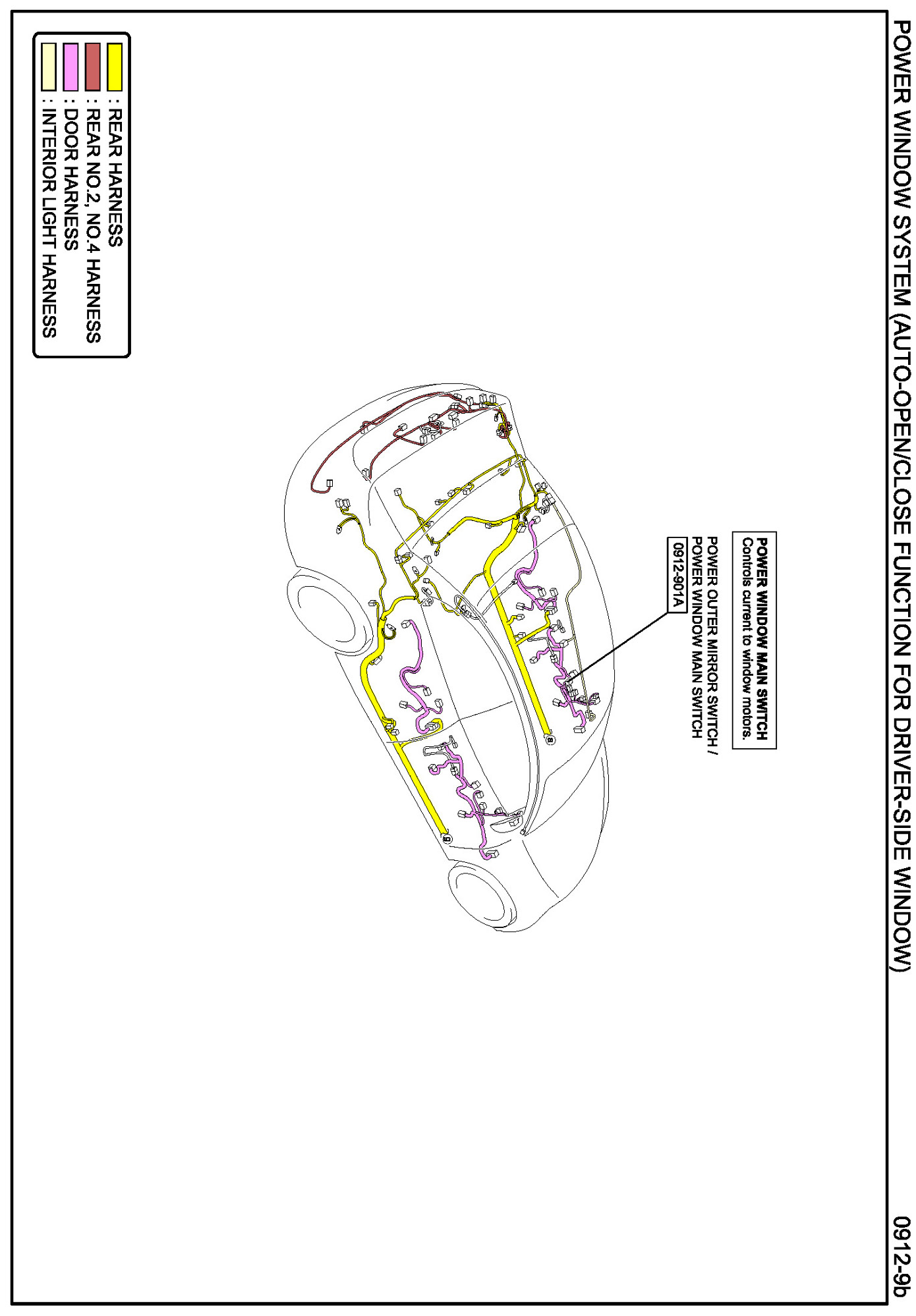

Routing View 0912-9b:

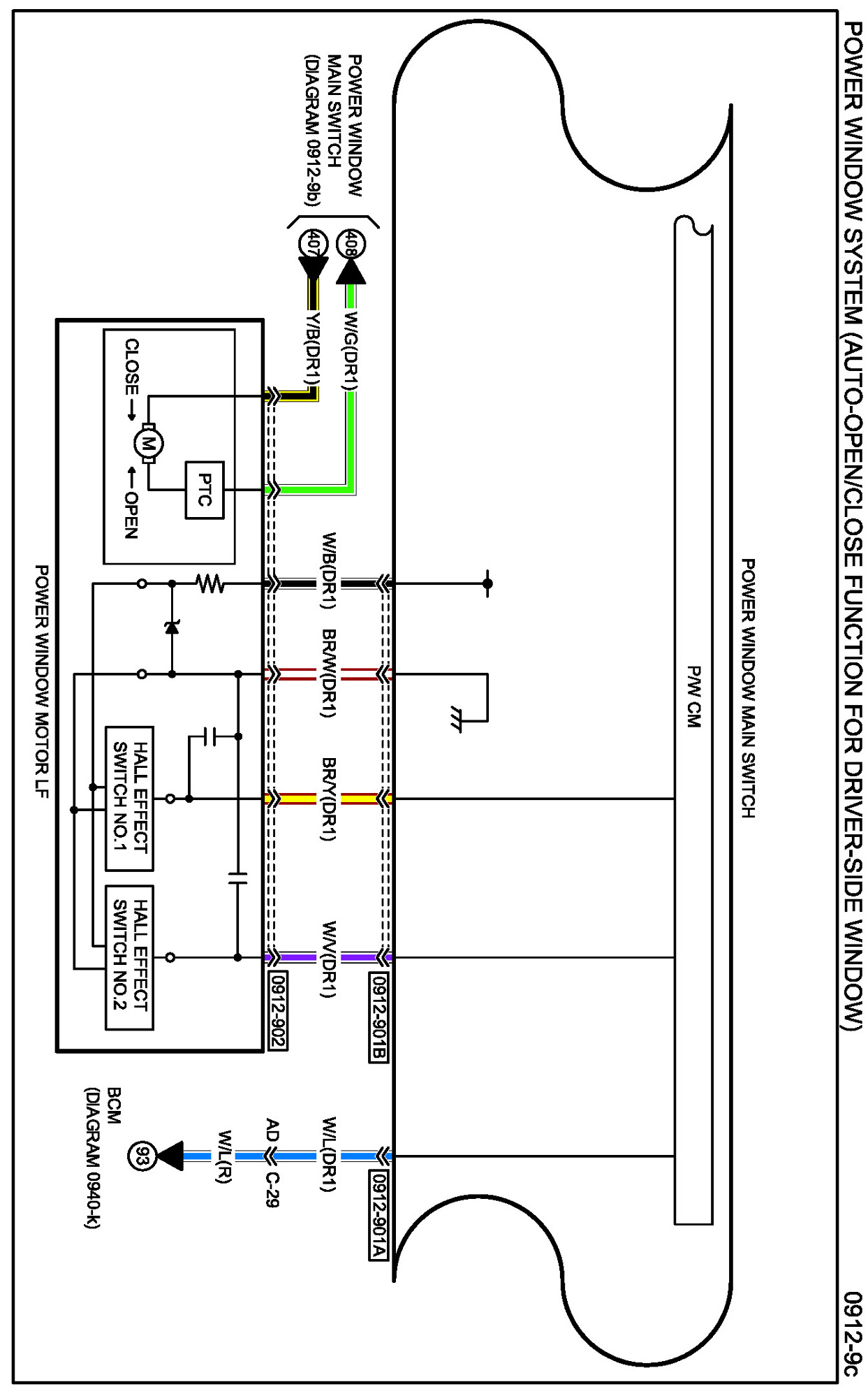

Diagram 0912-9c:

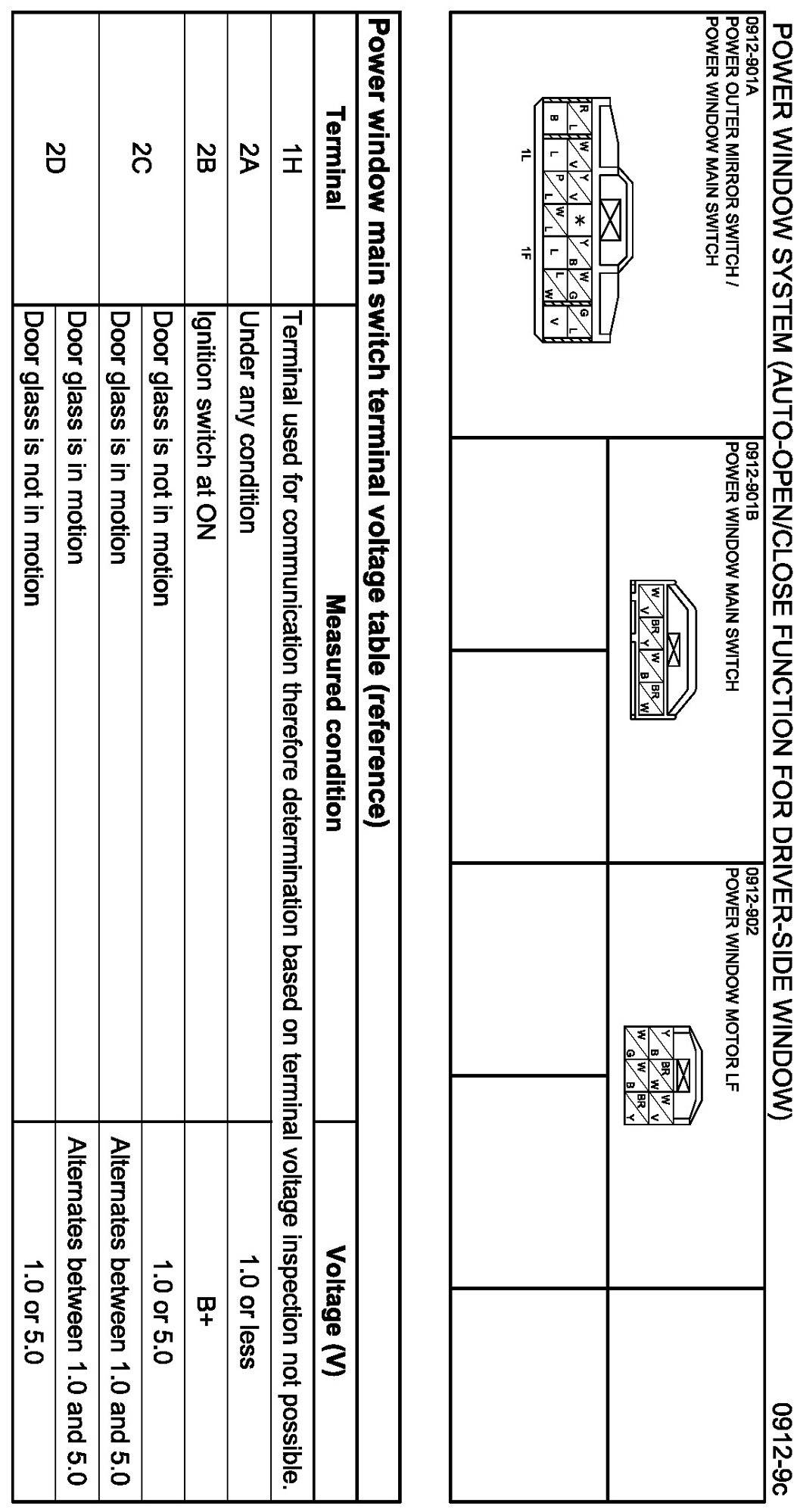

Connectors 0912-9c:

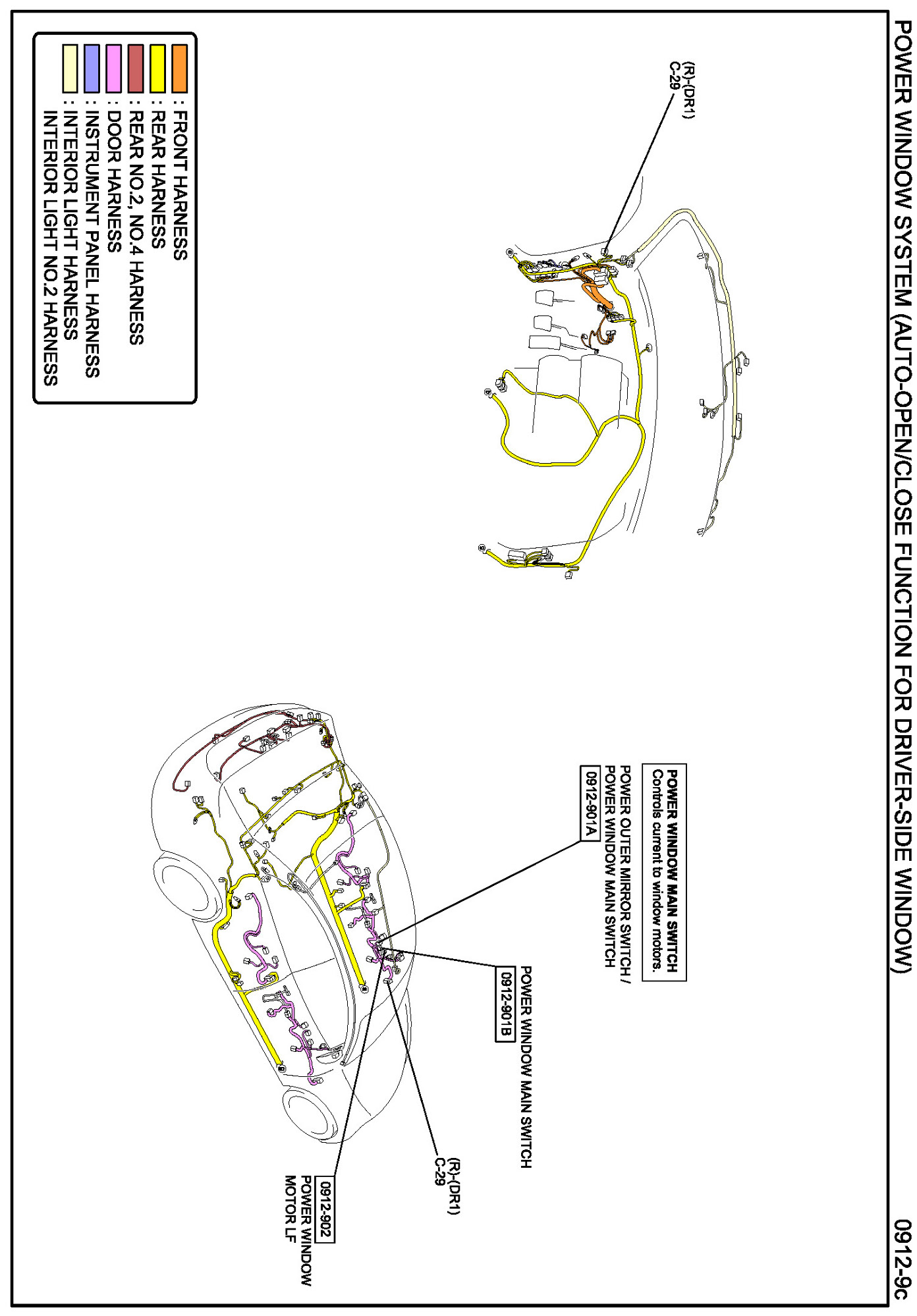

Routing View 0912-9c:

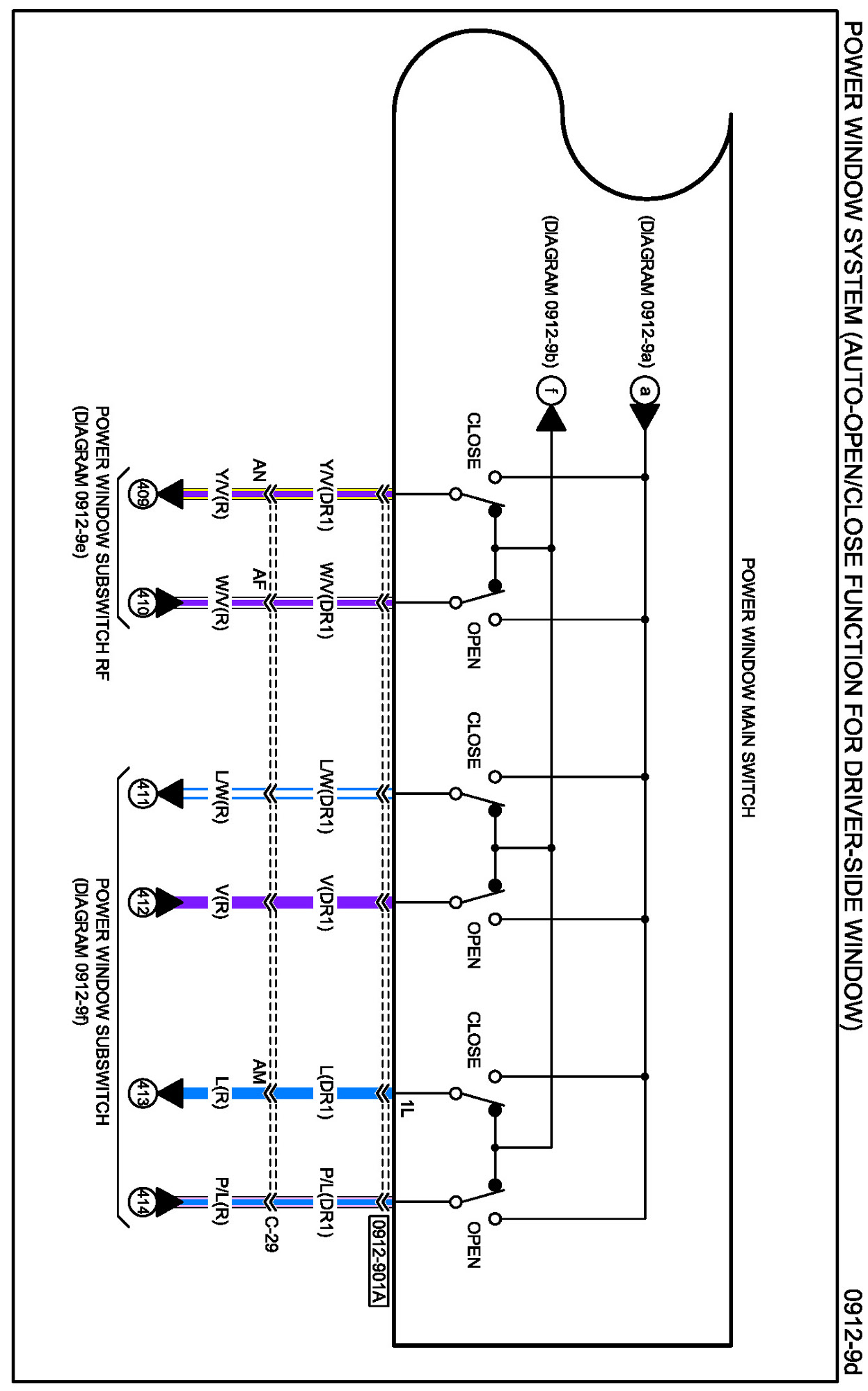

Diagram 0912-9d:

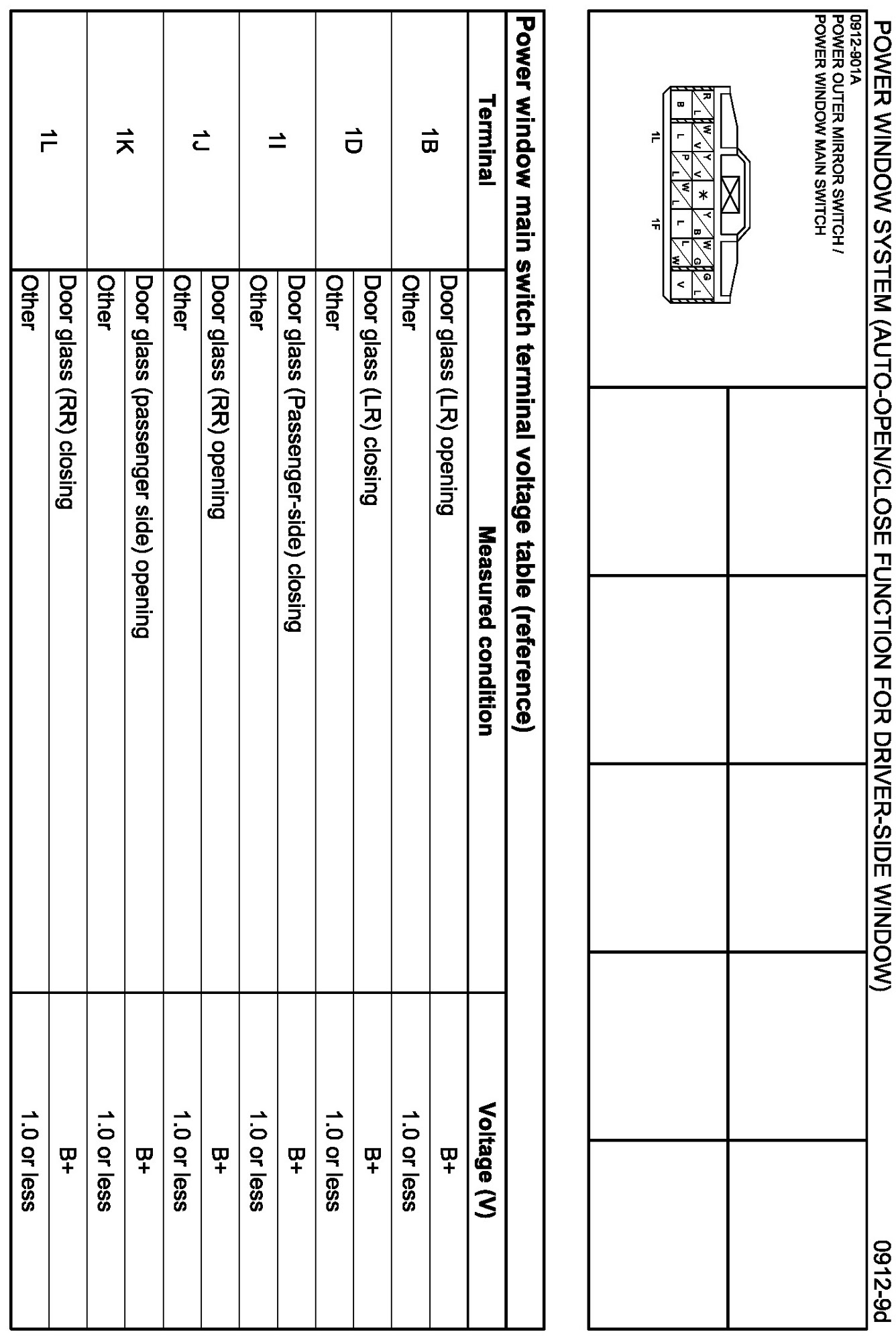

Connectors 0912-9d:

Routing View 0912-9d:

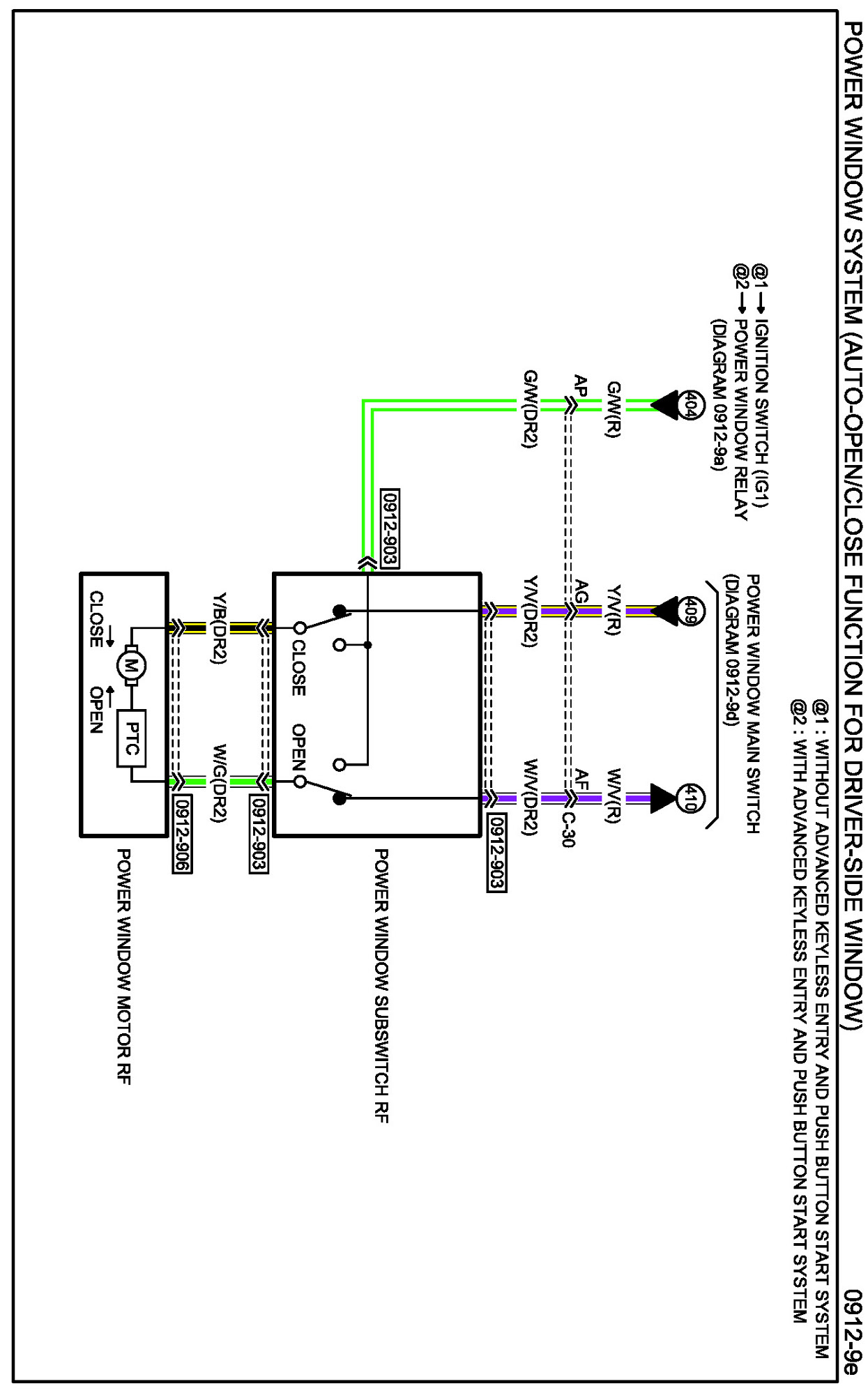

Diagram 0912-9e:

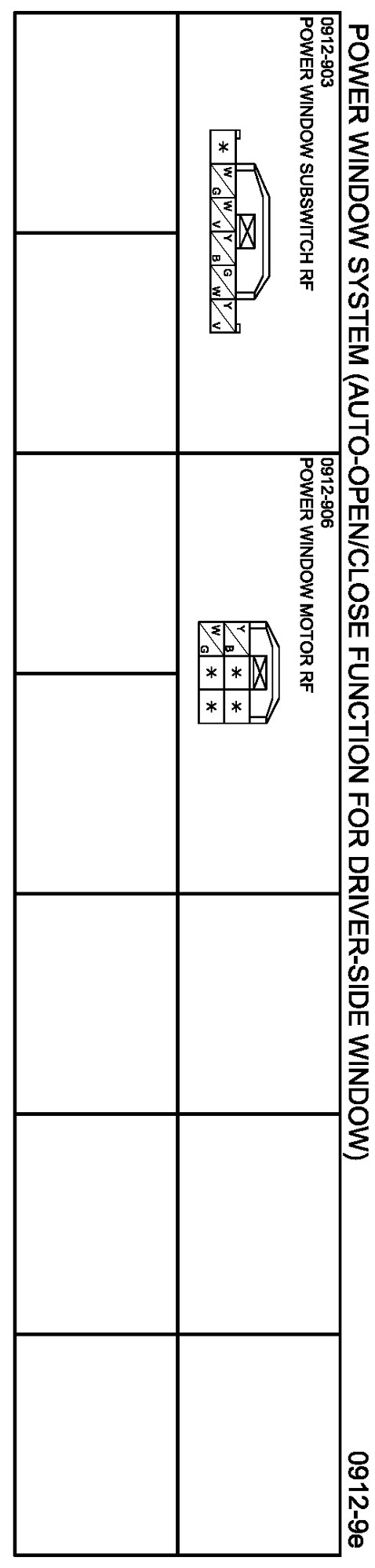

Connectors 0912-9e:

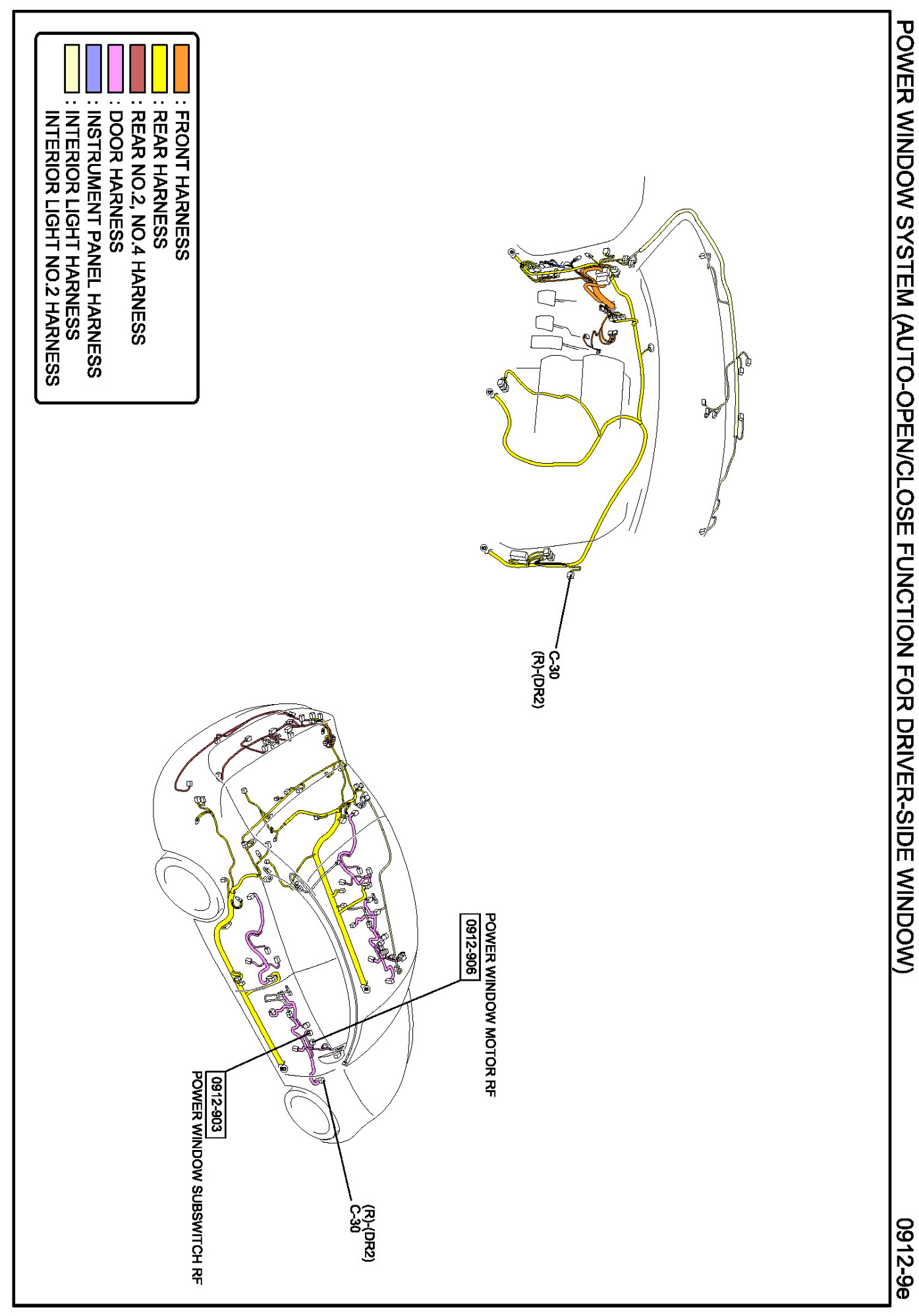

Routing View 0912-9e:

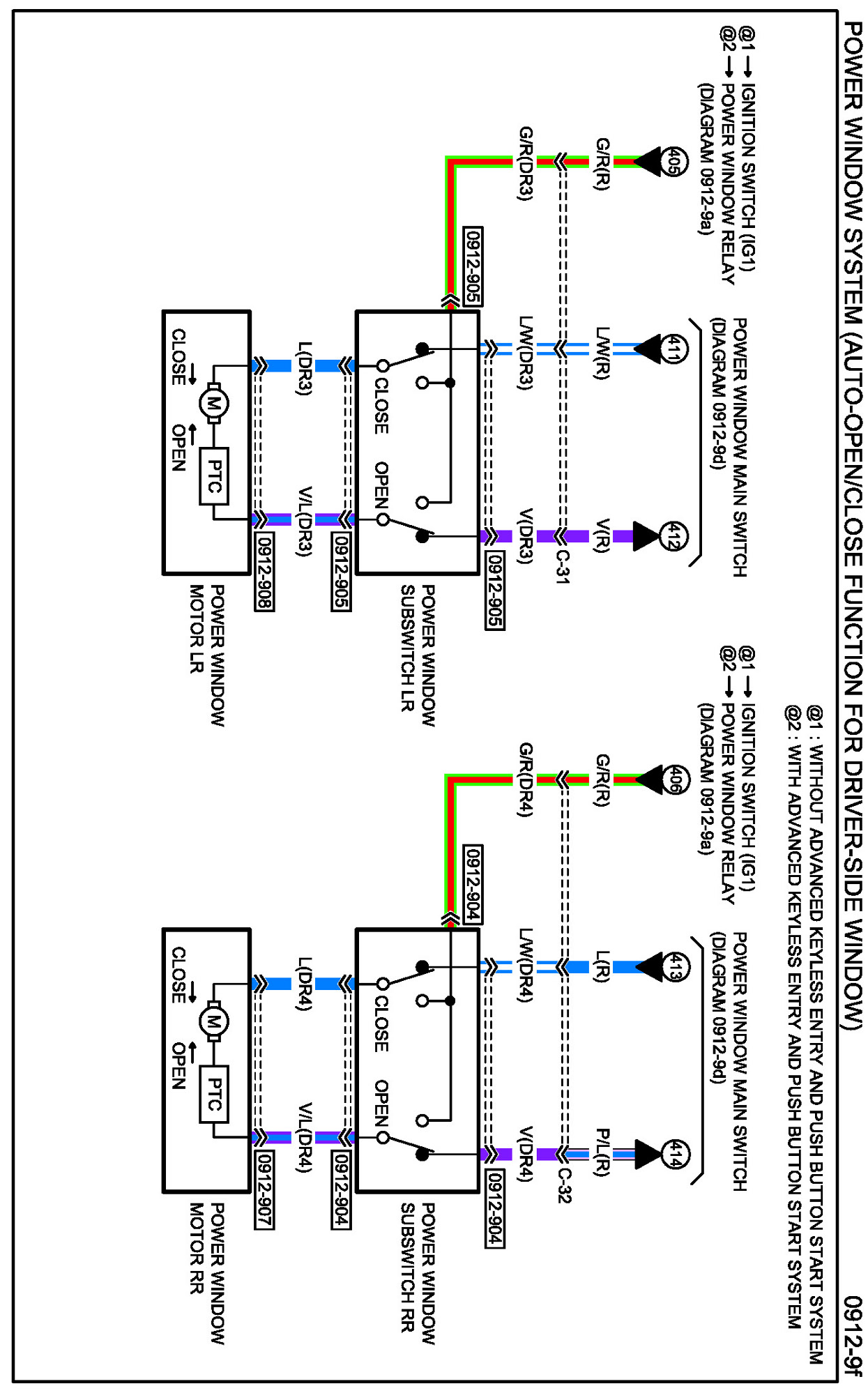

Diagram 0912-9f:

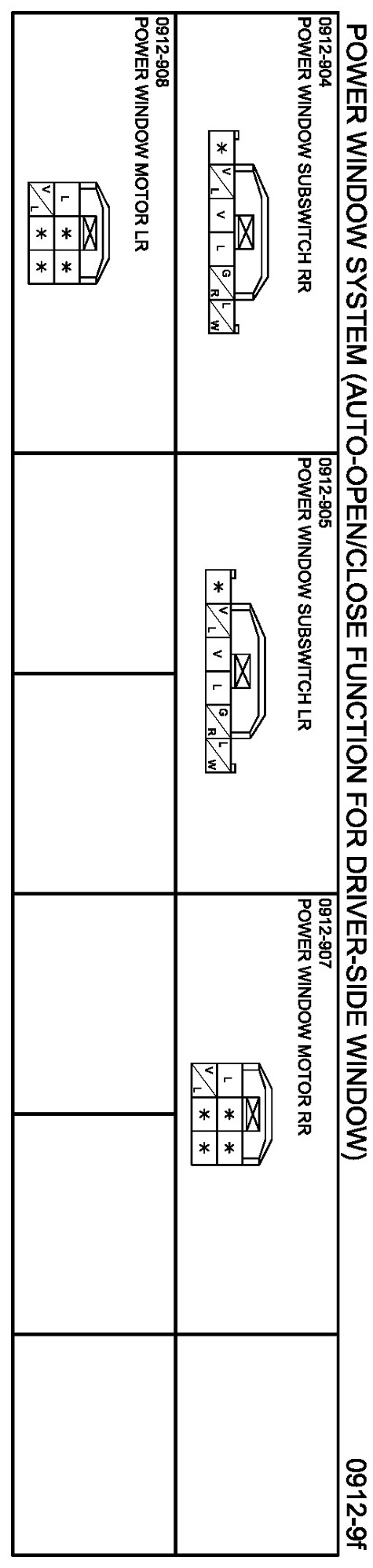

Connectors 0912-9f:

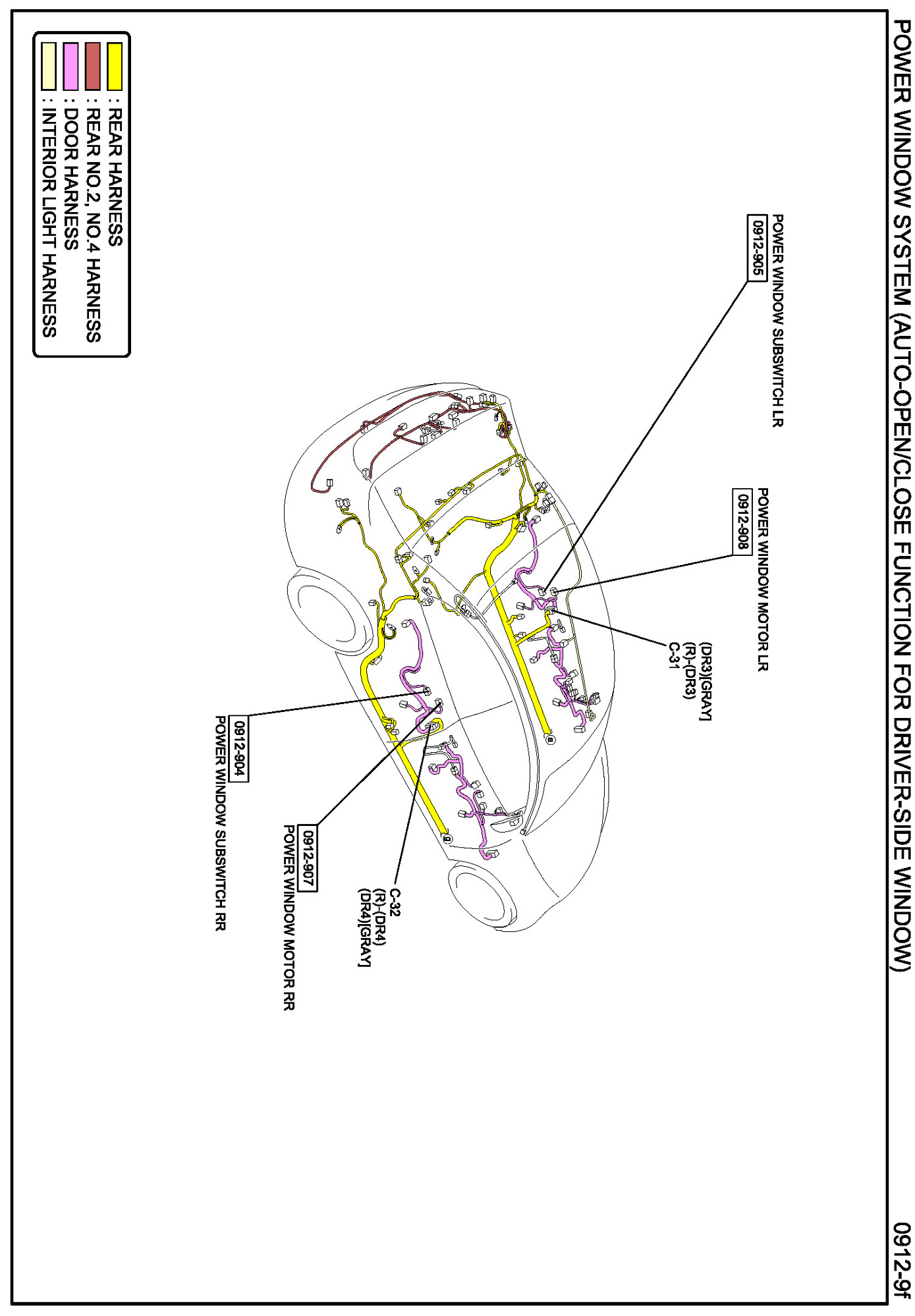

Routing View 0912-9f:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
