Power Window System (Auto-Open/Close Function For Front Window)

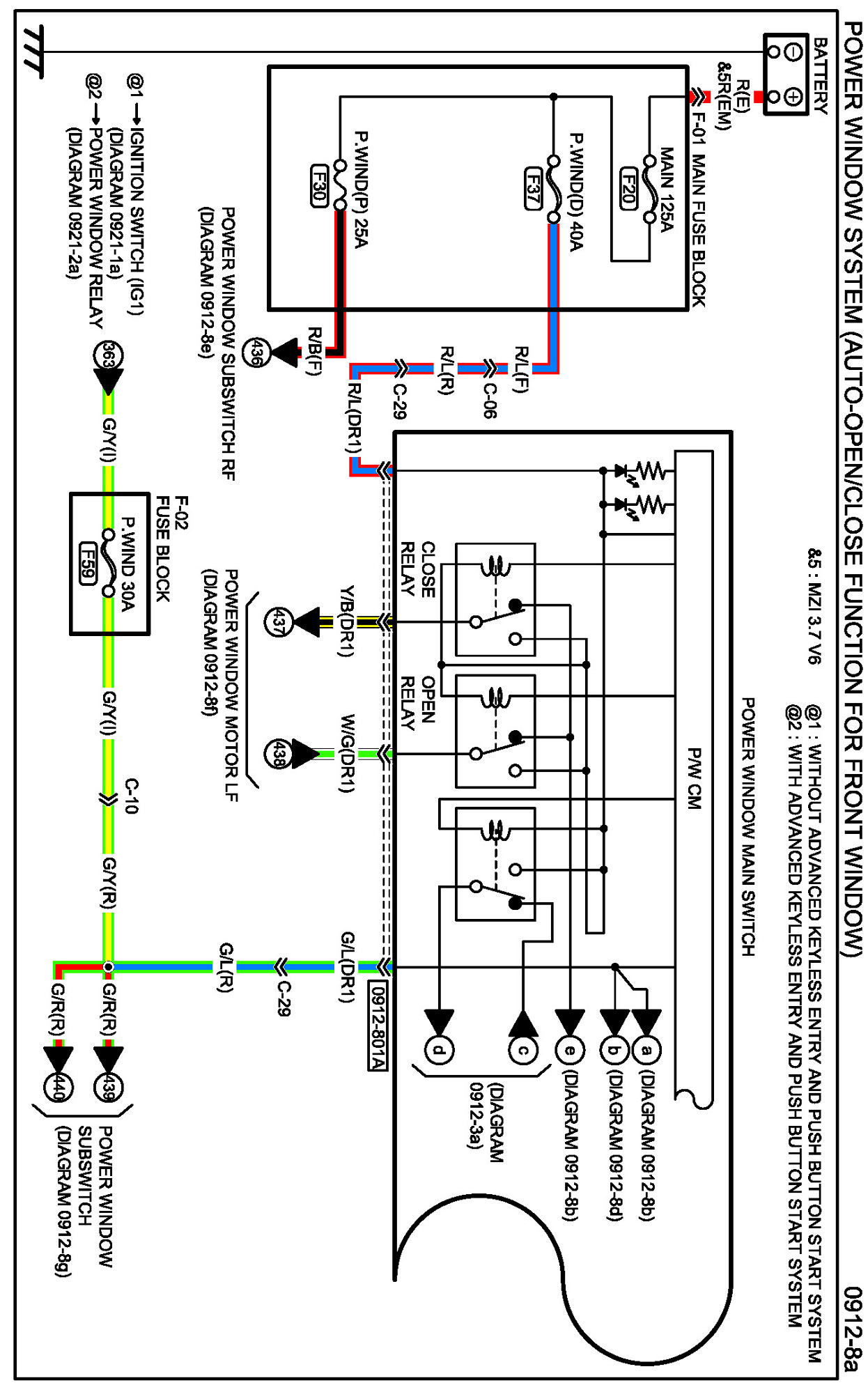

Diagram 0912-8a:

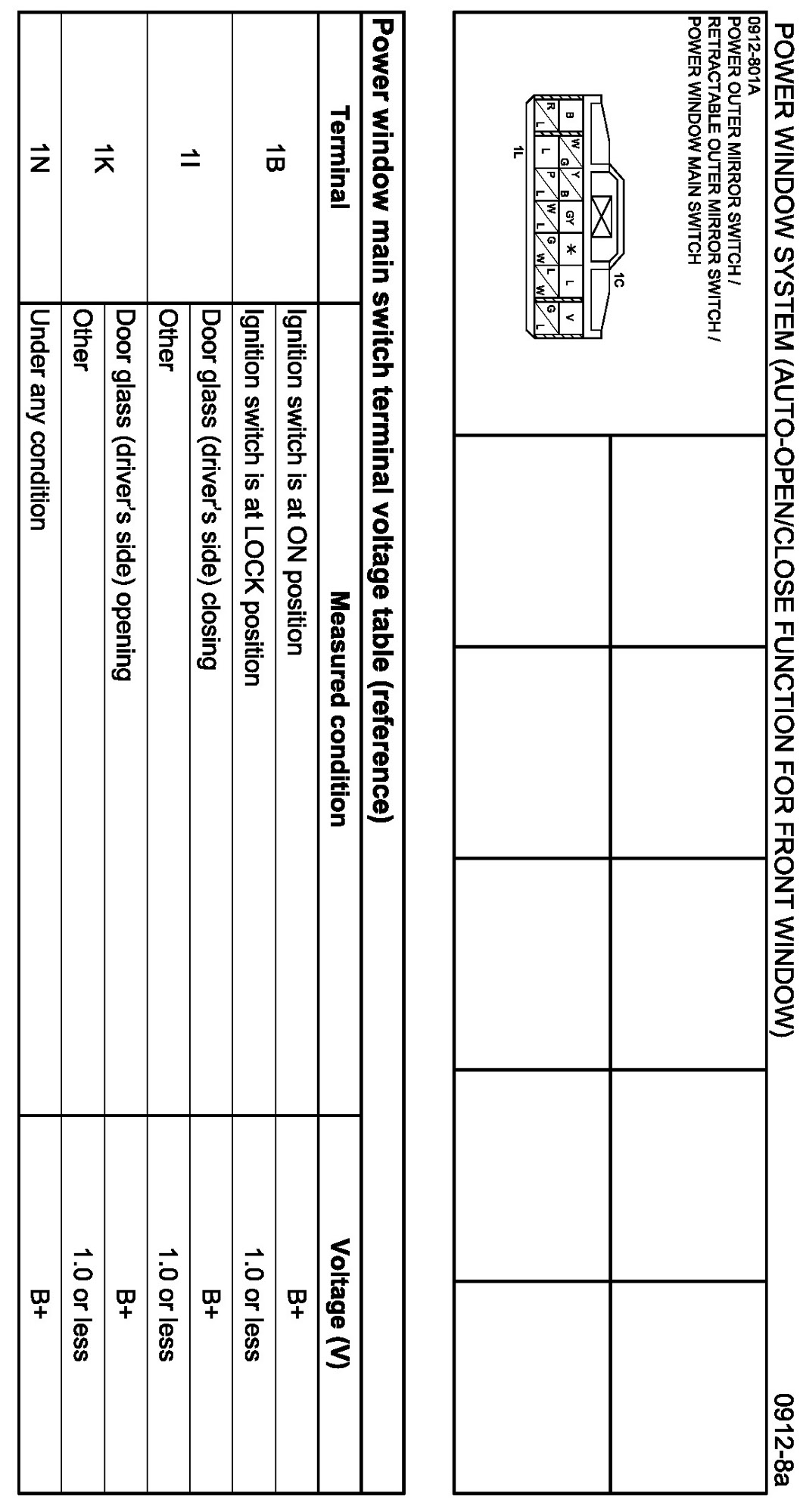

Connectors 0912-8a:

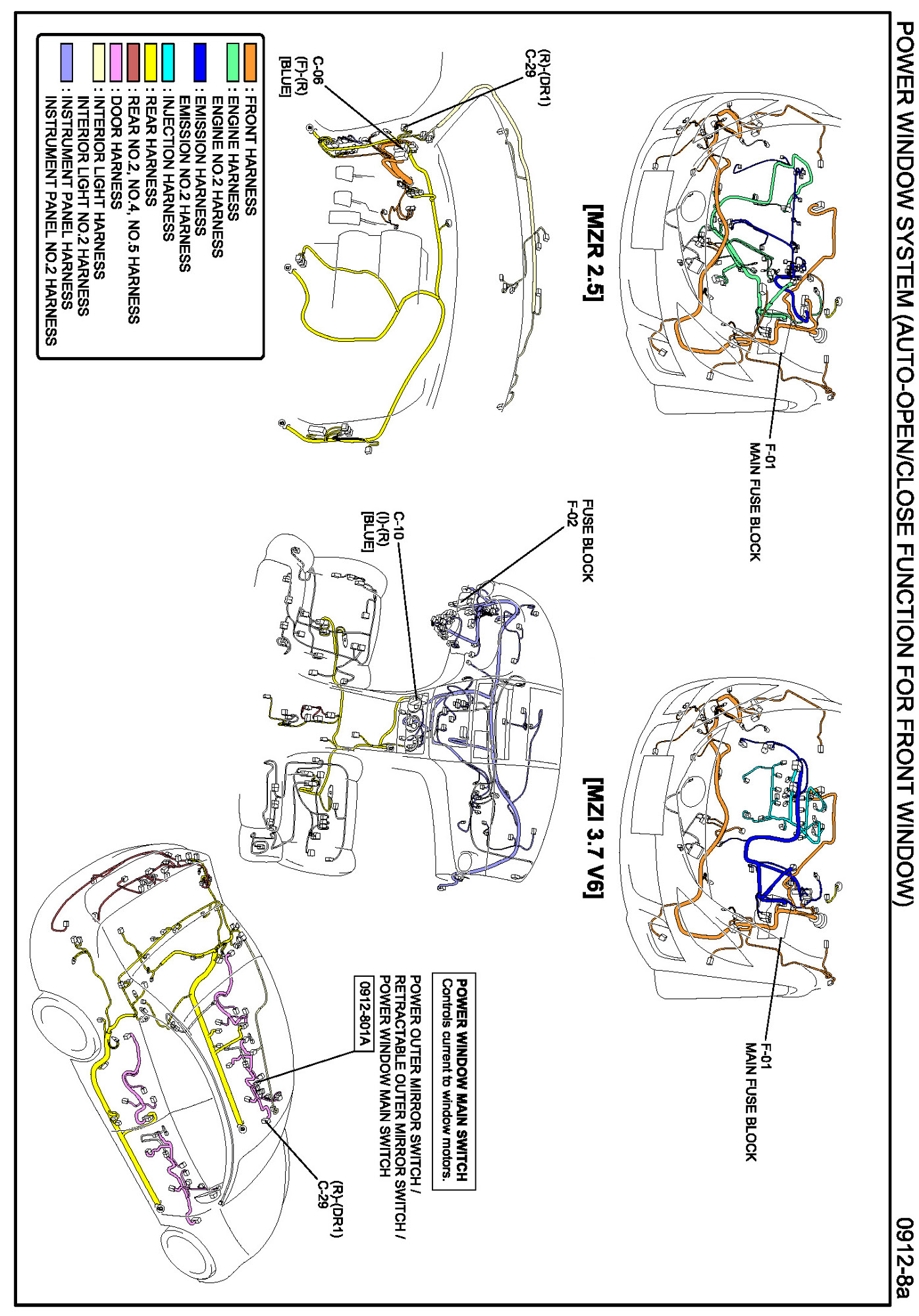

Routing View 0912-8a:

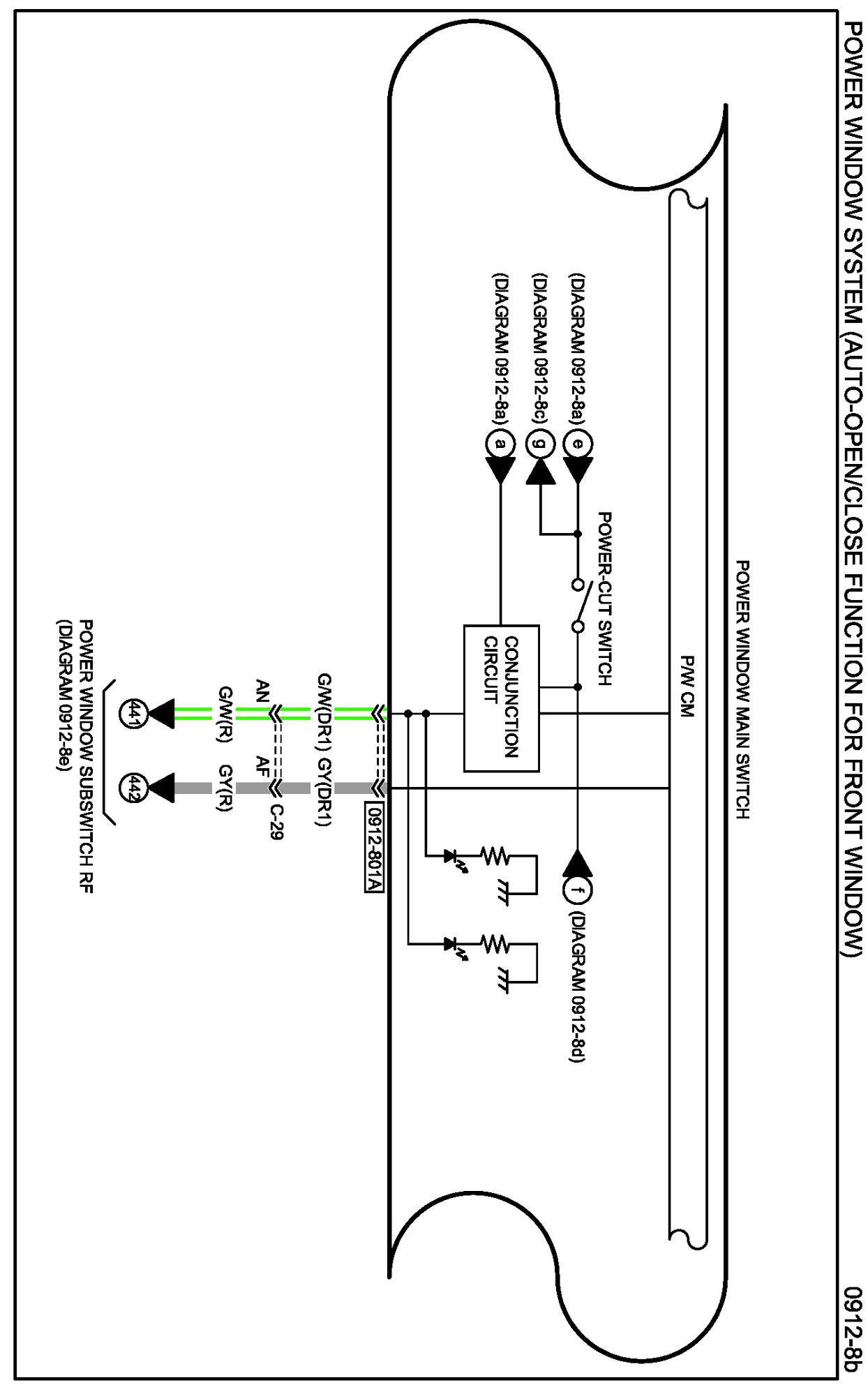

Diagram 0912-8b:

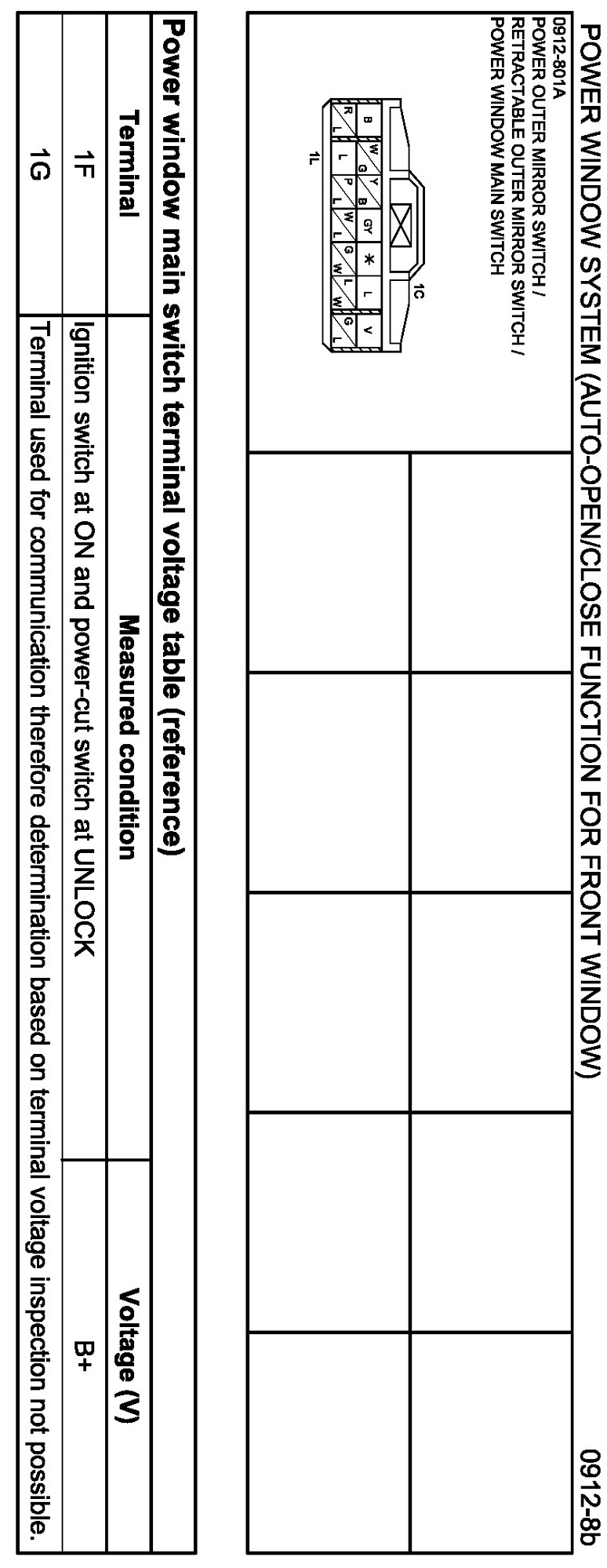

Connectors 0912-8b:

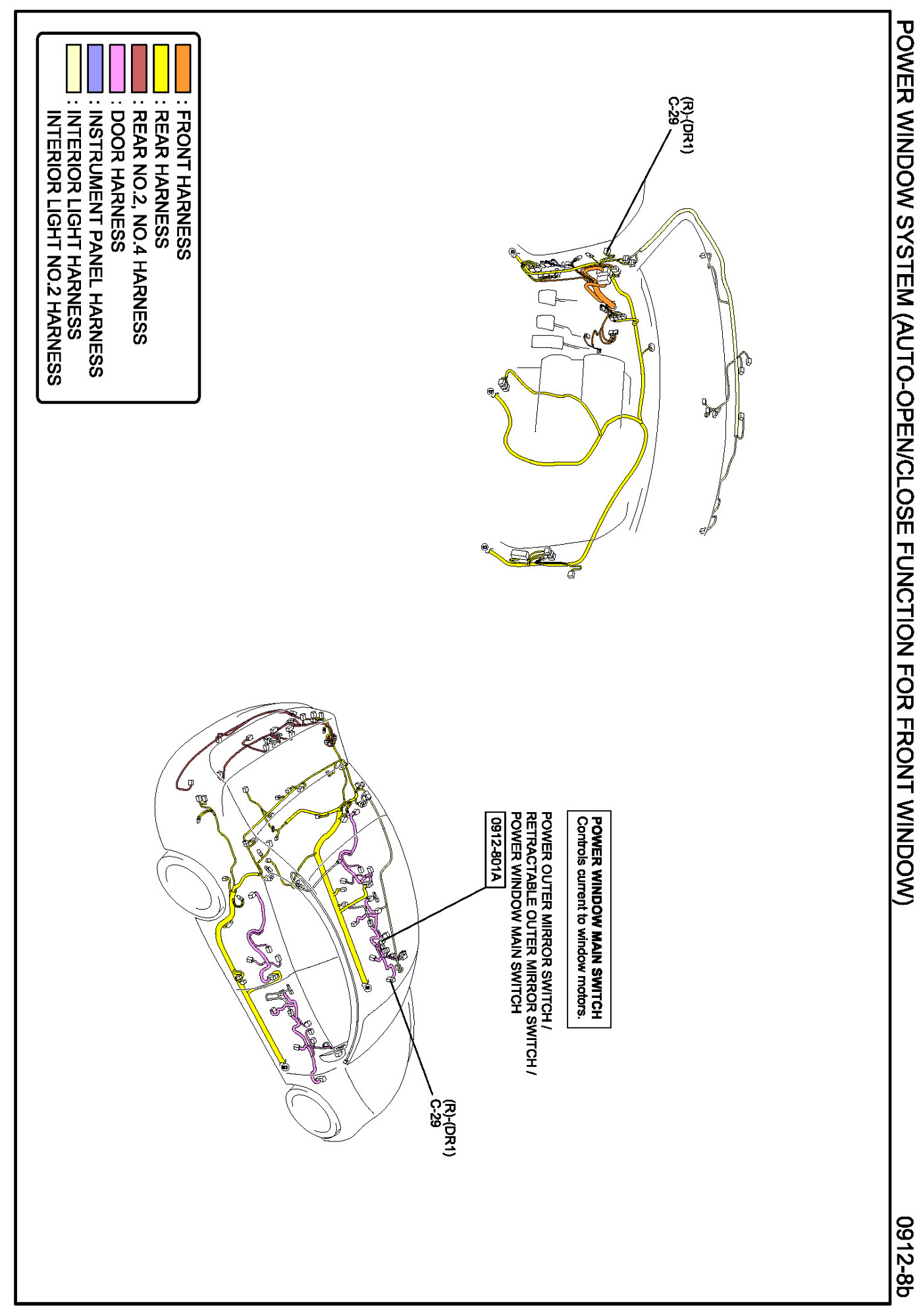

Routing View 0912-8b:

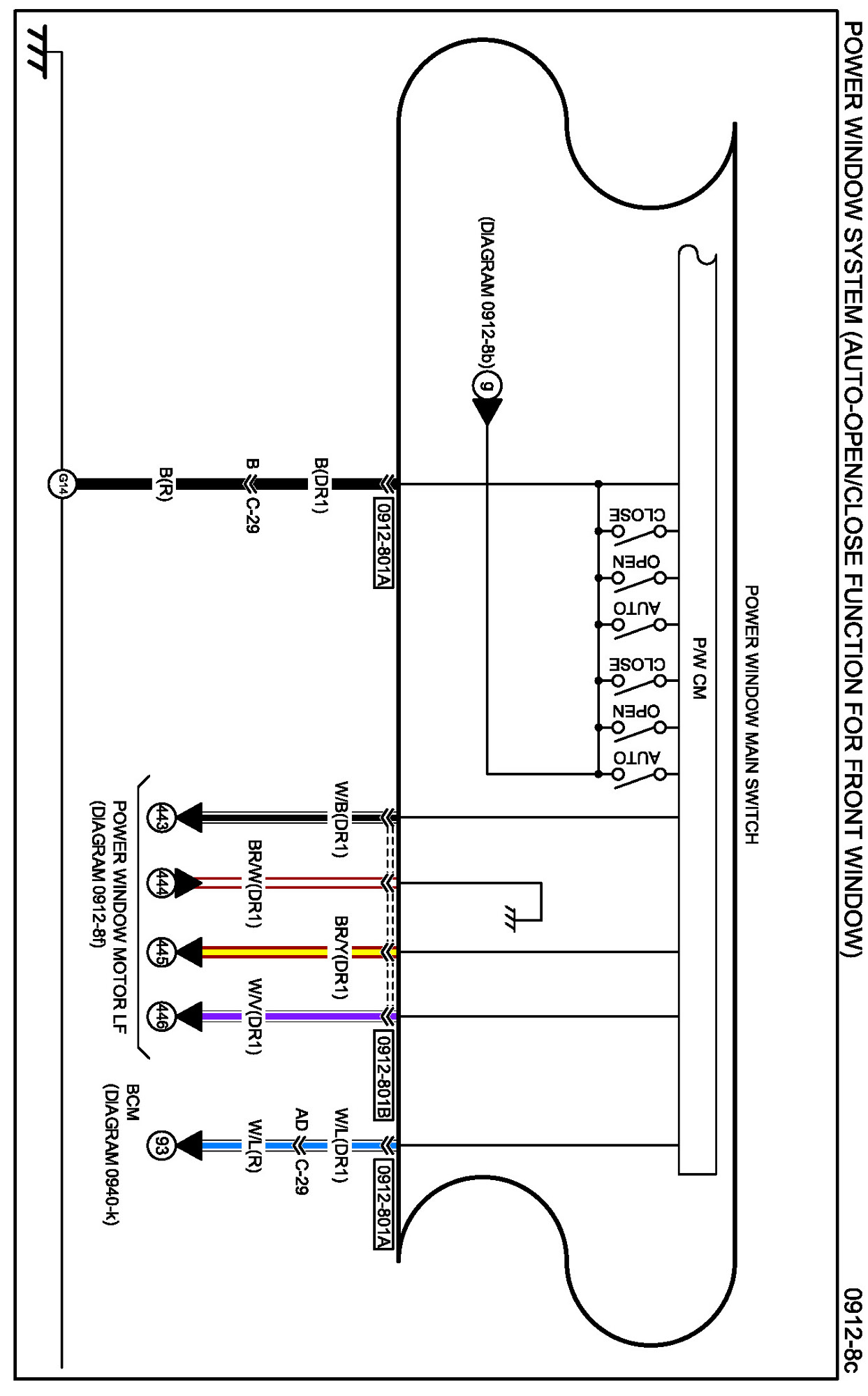

Diagram 0912-8c:

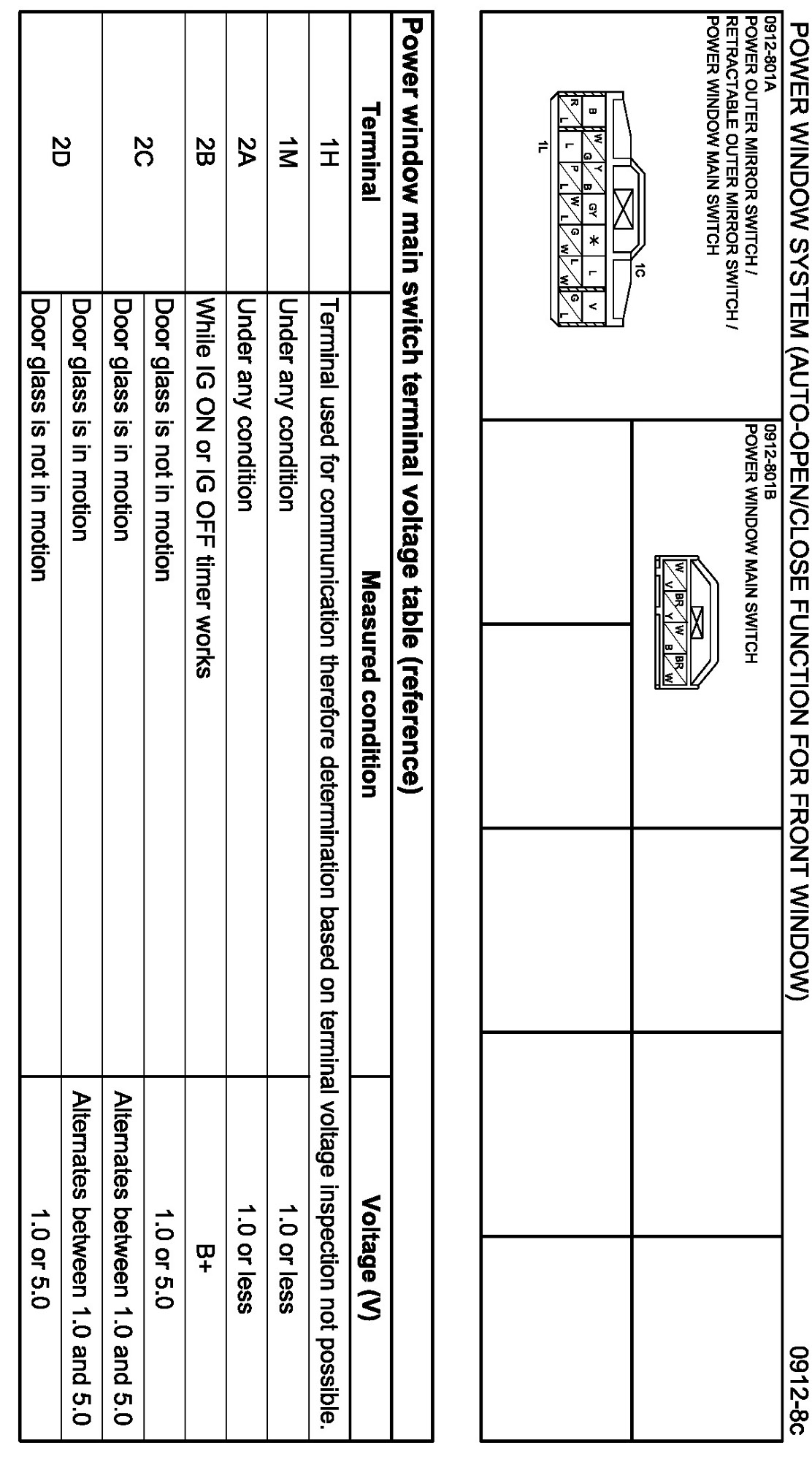

Connectors 0912-8c:

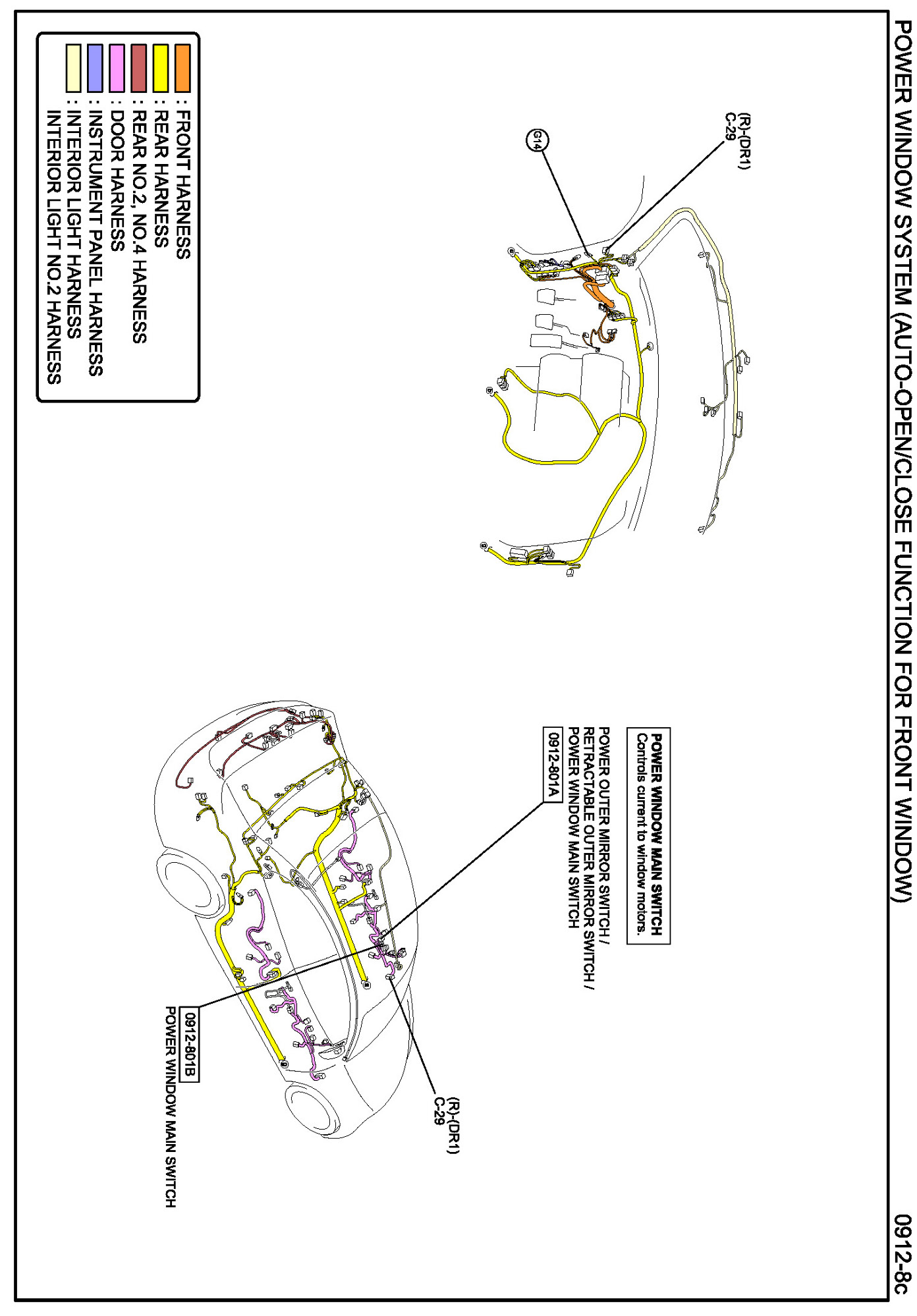

Routing View 0912-8c:

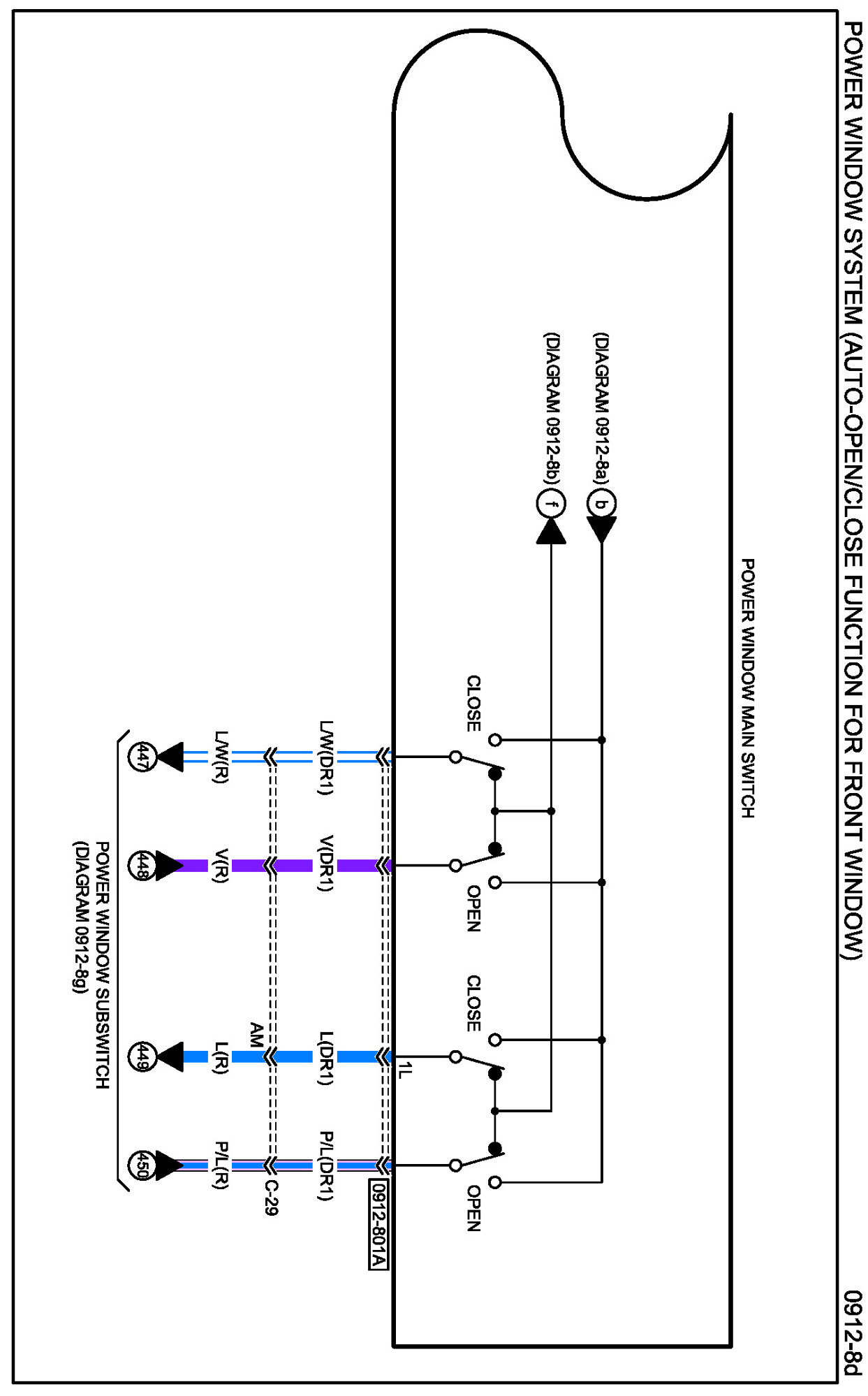

Diagram 0912-8d:

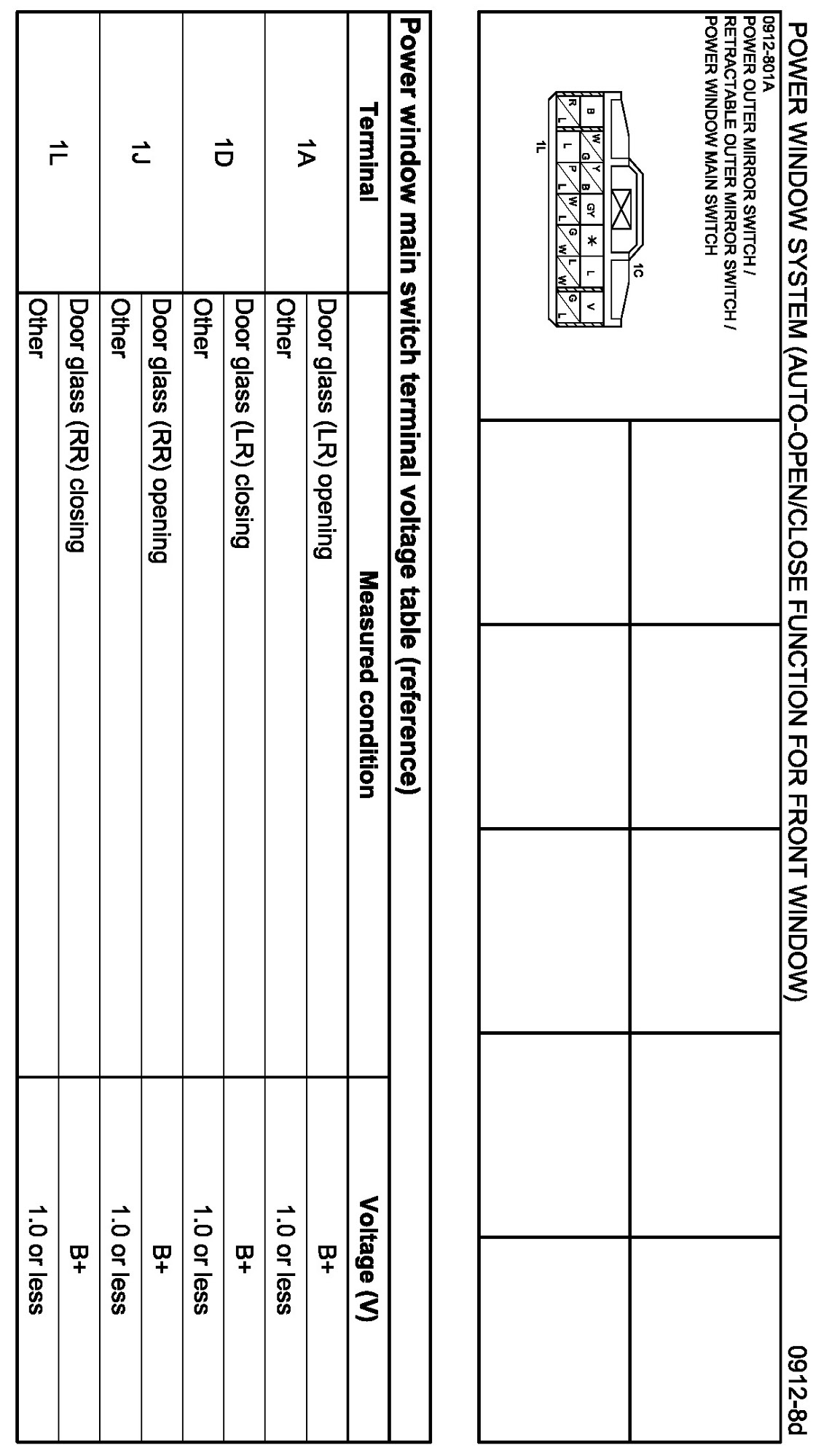

Connectors 0912-8d:

Routing View 0912-8d:

Diagram 0912-8e:

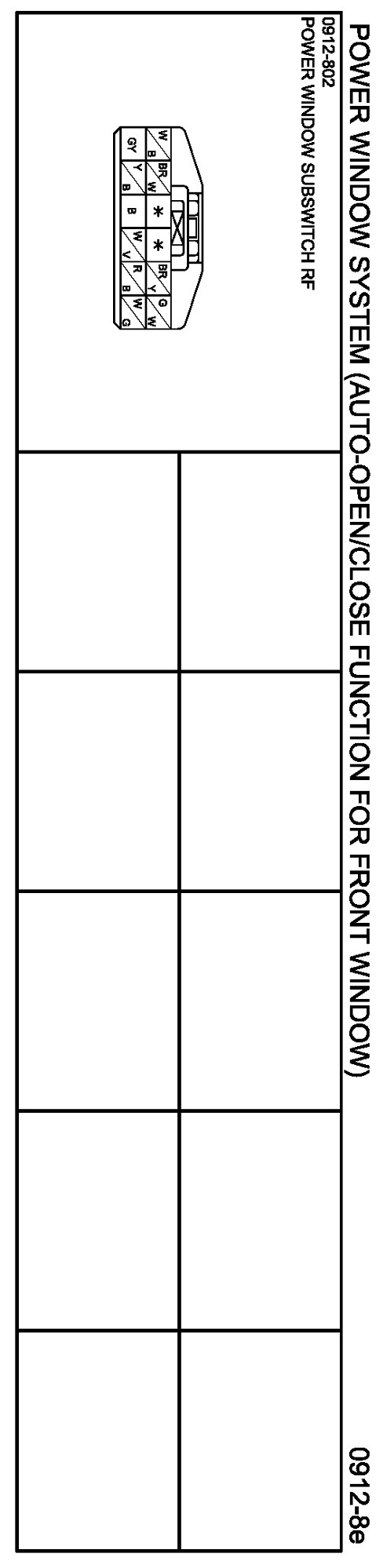

Connectors 0912-8e:

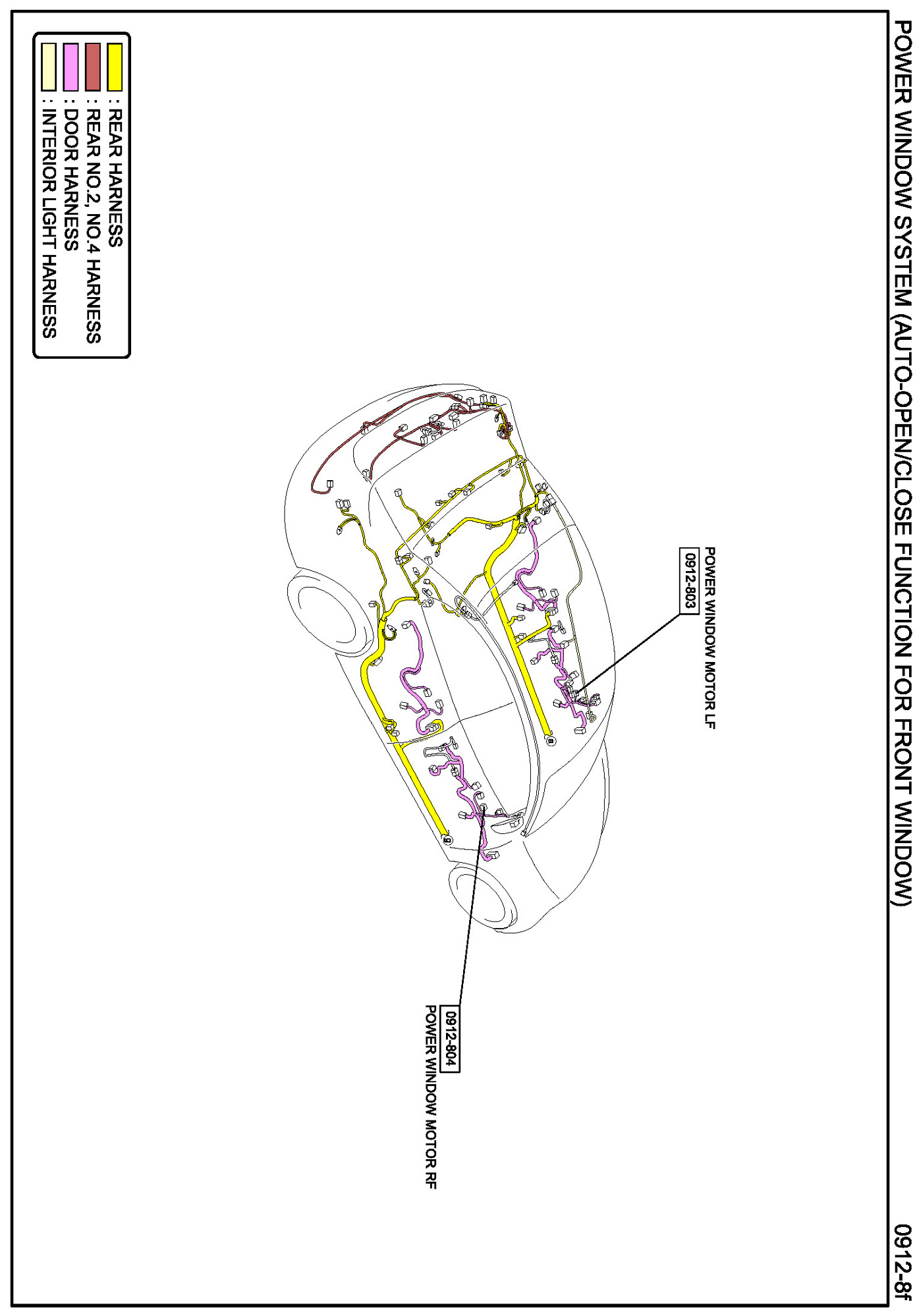

Routing View 0912-8e:

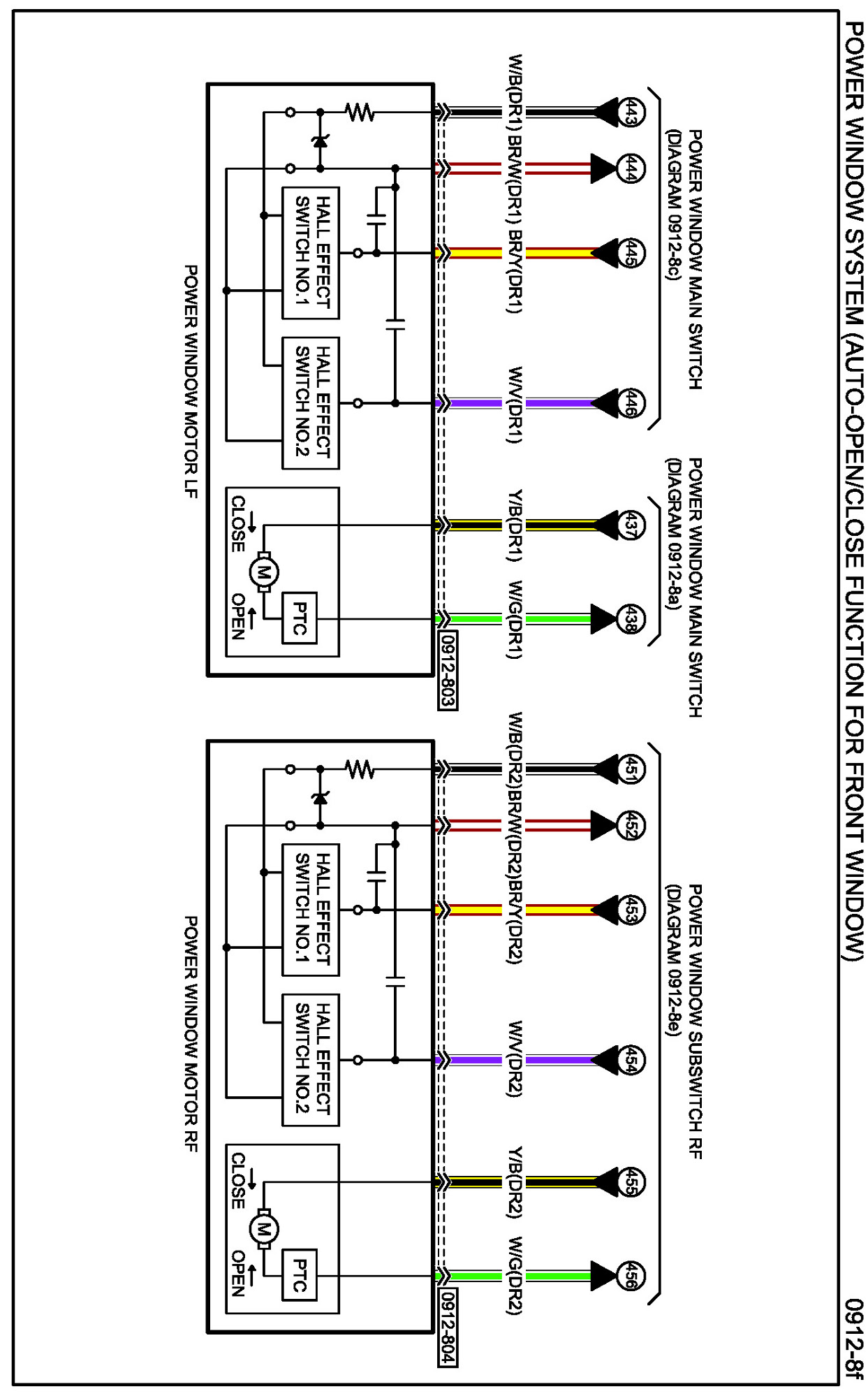

Diagram 0912-8f:

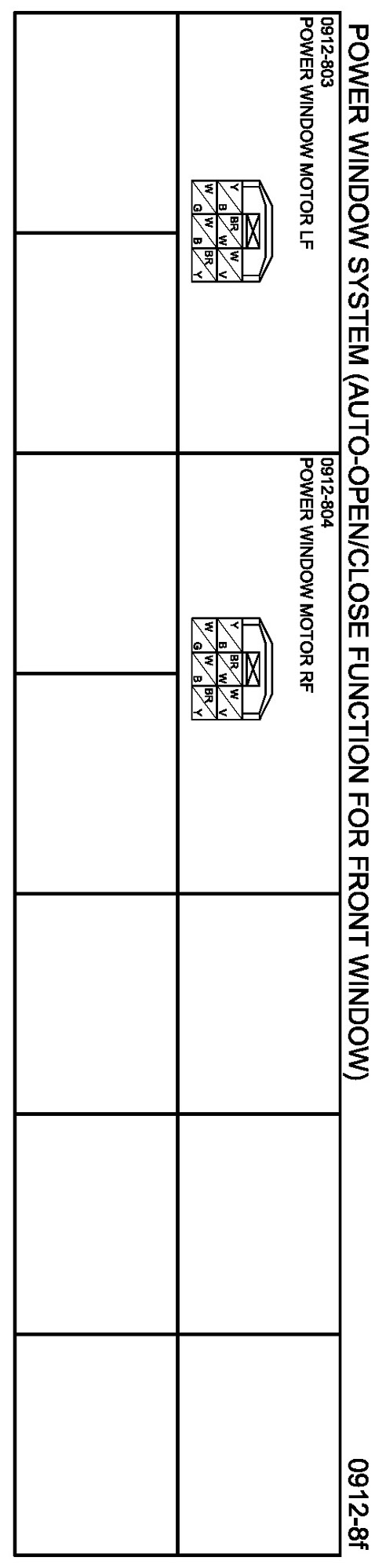

Connectors 0912-8f:

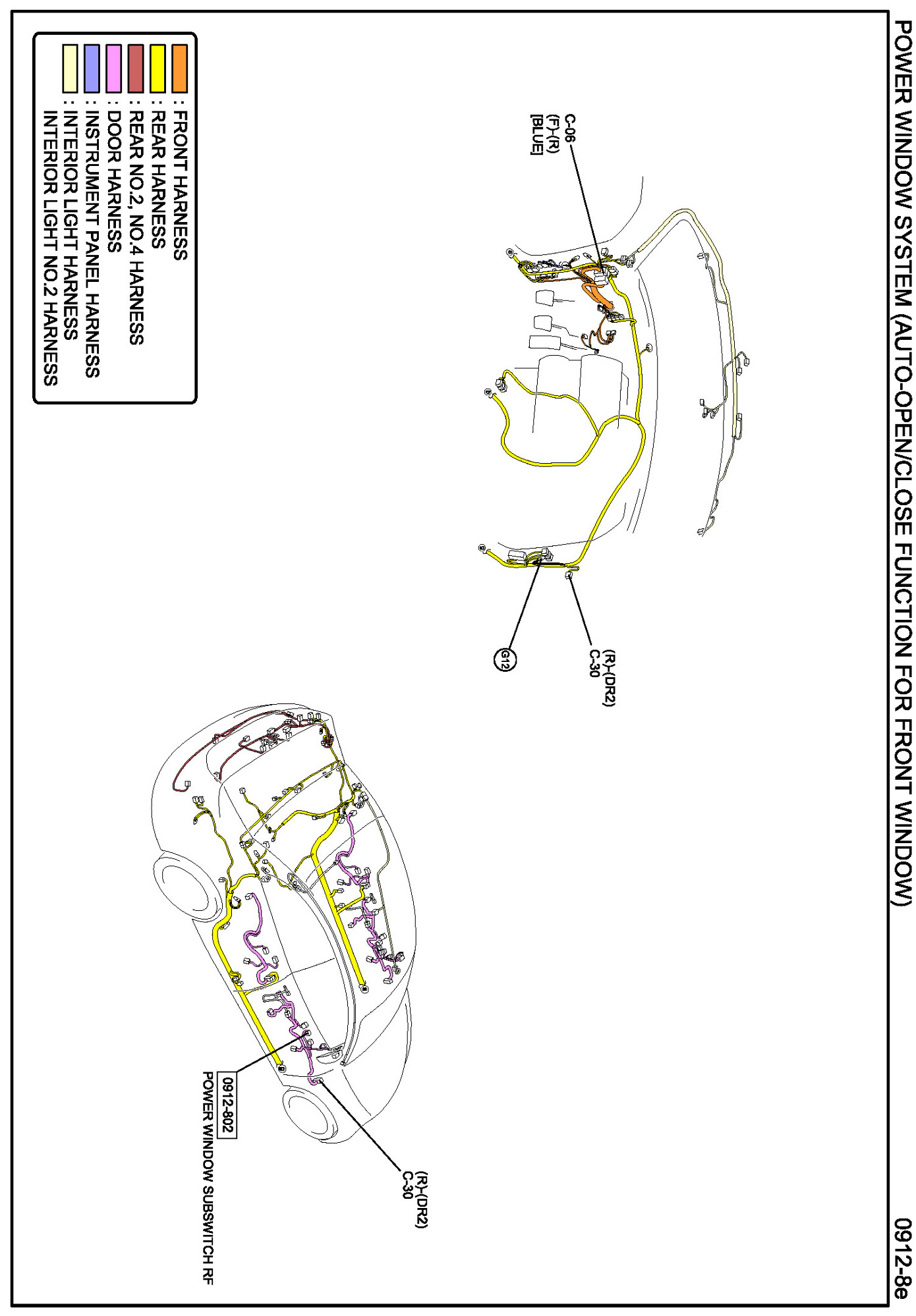

Routing View 0912-8f:

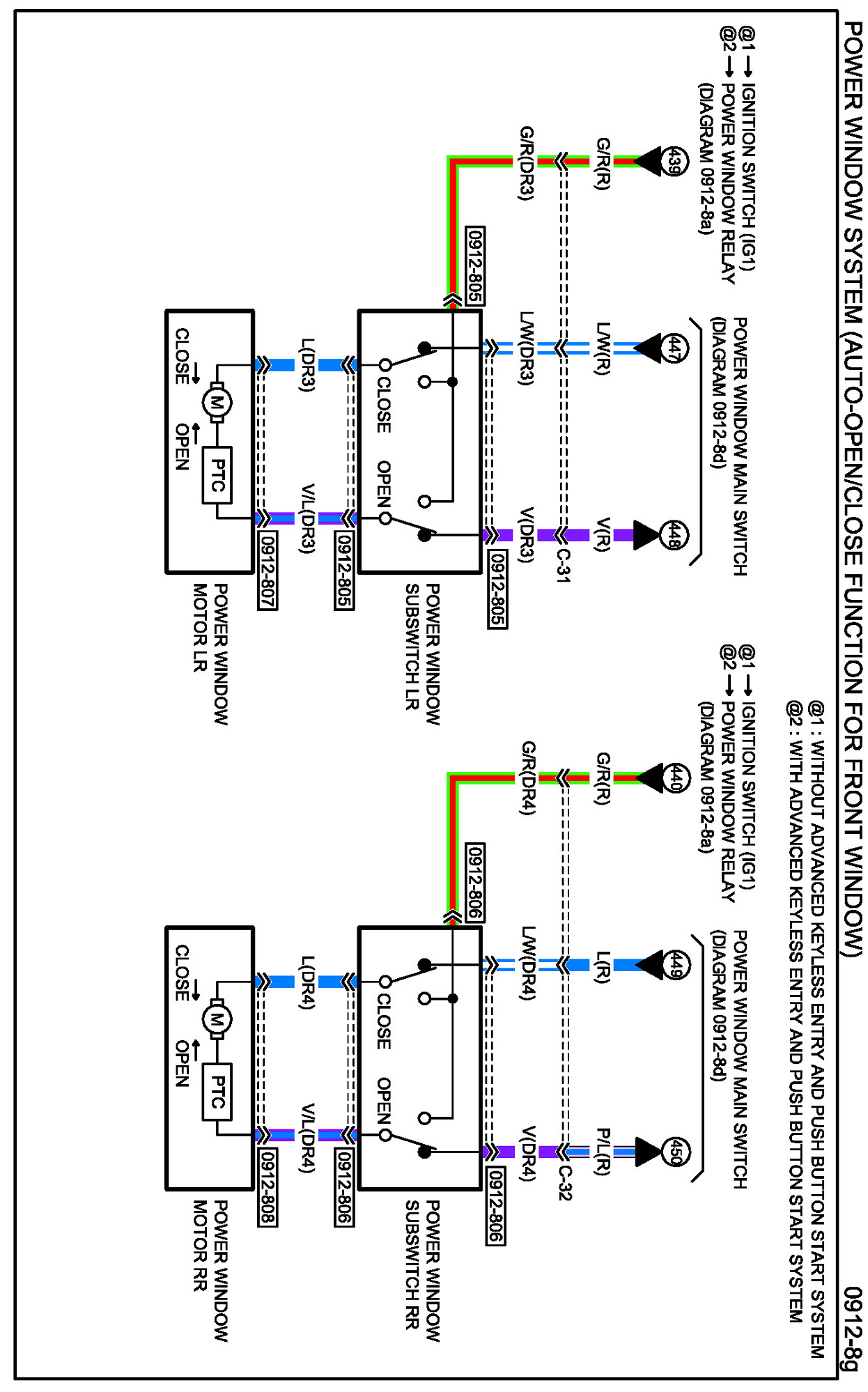

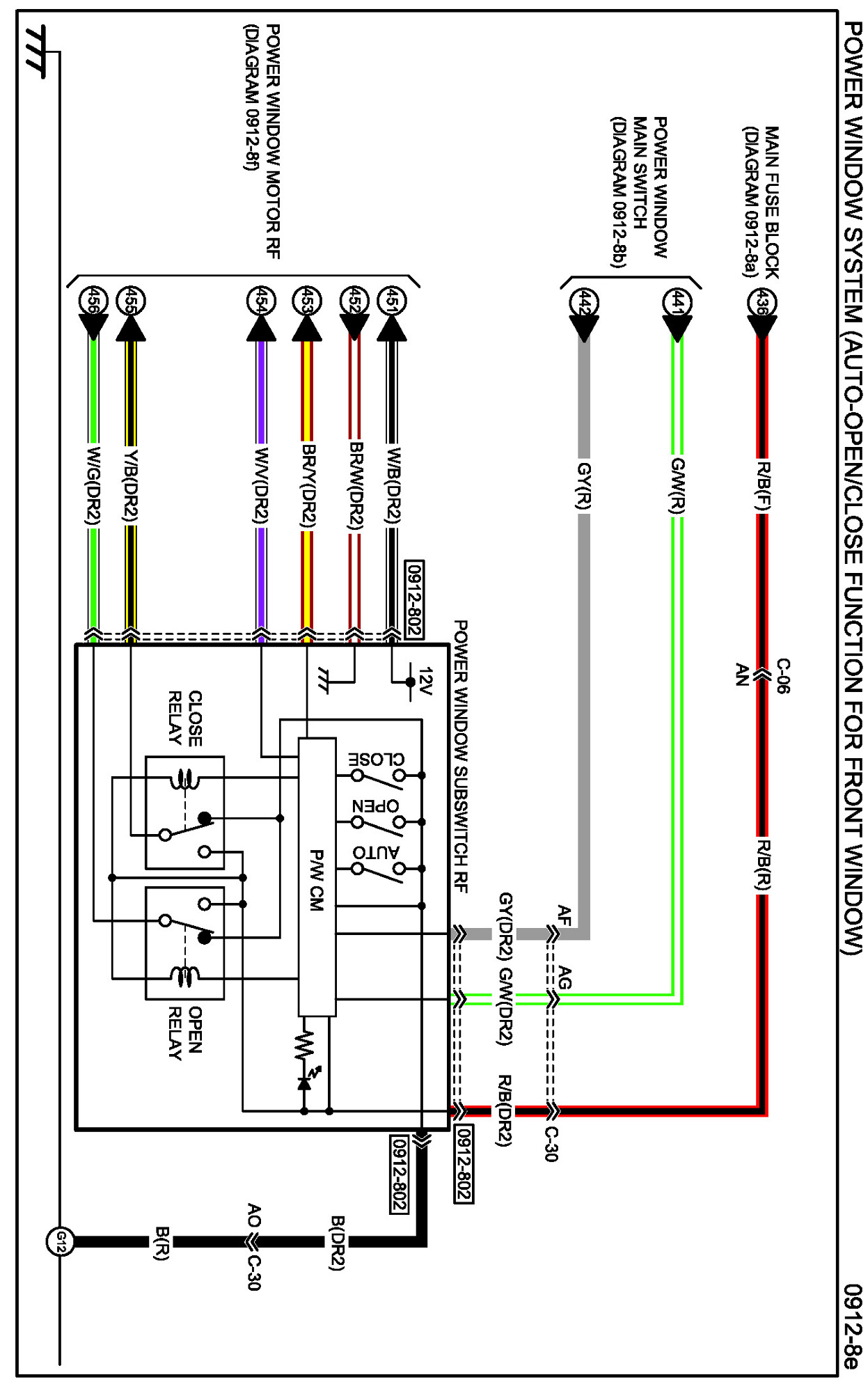

Diagram 0912-8g:

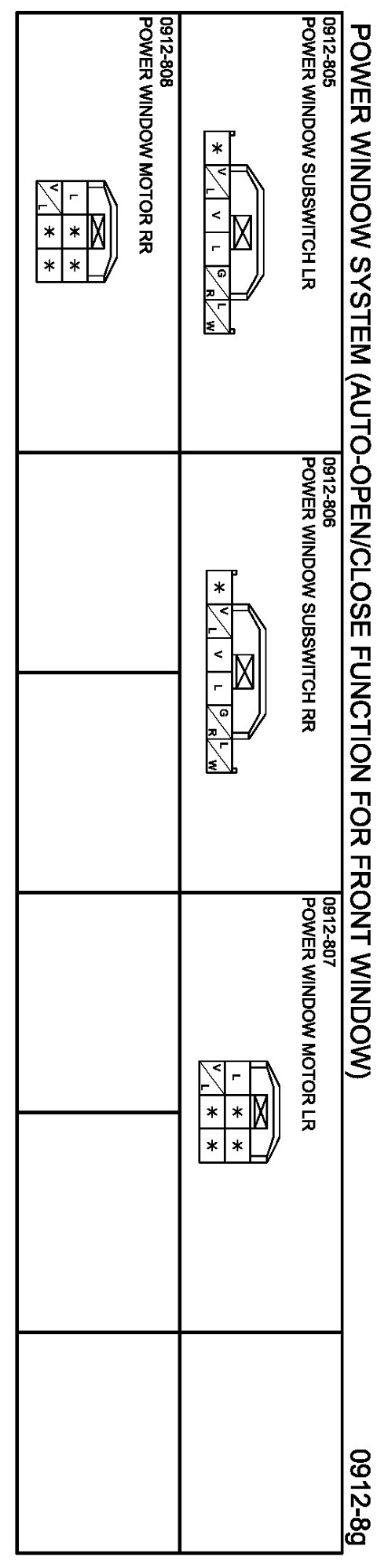

Connectors 0912-8g:

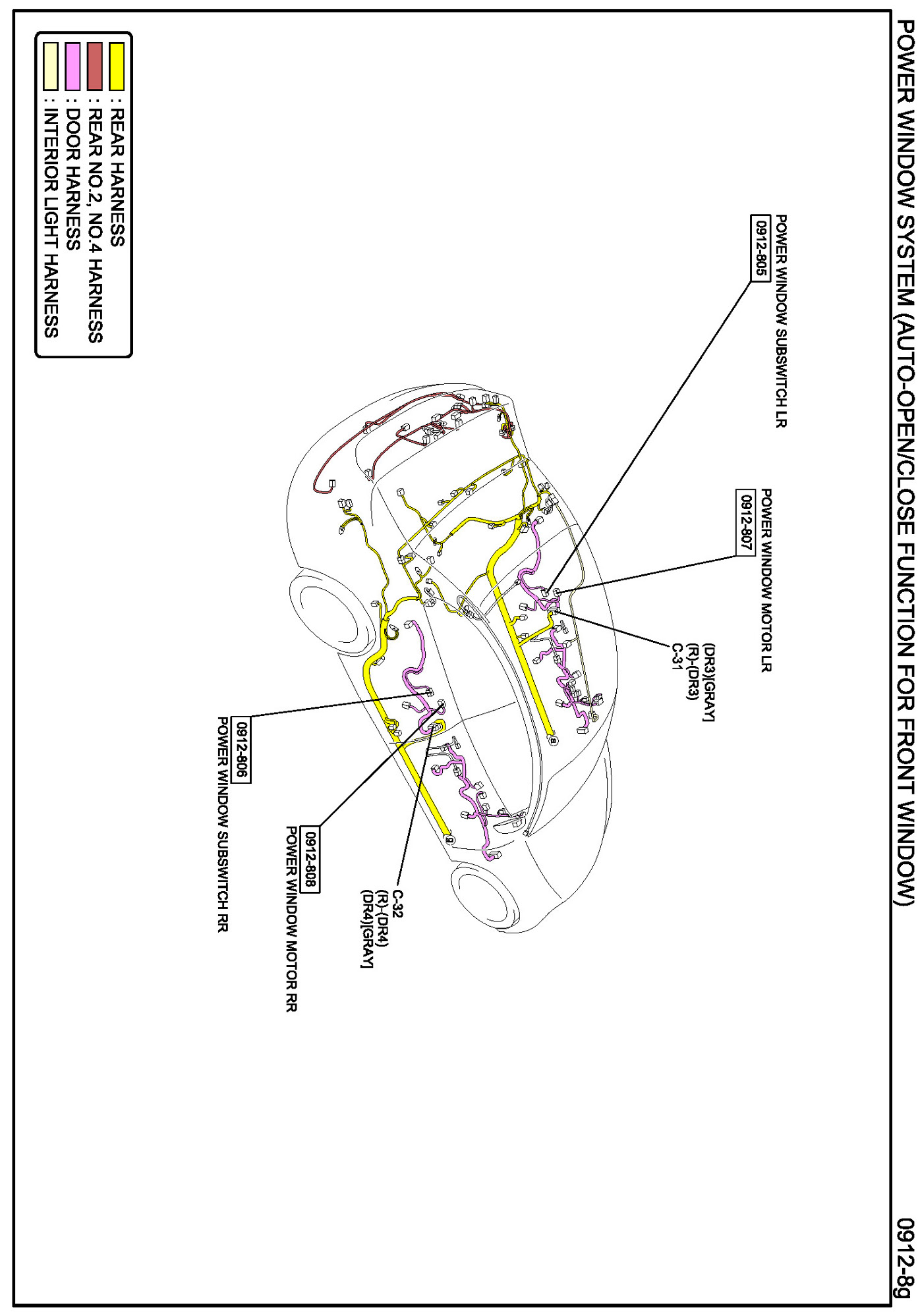

Routing View 0912-8g:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
