Relay Box: Service and Repair

RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

1. Disconnect the negative battery cable.

2. Remove the lower panel. Lower Panel Removal/Installation

3. Remove the knee bolster. Knee Bolster Removal/Installation

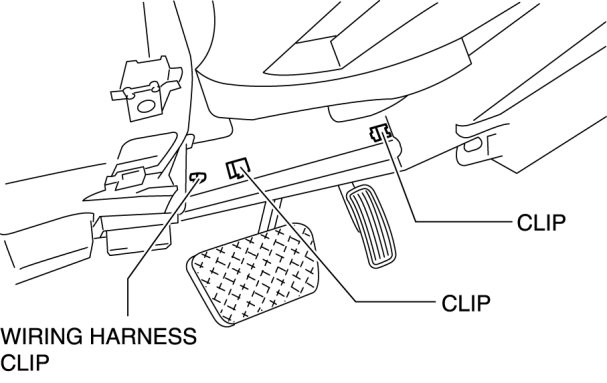

4. Remove the wiring harness clip.






5. Remove the clips.

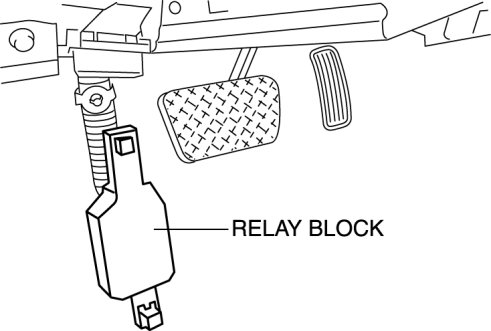

6. Remove the relay block.

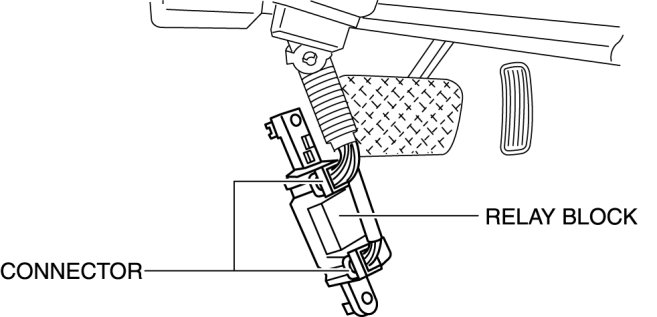

7. Disconnect the connectors.






8. Install in the reverse order of removal.
