Relay Block Inspection - With Advanced Keyless Entry And Push Button Start System

RELAY BLOCK INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

1. Disconnect the negative battery cable.

2. Remove the lower panel. Lower Panel Removal/Installation

3. Remove the knee bolster. Knee Bolster Removal/Installation

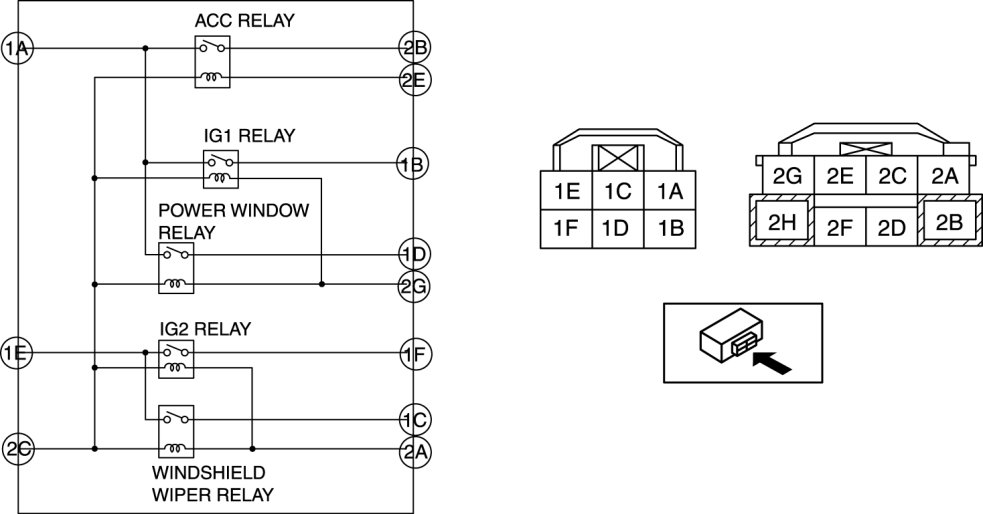

4. Remove the relay block. Service and Repair

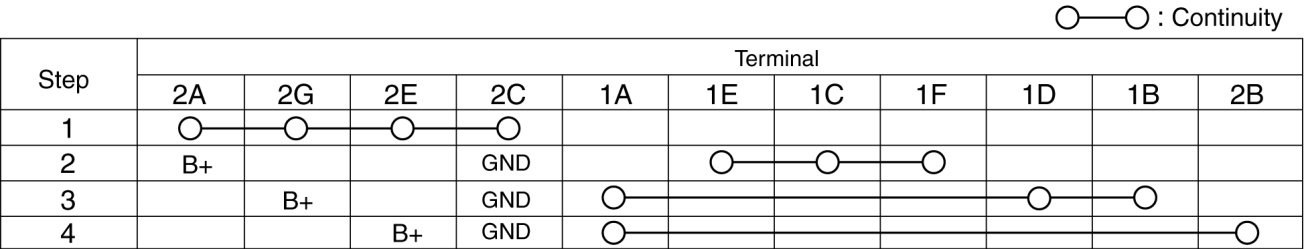

5. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the relay block.
