Manifold Pressure/Vacuum Sensor: Service and Repair

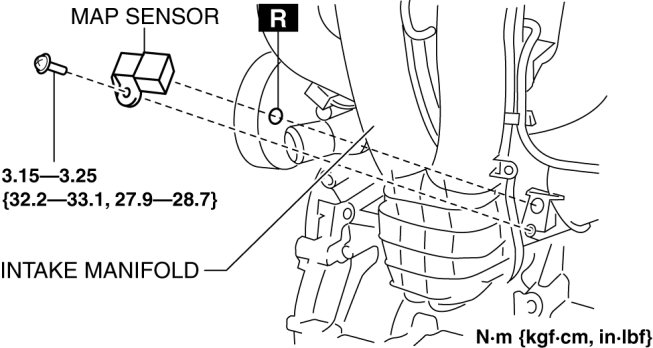

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [MZR 2.5]

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the plug hole plate. Service and Repair

3. Disconnect the MAP sensor connector.

4. Remove the MAP sensor.






5. Install in the reverse order of removal.
