Alignment

Ride Height

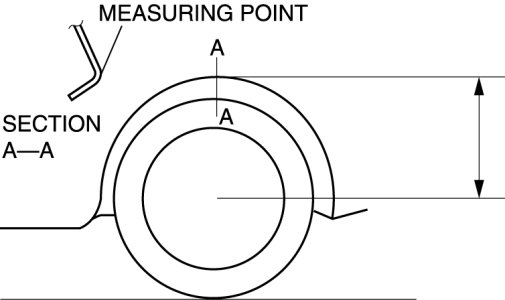

Measure the height from the center of the wheel to the fender brim. The difference between the left and right measurement must not exceed 10 mm {0.39 in}.

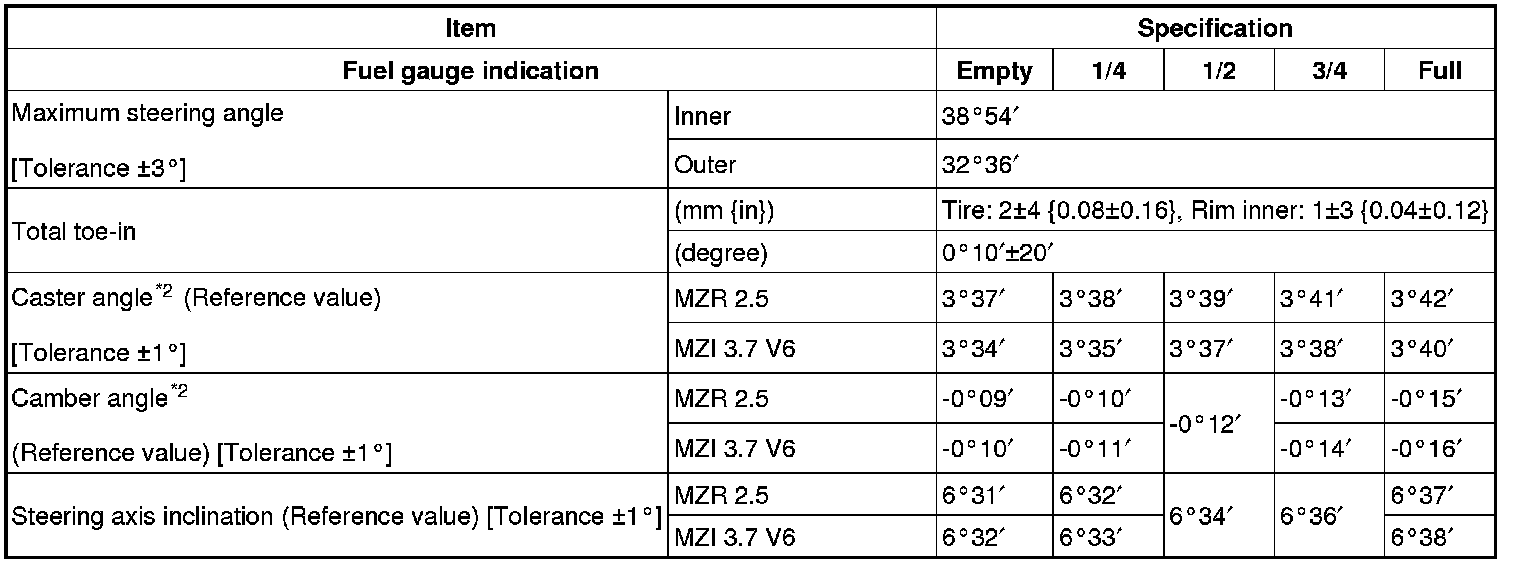

FRONT WHEEL ALIGNMENT

Specification (Unloaded)*1

Front wheel alignment





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.

*2
Difference between left and right must not exceed 1°30'.

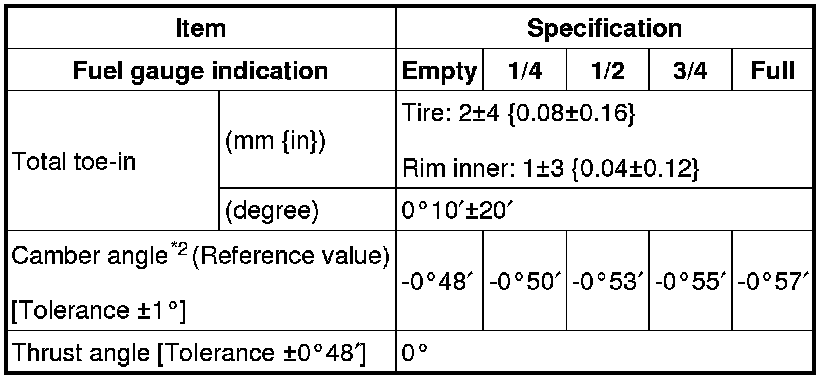

REAR WHEEL ALIGNMENT

Specification (Unloaded)*1

Rear wheel alignment





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.

*2
Difference between left and right must not exceed 1°30'.
