System Specifications
TRANSMISSION/TRANSAXLE TECHNICAL DATA
[FS5A-EL]

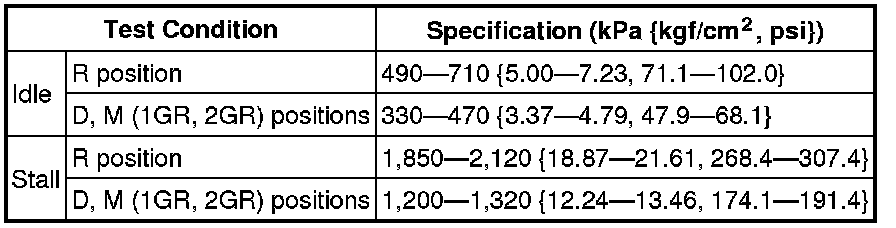

Line pressure

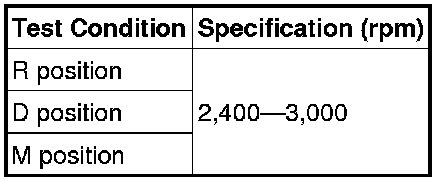

Stall speed

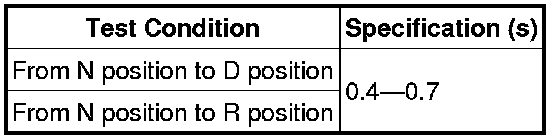

Time lag
